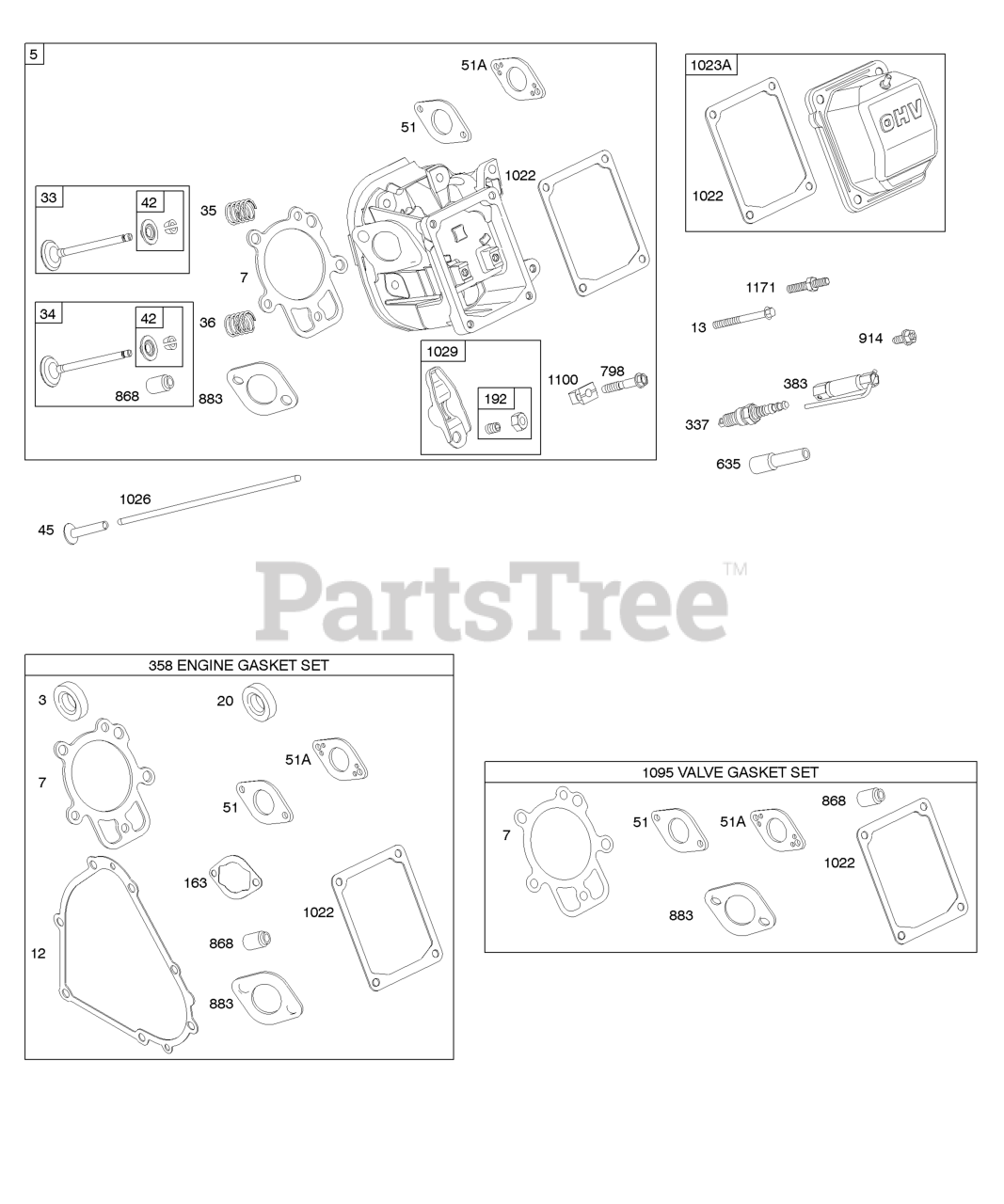

20X314-0110-E1 - Briggs & Stratton Horizontal Engine Cylinder Head, Gasket Set - Engine, Gasket Set - Valve, Valves Parts Diagram

Horizontal Engine

Cylinder Head, Gasket Set - Engine, Gasket Set - Valve, Valves Parts Diagram

  • Title
3

Briggs & Stratton 391086S

SEAL, Oil

Note: (Magneto Side)

$6.49

$

In Stock, Qty 20+

0

5

Briggs & Stratton 793305

Head-Cylinder
(Superseded to 799860)

$295.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 694872

GASKET, Cylinder Head

$20.99

$

In Stock, only 1 left!

0

12

Briggs & Stratton 694953

Gasket-Crankcase

$9.99

$

In Stock, only 1 left!

0

13

Briggs & Stratton 690360

SCREW
(Superseded to 84001963)

Note: (Cylinder Head)

$3.99

$

In Stock, Qty 20+

0

20

Briggs & Stratton 391086S

SEAL, Oil

Note: (PTO Side)

$6.49

$

In Stock, Qty 20+

0

33

Briggs & Stratton 499596

VALVE, Exhaust
(Superseded to 697576)

$43.99

$

In Stock, only 1 left!

0

34

Briggs & Stratton 795199

VALVE, Intake

$35.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 694865

SPRING, Valve

Note: (Intake)

$5.49

$

In Stock, only 2 left!

0

36

Briggs & Stratton 694865

SPRING, Valve

Note: (Exhaust)

$5.49

$

In Stock, only 2 left!

0

42

Briggs & Stratton 499586

KEEPER, Valve

$7.49

$

In Stock, Qty 18

0

45

Briggs & Stratton 690977

TAPPET, Valve

$7.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 694874

Gasket-Intake

$4.99

$

In Stock, only 1 left!

0

51A

Briggs & Stratton 694875

Gasket-Intake

$4.49

$

In Stock, only 1 left!

0

163

Briggs & Stratton 692277

Gasket-Air Cleaner

$6.99

$

In Stock, only 4 left!

0

192

Briggs & Stratton 690083

ADJUSTER. Rocker Arm

$11.99

$

In Stock, only 1 left!

0

337

$6.49

$

In Stock, Qty 20+

0

358

Briggs & Stratton 795201

Gasket Set-Engine

$70.99

$

In Stock, only 3 left!

0

383

Briggs & Stratton 19374S

Wrench-Spark Plug
(Superseded to 19576S)

$5.99

$

In Stock, only 1 left!

0

635

Briggs & Stratton 691909

BOOT, Spark Plug

$4.99

$

In Stock, Qty 5

0

798

Briggs & Stratton 697890

SCREW

Note: (Rocker Arm)

$3.49

$

In Stock, Qty 7

0

868

$11.99

$

In Stock, only 1 left!

0

883

Briggs & Stratton 695398

GASKET, Exhaust

$7.99

$

In Stock, Qty 8

0

914

Briggs & Stratton 693732

Screw

Note: (Rocker Cover)

$2.49

$

Usually ships in 2-12 days

0

1022

Briggs & Stratton 690971

GASKET, Rocker Cover

$7.49

$

In Stock, Qty 20+

0

1023A

$26.99

$

Usually ships in 2-12 days

0

1026

Briggs & Stratton 695177

Rod-Push
(Superseded to 592673)

$8.99

$

In Stock, Qty 20+

0

1029

$12.99

$

In Stock, Qty 11

0

1095

Briggs & Stratton 795200

Gasket Set-Valve

$74.99

$

Usually ships in 2-12 days

0

1100

Briggs & Stratton 791959

PIVOT, Rocker Arm

$6.99

$

In Stock, only 2 left!

0

1171

Briggs & Stratton 696754

Stud

Note: (Rocker Cover)

$5.99

$

Usually ships in 2-12 days

0
