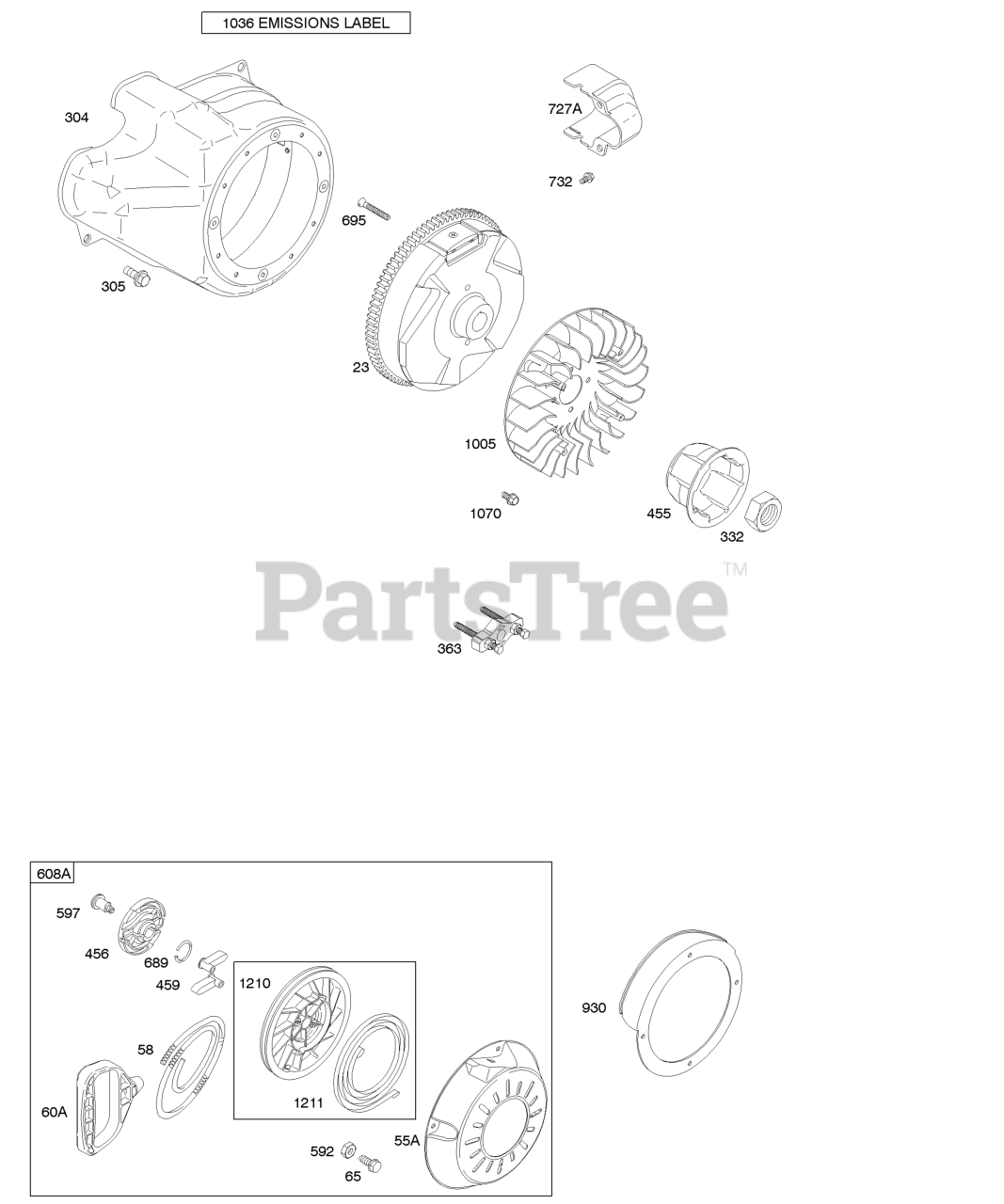

20X314-0110-E1 - Briggs & Stratton Horizontal Engine Blower Housing/Shrouds, Flywheel, Rewind Starter Parts Diagram

Horizontal Engine

Blower Housing/Shrouds, Flywheel, Rewind Starter Parts Diagram

  • Title
23

Briggs & Stratton 695485

Flywheel
(Superseded to 794812)

$

$

Not available

55A

Briggs & Stratton 696710

Housing-Rewind Starter

$45.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 693389

ROPE, Starter (Cut To Required Length)

Note: (Cut To Required Length)

$9.49

$

In Stock, only 2 left!

0

60A

Briggs & Stratton 699334

GRIP, Starter Rope

$13.99

$

In Stock, only 1 left!

0

65

Briggs & Stratton 697725

SCREW

Note: (Rewind Starter)

$4.99

$

Usually ships in 2-12 days

0

304

Briggs & Stratton 791478

Housing-Blower
(Superseded to 795699)

$90.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 691108

SCREW

Note: (Blower Housing)

$3.49

$

In Stock, Qty 20+

0

332

Briggs & Stratton 694685

Nut

Note: (Flywheel)

$6.99

$

In Stock, only 1 left!

0

363

Briggs & Stratton 19203

PULLER, Flywheel

$23.99

$

In Stock, only 1 left!

0

455

$10.99

$

Usually ships in 2-12 days

0

456

Briggs & Stratton 692299

Plate-Pawl Friction

$4.99

$

In Stock, only 3 left!

0

459

$3.49

$

In Stock, Qty 9

0

592

Briggs & Stratton 690800

Nut

Note: (Rewind Starter)

$3.99

$

In Stock, Qty 13

0

597

Briggs & Stratton 691696

Screw

Note: (Pawl Friction Plate)

$11.99

$

In Stock, Qty 5

0

608A

Briggs & Stratton 699335

Starter-Rewind

$87.99

$

In Stock, Qty 7

0

689

Briggs & Stratton 691855

SPRING, Friction

$4.49

$

In Stock, only 2 left!

0

695

Briggs & Stratton 698807

Screw

Note: (Ring Gear)

$3.99

$

In Stock, only 4 left!

0

727A

Briggs & Stratton 697465

COVER, Starter Drive

$7.99

$

Usually ships in 2-12 days

0

732

Briggs & Stratton 691097

Screw

Note: (Starter Drive Cover)

$3.99

$

Usually ships in 2-12 days

0

930

$

$

Not available

1005

Briggs & Stratton 694684

Fan-Flywheel
(Superseded to 794815)

$17.99

$

In Stock, only 2 left!

0

1036

Label-Emissions

Note: (Available From A Briggs & Stratton Authorized Dealer)

$

$

Not available

1070

Briggs & Stratton 691058

Screw

Note: (Flywheel Fan)

$5.99

$

In Stock, Qty 11

0

1210

Briggs & Stratton 498144

Pulley/Spring Assembly

Note: (Pulley) (Pulley)

$19.99

$

In Stock, Qty 20+

0

1211

Briggs & Stratton 498144

Pulley/Spring Assembly

Note: (Spring) (Spring)

$19.99

$

In Stock, Qty 20+

0
