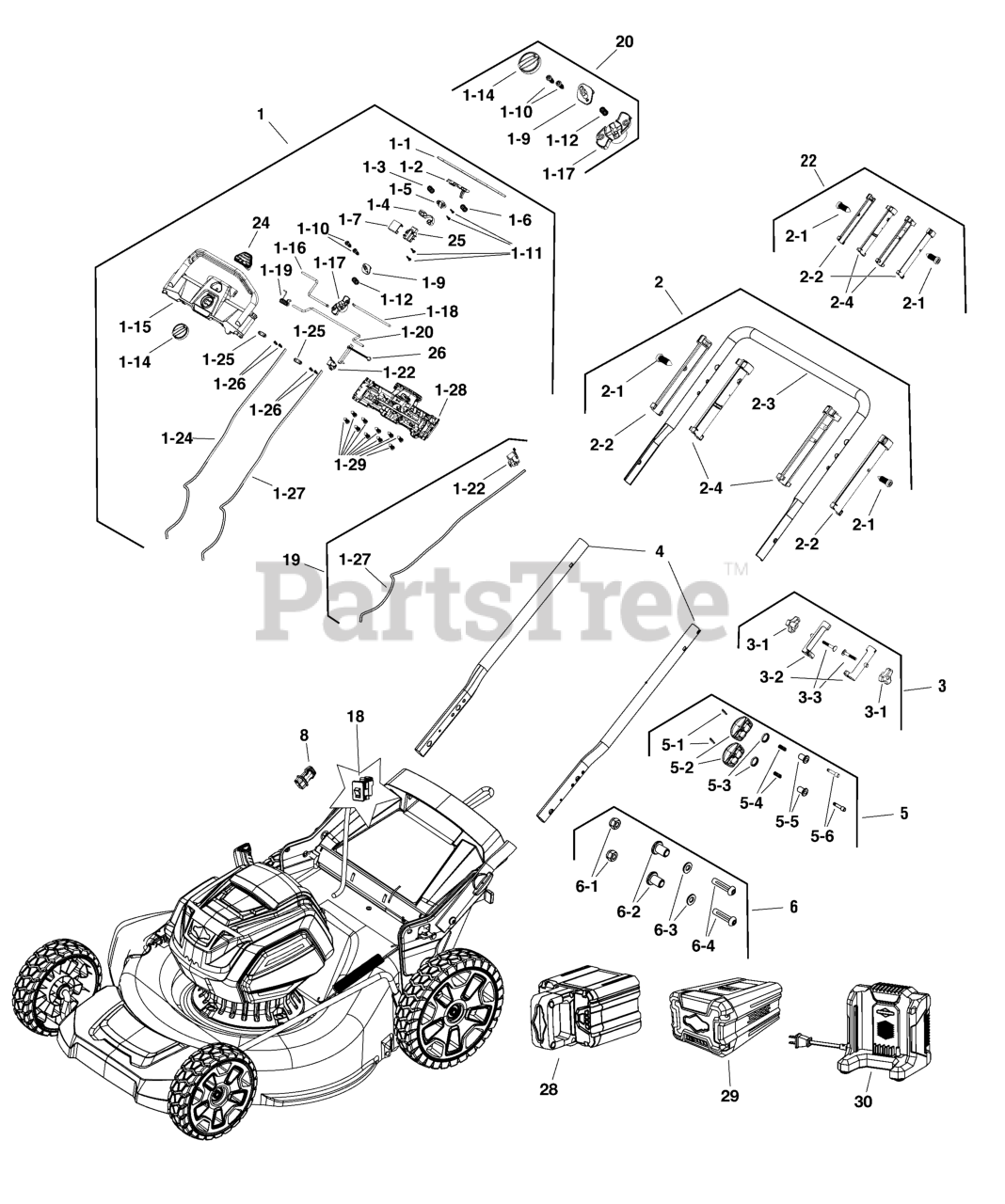

20SSWM48 (1688068-00) - Snapper 48V 20" Step Sense Walk-Behind Mower Handles Group Parts Diagram

48V 20" Step Sense Walk-Behind Mower

Handles Group Parts Diagram

  • Title

1

Snapper 84004270

PANEL ASSEMBLY

Note: (Includes Ref. Nos. 1-1 to 1-29, 24,25 &26)

$

$

Currently unavailable

1-1

ROD, Personal Pace

$

$

Not available

1-2

SWITCH

$

$

Not available

1-3

SPRING

$

$

Not available

1-4

SPRING, Pivot

$

$

Not available

1-5

DISC, Tension

$

$

Not available

1-6

SPRING

$

$

Not available

1-7

INSERT

$

$

Not available

1-9

PIVOT, Control

$

$

Not available

1-10

SCREW, ST 4.2 x 18

$

$

Not available

1-11

SCREW

$

$

Not available

1-12

SPRING, Compression

$

$

Not available

1-14

KNOB, Control

$

$

Not available

1-15

PANEL, Upper

$

$

Not available

1-16

LEVER, Lock, RH

$

$

Not available

1-17

PIVOT, Lock

$

$

Not available

1-18

LEVER, Lock, LH

$

$

Not available

1-19

SPRING, Torsion

$

$

Not available

1-20

LEVER, Control

$

$

Not available

1-22

SWITCH

$

$

Not available

1-24

CABLE, Blade

$

$

Not available

1-25

RETAINER

$

$

Not available

1-26

SCREW, ST 4 x 16-F

$

$

Not available

1-27

CABLE, Drive

$

$

Not available

1-28

PANEL, Lower

$

$

Not available

1-29

HINGE

$

$

Not available

2

Snapper 84002043

KIT, Upper Handle

Note: (Includes Ref. Nos. 2-1 through 2-4)

$122.99

$

Usually ships in 2-12 days

0

2-1

HINGE

$

$

Not available

2-2

SLIDE, Outer

$

$

Not available

2-3

HANDLE, Upper

$

$

Not available

2-4

SLIDE, Inner

$

$

Not available

3

Snapper 84004542

KIT, Mounting Hardware

Note: (Includes Ref. Nos. 3-1 through 3-3)

$

$

Currently unavailable

3-1

KNOB, M8

$

$

Not available

3-2

SLEEVE

$

$

Not available

3-3

BOLT

$

$

Not available

4

Snapper 84004170

LOWER HANDLE ASSEMBLY

$

$

Currently unavailable

5

Snapper 84004543

KIT, Knob, Lower Handle

Note: (Includes Ref. Nos. 5-1 through 5-6)

$

$

Currently unavailable

5-1

PIN

$

$

Not available

5-2

KNOB, Lower Handle

$

$

Not available

5-3

GASKET

$

$

Not available

5-4

SPRING

$

$

Not available

5-5

INSERT

$

$

Not available

5-6

POST

$

$

Not available

6

Snapper 84001930

KIT, Hardware, Lower Handle

Note: (Includes Ref. Nos. 6-1 through 6-4)

$9.99

$

Usually ships in 2-12 days

0

6-1

NUT, M8

$

$

Not available

6-2

INSERT

$

$

Not available

6-3

WASHER, Flat

$

$

Not available

6-4

BOLT

$

$

Not available

8

Snapper 596798

KEY, Safety

$5.49

$

Usually ships in 2-12 days

0

18

Snapper 84001946

SWITCH, Safety

$14.99

$

Usually ships in 2-12 days

0

19

Snapper 84002074

KIT, Drive Cable

Note: (Includes Ref. Nos. 1-22 & 1-27)

$40.99

$

Usually ships in 2-12 days

0

20

Snapper 84002070

KIT, Control Knob

Note: (Includes Ref. Nos. 1-9, 1-10, 1-12, 1-14, 1-17)

$8.49

$

Usually ships in 2-12 days

0

22

Snapper 84001635

KIT, Slides

Note: (Includes Ref. Nos. 2-1, 2-2 & 2-4)

$10.99

$

Usually ships in 2-12 days

0

24

Snapper 84002071

KIT, Start Button

$3.49

$

Usually ships in 2-12 days

0

25

Snapper 84002072

SWITCH, Operator Presence

$15.99

$

Usually ships in 2-12 days

0

26

Snapper 84002073

SWITCH, Speed Control

$35.99

$

Usually ships in 2-12 days

0

28

Snapper 1697088

* BATTERY, 2.0, 48V

Note: (Option)

$155.99

$

Usually ships in 2-12 days

0

29

Snapper 1697090

* BATTERY, 5.0, 48V

Note: (Option)

$311.99

$

In Stock, only 1 left!

0

30

Snapper 1697092

* BATTERY CHARGER, 48V

Note: (Option)

$76.99

$

In Stock, Qty 7

0

--

Snapper 770294

REMOTE BELT FOR BATTERY

$186.99

$

Usually ships in 2-12 days

0
