20P45L00 (96117001700) - Murray 20" Walk-Behind Mower (2013) Deck Group (20P45L00) Parts Diagram

20" Walk-Behind Mower

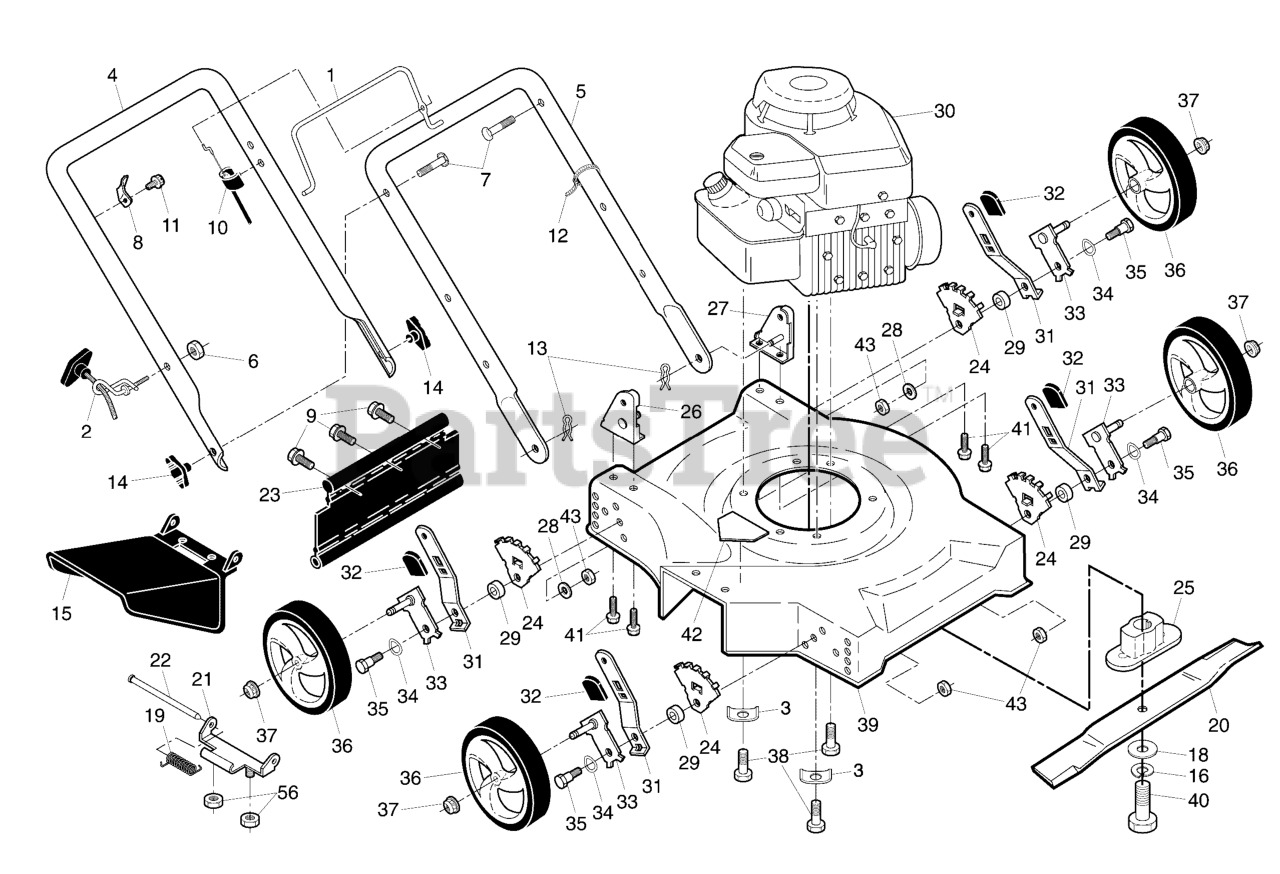

Deck Group (20P45L00) Parts Diagram

  • Title

1

Murray 709273

Control Bar

$

$

Not available

2

Murray 709279

Rope Guide

$35.99

$

Usually ships in 2-12 days

0

3

Murray 709450

Engine Washer

$6.99

$

Usually ships in 2-12 days

0

4

Murray 709384

Upper Handle

$85.99

$

Usually ships in 2-12 days

0

5

Murray 708680

Lower Handle

$185.99

$

Usually ships in 2-12 days

0

6

Murray 709054

Nut, Hex

$4.99

$

Usually ships in 2-12 days

0

7

Murray 709234

Handle Bolt 5/16-18 x 1-3/4

$7.49

$

Usually ships in 2-12 days

0

8

Murray 709368

Up-Stop Bracket
(Superseded to 707659)

$9.99

$

In Stock, only 1 left!

0

9

Murray 708218

Hex Washer Head Screw #10-

$8.49

$

Usually ships in 2-12 days

0

10

Murray 709382

Engine Zone Control Cable

$41.99

$

In Stock, only 2 left!

0

11

Murray 709195

Screw

$4.49

$

Usually ships in 2-12 days

0

12

Murray 709409

Wire Tie

$6.99

$

In Stock, only 1 left!

0

13

Murray 709387

Hairpin Cotter

$9.99

$

Usually ships in 2-12 days

0

14

Murray 709219

Knob, Handle

$7.49

$

In Stock, only 2 left!

0

15

Murray 708677

Discharge Guard

$

$

Not available

16

Murray 705316

Helical Lock Washer 3/8

$5.49

$

In Stock, only 1 left!

0

18

Murray 709448

Hardened Washer

$9.99

$

In Stock, only 4 left!

0

19

Murray 708399

Torsion Spring

$8.99

$

In Stock, only 1 left!

0

20

Murray 707855

Blade, 20"

$38.99

$

Usually ships in 2-12 days

0

21

Murray 708005

Hinge Deflector

$7.99

$

Usually ships in 2-12 days

0

22

Murray 708057

Hinge Rod

$10.99

$

In Stock, only 1 left!

0

23

Murray 708217

Rear Deflector

$11.99

$

Usually ships in 2-12 days

0

24

Murray 708661

Wheel Adjusting Bracket

$8.99

$

Usually ships in 2-12 days

0

25

Murray 707856

Blade Adapter

$37.99

$

In Stock, only 1 left!

0

26

Murray 708578

Handle Bracket Assembly, RH

$15.99

$

Usually ships in 2-12 days

0

27

Murray 708579

Handle Bracket Assembly, LH

$15.99

$

Usually ships in 2-12 days

0

28

Murray 61537

** Washer, Flat

Note: (This part is not serviced by Briggs & Stratton.)

$

$

Not available

29

Murray 709305

Spacer

$10.99

$

Usually ships in 2-12 days

0

30

Murray 09L602-1611-F1

* Engine, Briggs & Stratton

Note: ( Engine Model: 09L602-1611-F1 )

$

$

Currently unavailable

31

Murray 709304

Selector Spring

$12.99

$

Usually ships in 2-12 days

0

32

Murray 709451

Selector Knob

$9.49

$

Usually ships in 2-12 days

0

33

Murray 708651

Axle Arm Assembly

$13.99

$

Usually ships in 2-12 days

0

34

Murray 709306

Belleville Washer

$10.99

$

In Stock, only 1 left!

0

35

Murray 709307

Shoulder Bolt

$7.99

$

In Stock, Qty 5

0

36

Murray 708612

Wheel and Tire Assembly

$28.99

$

Usually ships in 2-12 days

0

37

Murray 709321

Nut, Hex

$9.99

$

Usually ships in 2-12 days

0

38

Murray 709093

Hex Head Thread Rolling Screw 3/8-16 x 1-1/8
(Superseded to 709443)

$8.49

$

Usually ships in 2-12 days

0

39

Murray 708527

Lawn Mower Housing

$395.99

$

Usually ships in 2-12 days

0

40

Murray 709449

Hex Head Screw 3/8-24 x 1-3/8 Grade 8

$9.99

$

In Stock, only 1 left!

0

41

Murray 708048

Thread Cutting Screw 5/16-18 x 3/4

$6.99

$

Usually ships in 2-12 days

0

42

Murray 709203

Danger Decal

$8.99

$

Usually ships in 2-12 days

0

43

Murray 705350

Locknut, Hex 5/16-18

$5.99

$

Usually ships in 2-12 days

0

56

Murray 709432

Locknut, Hex 1/4-20
(Superseded to 705713)

$5.99

$

Usually ships in 2-12 days

0

--

Murray 182191

** Warning Decal

Note: (Not Shown) (This part is not serviced by Briggs & Stratton.)

$2.49

$

Usually ships in 3-10 days

0

--

Murray 709266

Operator's Manual, English

$9.49

$

Usually ships in 2-12 days

0

--

Murray 709268

Operator's Manual, French

$227.99

$

Usually ships in 2-12 days

0

--

Murray 709269

Operator's Manual, Spanish

$9.49

$

Usually ships in 2-12 days

0

--

Murray 709019

Operator's Manual, Portuguese

$5.49

$

Usually ships in 2-12 days

0

--

Murray 585587427

** Repair Parts Manual, English

Note: (This part is not serviced by Briggs & Stratton.)

$1.99

$

Usually ships in 3-10 days

0
