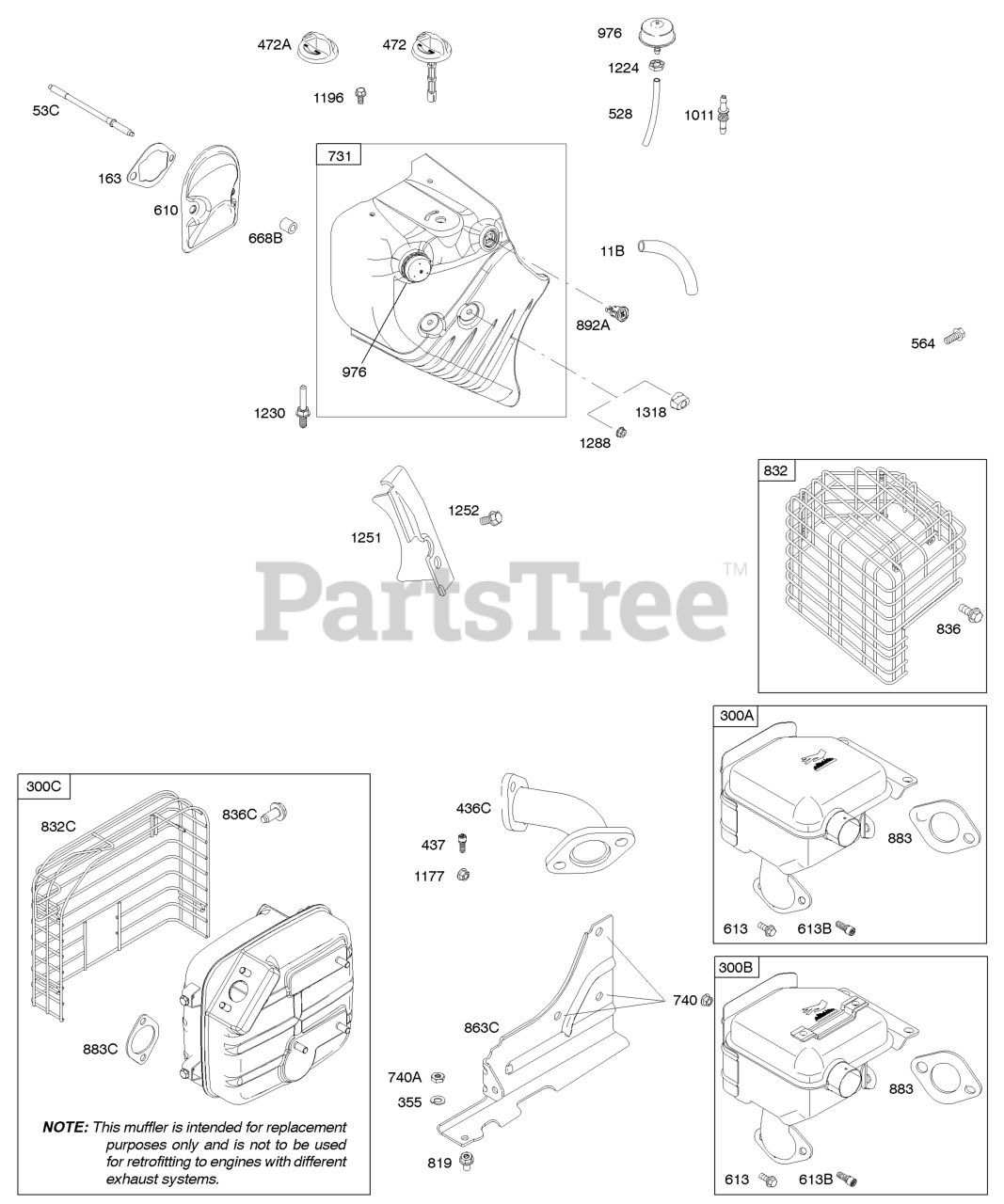

20E414-0204-E1 - Briggs & Stratton Horizontal Engine Blower Housing/Shrouds, Exhaust System Parts Diagram

Horizontal Engine

Blower Housing/Shrouds, Exhaust System Parts Diagram

  • Title

11B

Briggs & Stratton 696750

Tube-Breather

$10.99

$

Usually ships in 2-12 days

0

53C

Briggs & Stratton 794542

Stud

Note: (Carburetor)

$8.49

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 692277

Gasket-Air Cleaner

$6.99

$

In Stock, only 2 left!

0

300B

Briggs & Stratton 794695

Muffler

Note: Used After Code Date 03041300

$130.99

$

Usually ships in 2-12 days

0

300B

Briggs & Stratton 698160

Muffler

Note: Used Before Code Date 03041400

$132.99

$

Usually ships in 2-12 days

0

355

Briggs & Stratton 691075

WASHER

Note: (Muffler Bracket)

$3.49

$

Usually ships in 2-12 days

0

436C

Briggs & Stratton 792374

Manifold-Exhaust

$45.99

$

Usually ships in 2-12 days

0

437

Briggs & Stratton 696705

Screw

Note: (Exhaust Manifold)

$

$

Not available

472

Briggs & Stratton 696752

Knob-Choke Shaft
(Superseded to 594219)

$19.99

$

Usually ships in 2-12 days

0

472A

Briggs & Stratton 791958

Knob-Choke Shaft

$9.49

$

In Stock, only 3 left!

0

528

Briggs & Stratton 793006

Hose-Primer

Note: (Cut To Required Length)

$8.49

$

Usually ships in 2-12 days

0

564

Briggs & Stratton 696692

Screw
(Superseded to 798785)

Note: (Control Cover)

$3.99

$

In Stock, Qty 20+

0

610

Briggs & Stratton 794541

Arrester-Intake

$49.99

$

Usually ships in 2-12 days

0

613

Briggs & Stratton 695312

Screw

Note: (Muffler) (3/4" Long)

$3.99

$

Usually ships in 2-12 days

0

613B

Briggs & Stratton 696705

Screw

Note: (Muffler)

$

$

Not available

668B

Briggs & Stratton 794539

Spacer

Note: (Snow Hood)

$8.49

$

In Stock, Qty 5

0

731

Briggs & Stratton 794591

Hood-Snow

$

$

Not available

740

Briggs & Stratton 710090

Nut

Note: (Muffler Bracket)

$3.99

$

Usually ships in 2-12 days

0

740A

Briggs & Stratton 793859

Nut

Note: (Muffler Bracket)

$3.49

$

Usually ships in 2-12 days

0

819

Briggs & Stratton 690352

Screw

Note: (Muffler Bracket)

$6.99

$

In Stock, only 3 left!

0

832

Briggs & Stratton 699223

Guard-Muffler
(Superseded to 796384)

$83.99

$

Usually ships in 2-12 days

0

836

Briggs & Stratton 691003

SCREW

Note: (Muffler Guard)

$3.49

$

In Stock, Qty 9

0

863C

Briggs & Stratton 793700

Bracket-Muffler

$75.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 695398

GASKET, Exhaust

$7.99

$

In Stock, Qty 8

0

883C

Briggs & Stratton 710250

Gasket-Exhaust

$8.49

$

In Stock, only 1 left!

0

892A

Briggs & Stratton 791944

Switch-Key

$14.99

$

In Stock, only 1 left!

0

976

Briggs & Stratton 695750

Primer-Carburetor

Note: Used Before Code Date 04061600

$

$

Not available

976

Briggs & Stratton 790221

Primer-Carburetor
(Superseded to 793382)

Note: Used After Code Date 04061500

$10.99

$

In Stock, Qty 10

0

1011

Briggs & Stratton 794544

Tube-Vent

$9.49

$

Usually ships in 2-12 days

0

1177

Briggs & Stratton 710090

Nut

Note: (Muffler)

$3.99

$

Usually ships in 2-12 days

0

1196

Briggs & Stratton 696692

Screw
(Superseded to 798785)

Note: (Snow Hood)

$3.99

$

In Stock, Qty 20+

0

1224

Briggs & Stratton 696824

Nut

Note: (Carburetor Primer)

$5.49

$

Usually ships in 2-12 days

0

1230

Briggs & Stratton 696747

Stud

Note: (Control Bracket)

$4.49

$

Usually ships in 2-12 days

0

1251

Briggs & Stratton 696762

Shield-Snow

$9.99

$

Usually ships in 2-12 days

0

1252

Briggs & Stratton 691108

SCREW

Note: (Snow Shield)

$3.49

$

In Stock, Qty 20+

0

1288

Briggs & Stratton 696757

Nut

Note: (Snow Hood)

$3.99

$

In Stock, only 2 left!

0

1318

Briggs & Stratton 698111

Knob-Snow Hood

$8.49

$

Usually ships in 2-12 days

0
