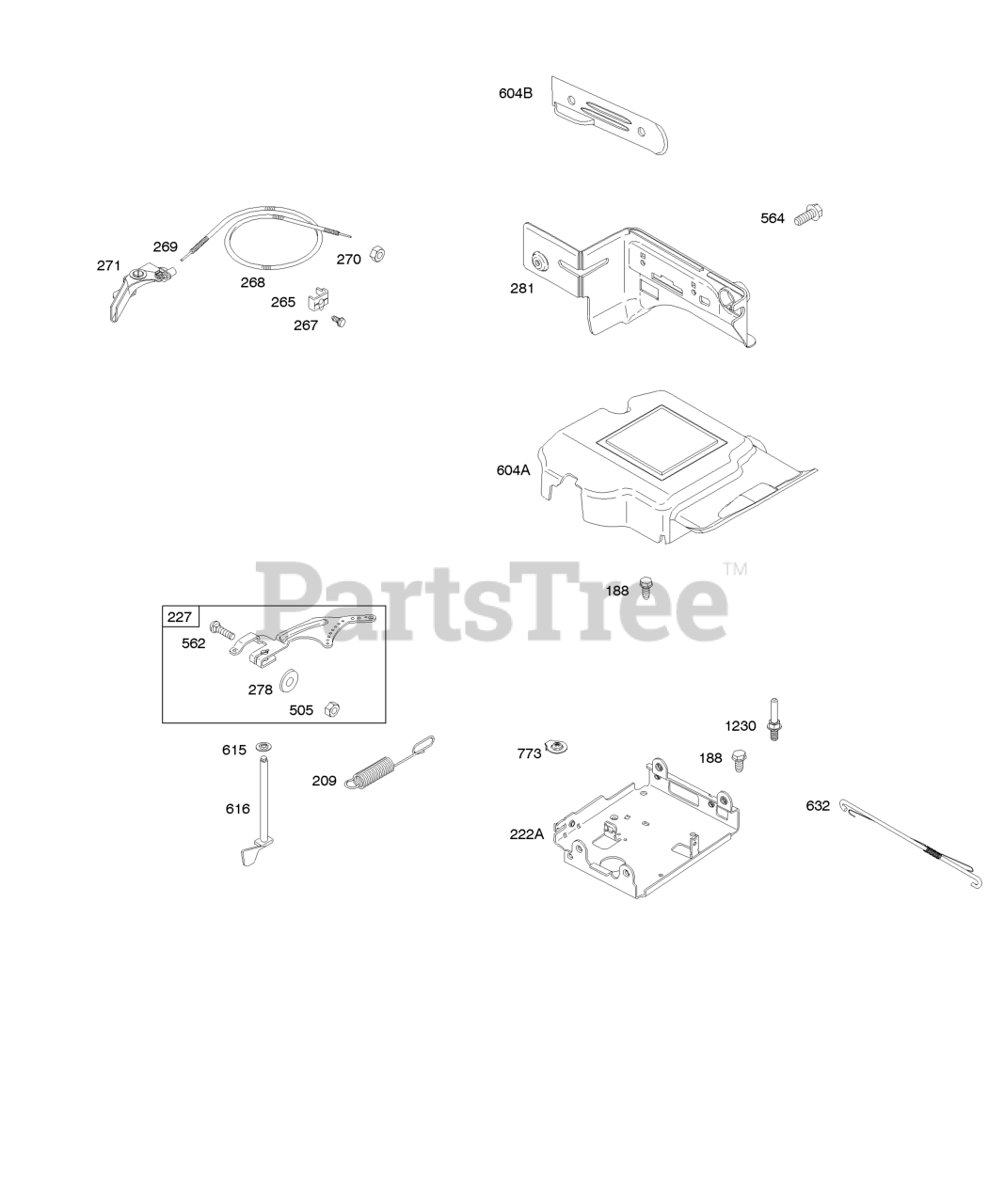

20E114-0110-E1 - Briggs & Stratton Horizontal Engine Controls, Governor Spring Parts Diagram

Horizontal Engine

Controls, Governor Spring Parts Diagram

  • Title
188

Briggs & Stratton 690877

Screw

Note: (Control Bracket)

$3.99

$

In Stock, Qty 5

0

209

Briggs & Stratton 695491

Spring-Governor

$

$

Not available

222A

Briggs & Stratton 694866

Bracket-Control
(Superseded to 794801)

$40.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 694864

Lever-Governor Control

$16.99

$

Usually ships in 2-12 days

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, Qty 7

0

267

Briggs & Stratton 692577

Screw

Note: (Casing Clamp)

$3.99

$

Usually ships in 2-12 days

0

268

Briggs & Stratton 691025

CASING, Control Wire

Note: (Cut To Required Length)

$

$

Not available

269

Briggs & Stratton 691026

WIRE, Control
(Superseded to 26634)

Note: (Cut To Required Length)

$

$

Not available

270

Briggs & Stratton 691027

NUT

Note: (Control Wire Casing)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 691028

Lever-Control

$45.99

$

Usually ships in 2-12 days

0

278

Briggs & Stratton 792008

Washer

Note: (Governor Control Lever)

$8.49

$

Usually ships in 2-12 days

0

281

Briggs & Stratton 697268

Panel-Control

$35.99

$

Usually ships in 2-12 days

0

505

Briggs & Stratton 691251

NUT

Note: (Governor Control Lever)

$3.49

$

In Stock, Qty 9

0

562

Briggs & Stratton 793216

Bolt

Note: (Governor Control Lever)

$6.49

$

Usually ships in 2-12 days

0

564

Briggs & Stratton 696692

Screw
(Superseded to 798785)

Note: (Control Cover)

$3.99

$

In Stock, Qty 20+

0

604A

Briggs & Stratton 696758

Cover-Control

$24.99

$

Usually ships in 2-12 days

0

604B

Briggs & Stratton 790473

Cover-Control

$6.99

$

In Stock, only 1 left!

0

615

Briggs & Stratton 694676

Retainer-Governor Shaft

$4.99

$

Usually ships in 2-12 days

0

616

Briggs & Stratton 694675

Crank-Governor
(Superseded to 795758)

$15.99

$

In Stock, only 1 left!

0

632

Briggs & Stratton 695917

Spring/Link-Mechanical Governor

Note: (Use With Nikki Carburetor)

$

$

Not available

$4.49

$

In Stock, only 1 left!

0

1230

Briggs & Stratton 696747

Stud

Note: (Control Bracket)

$4.49

$

Usually ships in 2-12 days

0
