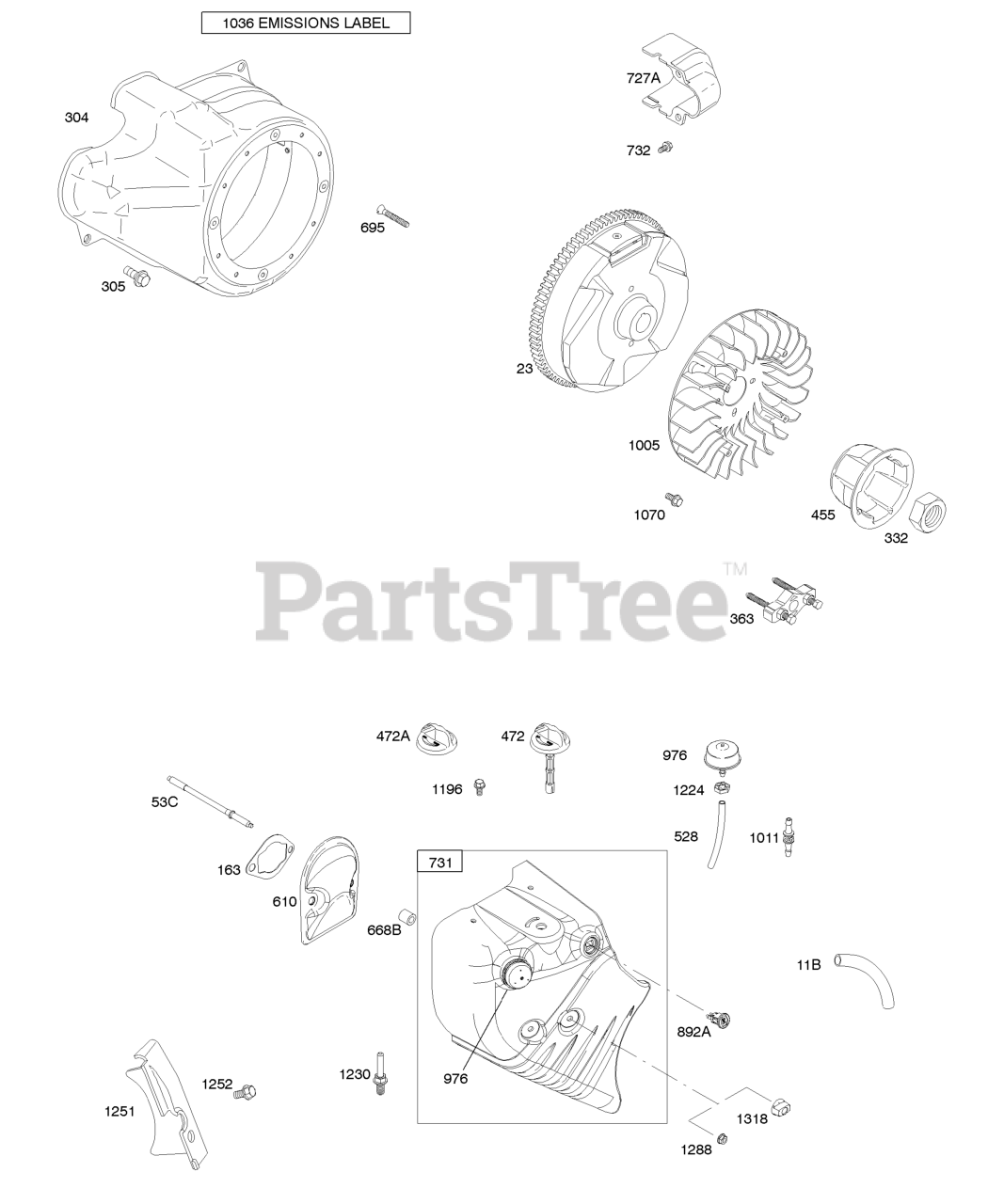

20C414-0111-E1 - Briggs & Stratton Horizontal Engine Blower Housing/Shrouds, Flywheel Parts Diagram

Horizontal Engine

Blower Housing/Shrouds, Flywheel Parts Diagram

  • Title

11B

Briggs & Stratton 696750

Tube-Breather

$10.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 695485

Flywheel
(Superseded to 794812)

$

$

Not available

53C

Briggs & Stratton 794542

Stud

Note: (Carburetor)

$8.49

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 692277

Gasket-Air Cleaner

$6.99

$

In Stock, only 4 left!

0

304

Briggs & Stratton 791478

Housing-Blower
(Superseded to 795699)

$90.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 691108

SCREW

Note: (Blower Housing)

$3.49

$

In Stock, Qty 20+

0

332

Briggs & Stratton 694685

Nut

Note: (Flywheel)

$6.99

$

In Stock, only 1 left!

0

363

Briggs & Stratton 19203

PULLER, Flywheel

$23.99

$

In Stock, only 1 left!

0

455

Briggs & Stratton 697226

Cup-Flywheel

$10.99

$

Usually ships in 2-12 days

0

472

Briggs & Stratton 696752

Knob-Choke Shaft
(Superseded to 594219)

$19.99

$

Usually ships in 2-12 days

0

472A

Briggs & Stratton 791958

Knob-Choke Shaft

$9.49

$

In Stock, only 3 left!

0

528

Briggs & Stratton 793006

Hose-Primer

$8.49

$

In Stock, only 1 left!

0

610

Briggs & Stratton 794541

Arrester-Intake

$49.99

$

Usually ships in 2-12 days

0

668B

Briggs & Stratton 794539

Spacer

Note: (Snow Hood)

$8.49

$

In Stock, only 4 left!

0

695

Briggs & Stratton 698807

Screw

Note: (Ring Gear)

$3.99

$

In Stock, only 4 left!

0

727A

Briggs & Stratton 697465

COVER, Starter Drive

$7.99

$

Usually ships in 2-12 days

0

731

Briggs & Stratton 794591

Hood-Snow

$

$

Not available

732

Briggs & Stratton 691097

Screw

Note: (Starter Drive Cover)

$3.99

$

Usually ships in 2-12 days

0

976

Briggs & Stratton 695750

Primer-Carburetor

Note: Used Before Code Date 04061600

$

$

Not available

976

Briggs & Stratton 790221

Primer-Carburetor
(Superseded to 793382)

Note: Used After Code Date 04061500

$10.99

$

In Stock, only 3 left!

0

1005

Briggs & Stratton 694684

Fan-Flywheel
(Superseded to 794815)

$17.99

$

In Stock, only 2 left!

0

1011

Briggs & Stratton 794544

Tube-Vent

$9.49

$

Usually ships in 2-12 days

0

1036

Label-Emissions

Note: (Available From A Briggs & Stratton Authorized Dealer)

$

$

Not available

1070

Briggs & Stratton 691058

Screw

Note: (Flywheel Fan)

$5.99

$

In Stock, Qty 11

0

1196

Briggs & Stratton 696685

Screw

Note: (Snow Hood) Used Before Code Date 03041400

$2.49

$

Usually ships in 2-12 days

0

1196

Briggs & Stratton 699166

Screw
(Superseded to 798785)

Note: (Snow Hood) Used After Code Date 03041300

$3.99

$

In Stock, Qty 20+

0

1224

Briggs & Stratton 696824

Nut

Note: (Carburetor Primer)

$5.49

$

Usually ships in 2-12 days

0

1230

Briggs & Stratton 696747

Stud

Note: (Control Bracket)

$4.49

$

Usually ships in 2-12 days

0

1251

Briggs & Stratton 696762

Shield-Snow

$9.99

$

Usually ships in 2-12 days

0

1252

Briggs & Stratton 691108

SCREW

Note: (Snow Shield)

$3.49

$

In Stock, Qty 20+

0

1288

Briggs & Stratton 696757

Nut

Note: (Snow Hood)

$3.99

$

In Stock, only 1 left!

0

1318

Briggs & Stratton 698111

Knob-Snow Hood

$8.49

$

Usually ships in 2-12 days

0
