20999 - Toro 53cm Recycler Walk-Behind Mower (SN: 315000001 - 315999999) (2015) ENGINE AND BLADE ASSEMBLY Parts Diagram

53cm Recycler Walk-Behind Mower

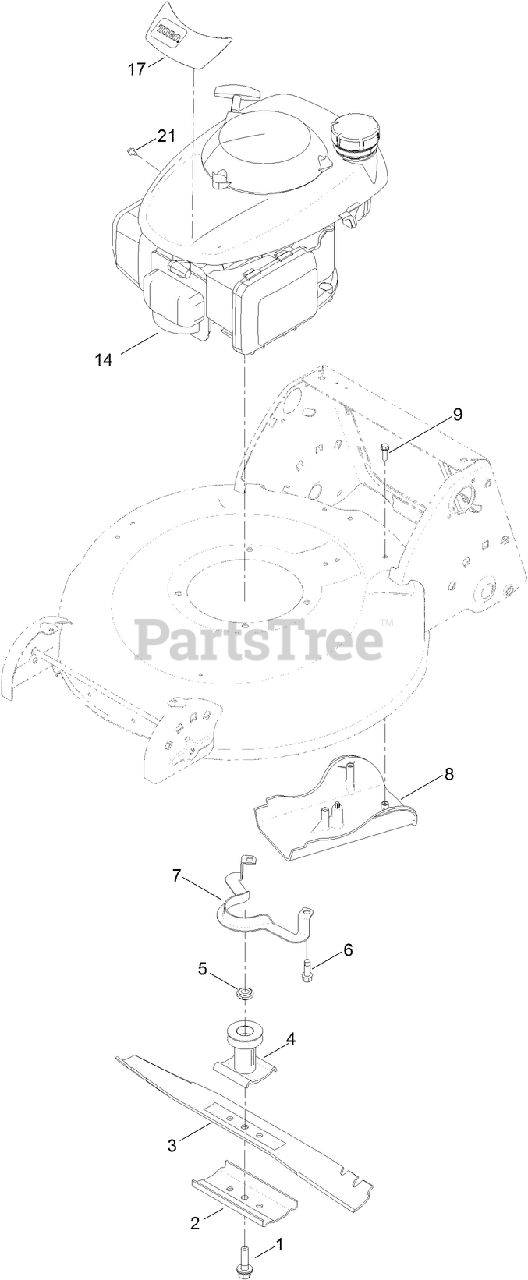

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 117-5270

BOLT-BLADE

$

$

Not available

2

Toro 108-3766-03

SUPPORT-BLADE

$10.99

$

In Stock, Qty 20+

0

3

Toro 108-0954-03

BLADE-21 INCH
(Superseded to 133-8182-S)

$20.99

$

In Stock, only 2 left!

0

4

Toro 114-2774

DRIVER-BLADE

$34.99

$

In Stock, only 1 left!

0

5

Toro 106-3999

Spacer-Driver

$3.49

$

In Stock, Qty 20+

0

6

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

7

Toro 105-3030-03

Guide-Belt

$14.99

$

In Stock, only 2 left!

0

8

Toro 110-1832

COVER-BELT

$15.99

$

In Stock, only 2 left!

0

9

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

14

ENGINE-HONDA,GCV160A0-S3TE GAS

Note: Not serviced separately

$

$

Not available

14

ENGINE-HONDA,GCV160A0-S3TE GAS

Note: Obtain parts from www.honda-engines.com

$

$

Not available

17

Toro 120-1949

DECAL-ENGINE

$17.99

$

Usually ships in 3-6 days

0

21

Toro 98-1394

SCREW-HWH

$4.49

$

In Stock, only 1 left!

0
