20997 - Toro 53cm Recycler Walk-Behind Mower (SN: 310000001 - 310999999) (2010) UPPER HANDLE ASSEMBLY Parts Diagram

53cm Recycler Walk-Behind Mower

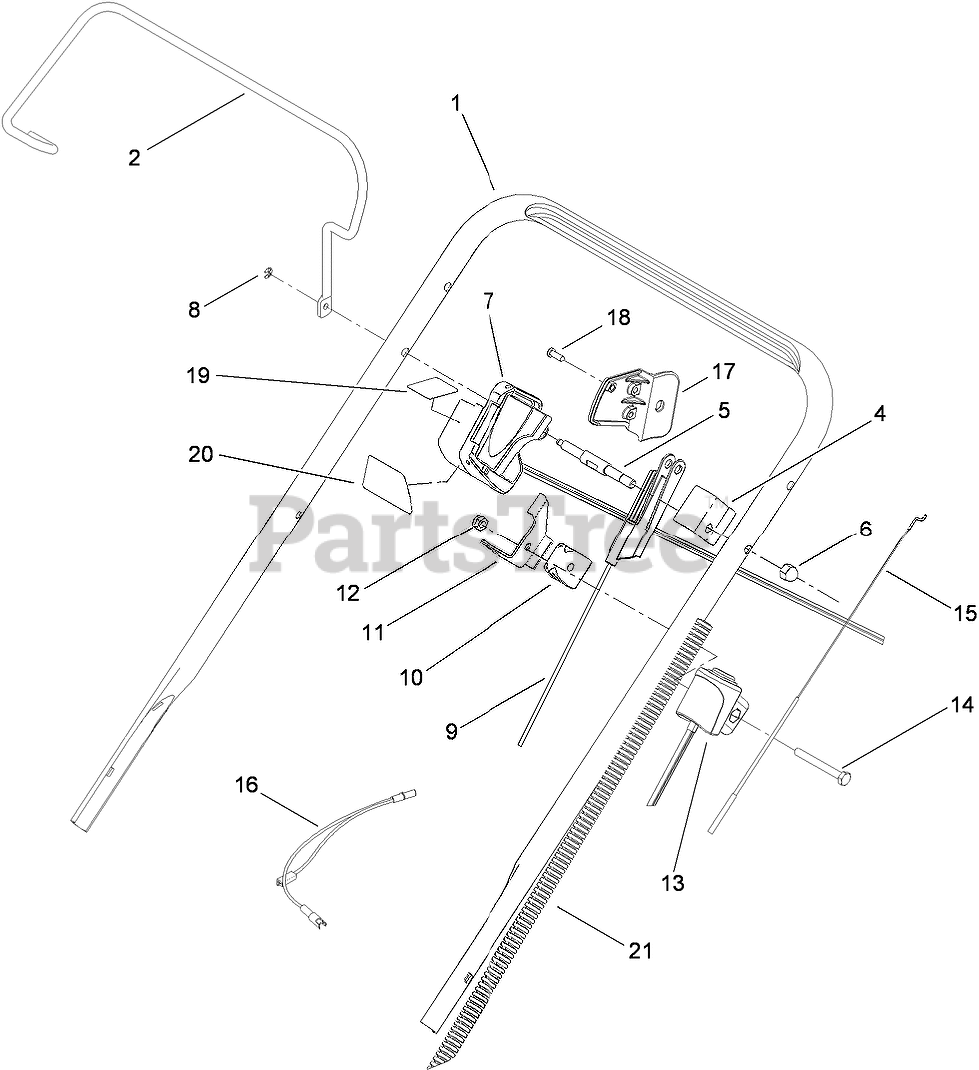

UPPER HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 119-3823-05

HANDLE-UPPER

$

$

Not available

2

Toro 119-3798-03

BAIL-BRAKE

$

$

Not available

4

Toro 119-3837

BRACKET-HANDLE, STOP

$

$

Not available

5

Toro 119-3799

PIN-PIVOT

$20.99

$

Usually ships in 3-6 days

0

6

Toro 32111-8

NUT-LOCK, CAP

$3.99

$

Usually ships in 3-6 days

0

7

Toro 117-5908

SAFTEY SWITCH ASM

$47.99

$

Usually ships in 3-6 days

0

8

Toro 110-1758

RING-RETAINING

$1.49

$

In Stock, Qty 20+

0

9

Toro 108-7520

CABLE-BRAKE

$55.99

$

Usually ships in 3-6 days

0

10

Toro 92-7729

ANCHOR-CABLE, UPPER

$4.99

$

In Stock, only 4 left!

0

11

Toro 119-3800

BRACKET-STOP

$

$

Not available

12

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, only 3 left!

0

13

Toro 108-8161

SWITCH HOUSING ASM
(Superseded to 117-5975)

$19.99

$

In Stock, Qty 20+

0

14

Toro 321-50

SCREW-HH

$1.99

$

In Stock, Qty 8

0

15

Toro 107-3902

CABLE-TRACTION

$22.99

$

In Stock, only 1 left!

0

16

Toro 119-3816

HARNESS-WIRE

$

$

Not available

17

Toro 108-7532

COVER-SWITCH

$7.49

$

Usually ships in 3-6 days

0

18

Toro 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

19

Toro 119-3796

DECAL-CONTROL, BLADE

$3.99

$

Usually ships in 3-6 days

0

20

Toro 119-3821

DECAL-BRAKE CONTROL, BLADE

$

$

Not available

21

Toro 119-3778

TUBE-LOOM, SPLIT

$8.49

$

Usually ships in 3-6 days

0
