20997 - Toro 53cm Recycler Walk-Behind Mower (SN: 310000001 - 310999999) (2010) HANDLE ASSEMBLY Parts Diagram

53cm Recycler Walk-Behind Mower

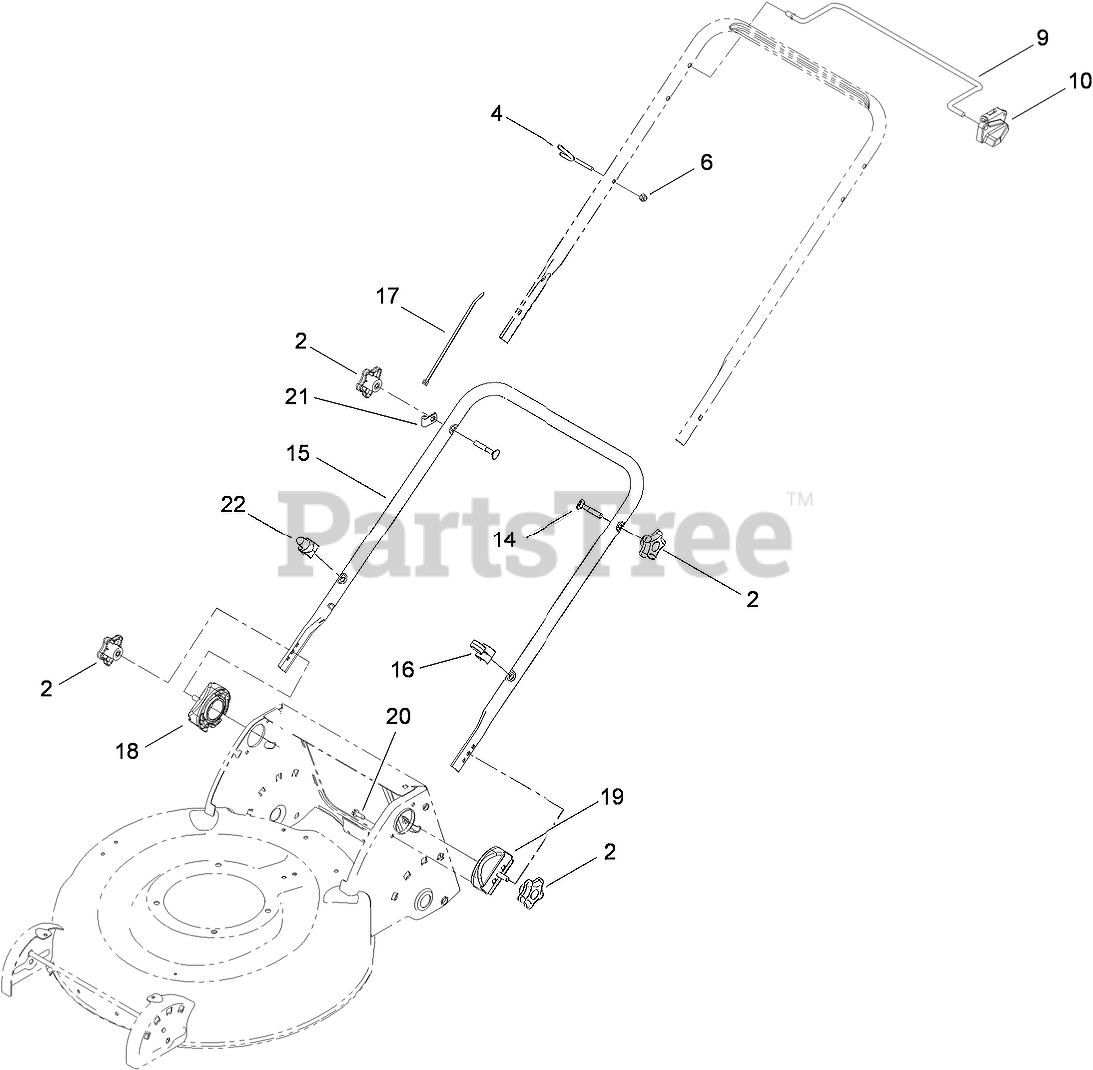

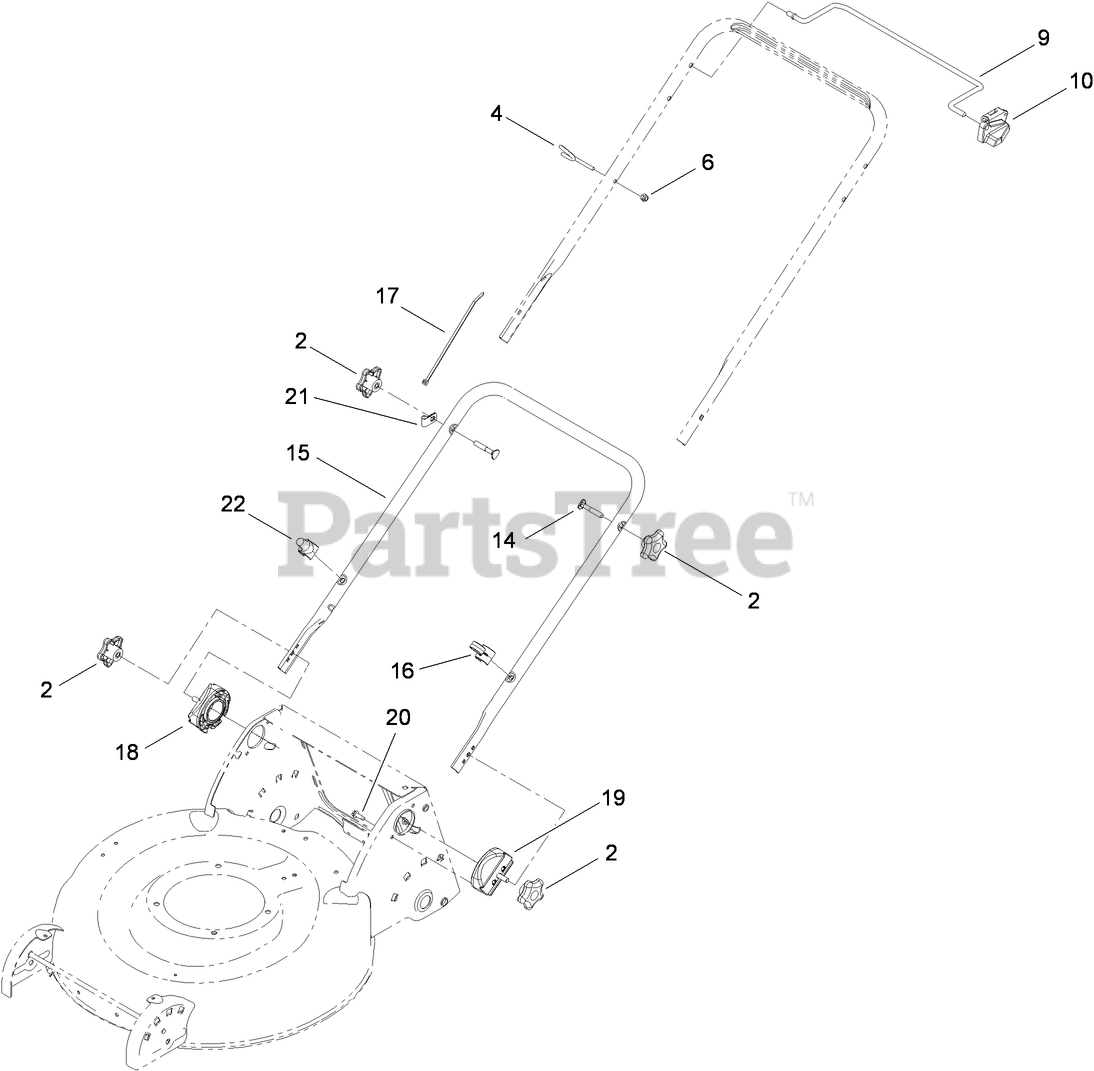

HANDLE ASSEMBLY Parts Diagram

  • Title

2

Toro 117-5976

KNOB-HANDLE

$2.99

$

In Stock, Qty 16

0

4

Toro 86-9671

GUIDE-ROPE

$4.49

$

In Stock, Qty 5

0

6

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, only 3 left!

0

9

Toro 105-1837-03

Bail-Control

$41.99

$

In Stock, only 3 left!

0

10

Toro 104-8682

Stop-Pivot

$19.99

$

In Stock, only 2 left!

0

14

Toro 112-8876

SCREW-HANDLE
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 7

0

15

Toro 110-1828-05

HANDLE-LOWER

$100.99

$

In Stock, only 1 left!

0

16

Toro 114-7988

GUIDE-CABLE

$2.99

$

In Stock, Qty 7

0

17

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0

18

Toro 108-1042

RH HANDLE MOUNT ASM
(Superseded to 119-7021)

$21.99

$

In Stock, only 1 left!

0

19

Toro 108-1043

LH HANDLE MOUNT ASM
(Superseded to 119-7021)

$21.99

$

In Stock, only 1 left!

0

20

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

21

Toro 2412-113

CLAMP-R

$2.49

$

Usually ships in 3-6 days

0

22

Toro 117-4141

GUIDE-ROPE, LOWER

$13.99

$

In Stock, only 4 left!

0
