20996 - Toro 53cm Recycler Walk-Behind Mower (SN: 290000001 - 290999999) (2009) LOWER HANDLE ASSEMBLY Parts Diagram

53cm Recycler Walk-Behind Mower

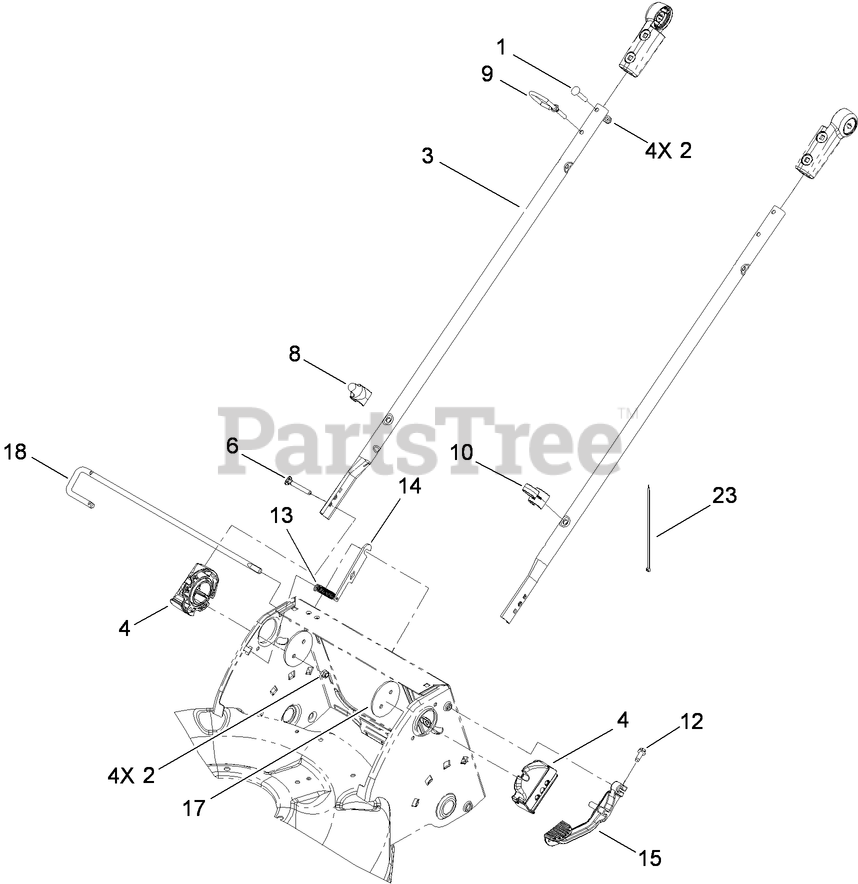

LOWER HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 108-0988

SCREW-CARR

$0.99

$

In Stock, only 3 left!

0

2

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, only 3 left!

0

3

Toro 107-3887-03

TUBE-LOWER

$30.99

$

Usually ships in 3-6 days

0

4

Toro 114-2791

MOUNT-HANDLE, LOWER
(Superseded to 119-3847-03)

$17.99

$

In Stock, only 1 left!

0

6

Toro 95-4453

SCREW

$3.49

$

In Stock, only 1 left!

0

8

Toro 117-4141

GUIDE-ROPE, LOWER

$13.99

$

In Stock, only 4 left!

0

9

Toro 107-3908

GUIDE-ROPE, UPPER

$4.49

$

In Stock, only 3 left!

0

10

Toro 106-6805

Guide-Cable
(Superseded to 114-7988)

$2.99

$

In Stock, Qty 7

0

12

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

13

Toro 112-1542

SPRING-EXTENSION

$2.99

$

In Stock, only 2 left!

0

14

Toro 112-1539

PLATE-ROD, RELEASE

$6.99

$

In Stock, only 1 left!

0

15

Toro 110-1823-03

LEVER-RELEASE

$42.99

$

In Stock, only 1 left!

0

17

Toro 107-3944-03

PLATE

$5.99

$

In Stock, Qty 8

0

18

Toro 112-8755

ROD-RELEASE, HANDLE

$24.99

$

In Stock, only 1 left!

0

23

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0
