20995 - Toro 53cm Recycler Walk-Behind Mower (SN: 314000001 - 314999999) (2014) HANDLE ASSEMBLY Parts Diagram

53cm Recycler Walk-Behind Mower

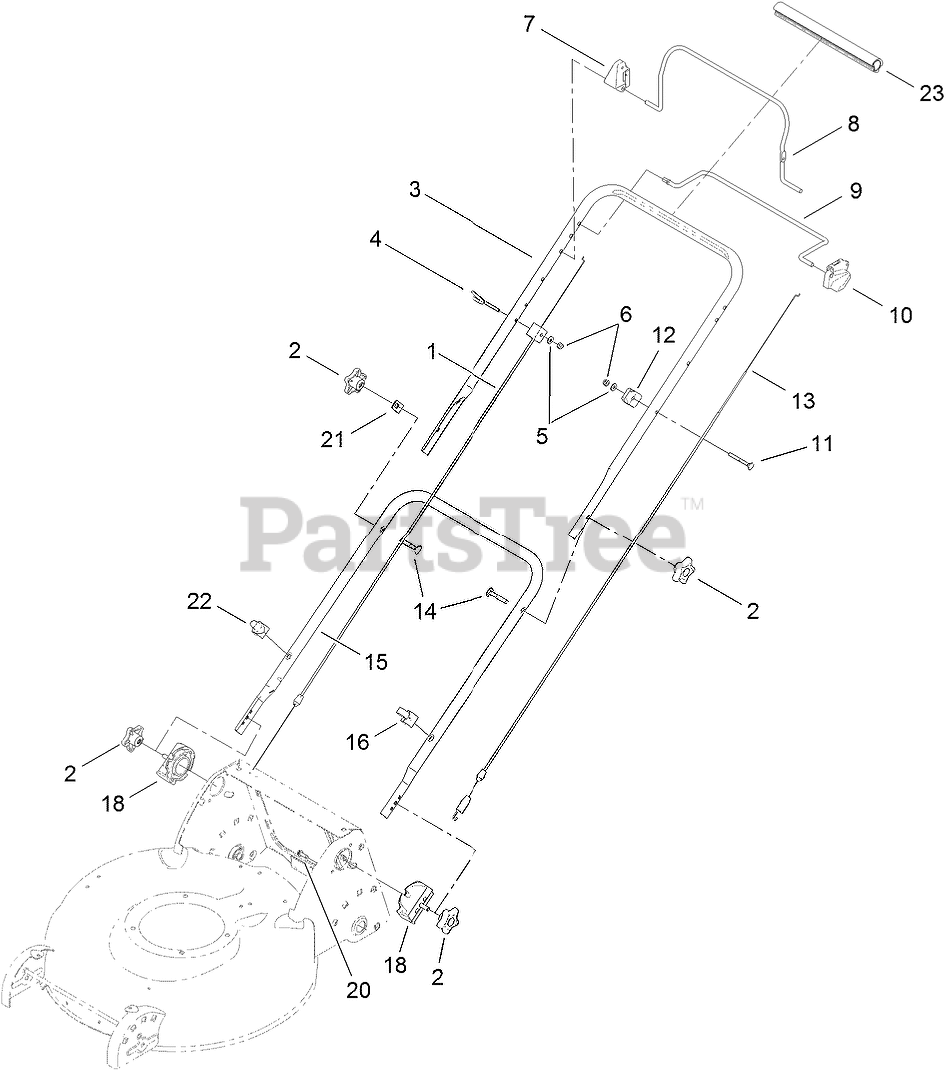

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 104-8677

Cable-Brake

$20.99

$

In Stock, only 1 left!

0

2

Toro 117-5976

KNOB-HANDLE

$2.99

$

In Stock, Qty 16

0

3

Toro 104-8680-05

Handle-Upper

$74.99

$

In Stock, only 1 left!

0

4

Toro 106-8330

GUIDE-ROPE

$5.99

$

In Stock, only 3 left!

0

5

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, only 3 left!

0

7

Toro 107-0757

STOP-PIVOT

$5.49

$

In Stock, only 1 left!

0

8

Toro 105-6800-03

Bail-Brake

$25.99

$

Usually ships in 3-6 days

0

9

Toro 105-1837-03

Bail-Control

$41.99

$

In Stock, only 3 left!

0

10

Toro 104-8682

Stop-Pivot

$19.99

$

In Stock, only 2 left!

0

11

Toro 95-4453

SCREW

$3.49

$

In Stock, only 1 left!

0

12

Toro 92-7729

ANCHOR-CABLE, UPPER

$4.99

$

In Stock, only 4 left!

0

13

Toro 110-1834

CABLE-TRACTION

$33.99

$

In Stock, only 1 left!

0

14

Toro 92-2260

SCREW-HANDLE

$3.99

$

In Stock, Qty 7

0

15

Toro 110-1828-05

HANDLE-LOWER

$100.99

$

In Stock, only 1 left!

0

16

Toro 114-7988

GUIDE-CABLE

$2.99

$

In Stock, Qty 7

0

18

Toro 119-7021

HANDLE MOUNT ASM

$21.99

$

In Stock, only 1 left!

0

20

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

21

Toro 2412-113

CLAMP-R

$2.49

$

Usually ships in 3-6 days

0

22

Toro 117-4141

GUIDE-ROPE, LOWER

$13.99

$

In Stock, only 4 left!

0

23

Toro 120-5216

GRIP-HANDLE, COMFORT

$12.99

$

Usually ships in 3-6 days

0
