20995 - Toro 53cm Recycler Walk-Behind Mower (SN: 312000001 - 312999999) (2012) DECK HOUSING, FRONT WHEEL AND REAR DOOR ASSEMBLY Parts Diagram

53cm Recycler Walk-Behind Mower

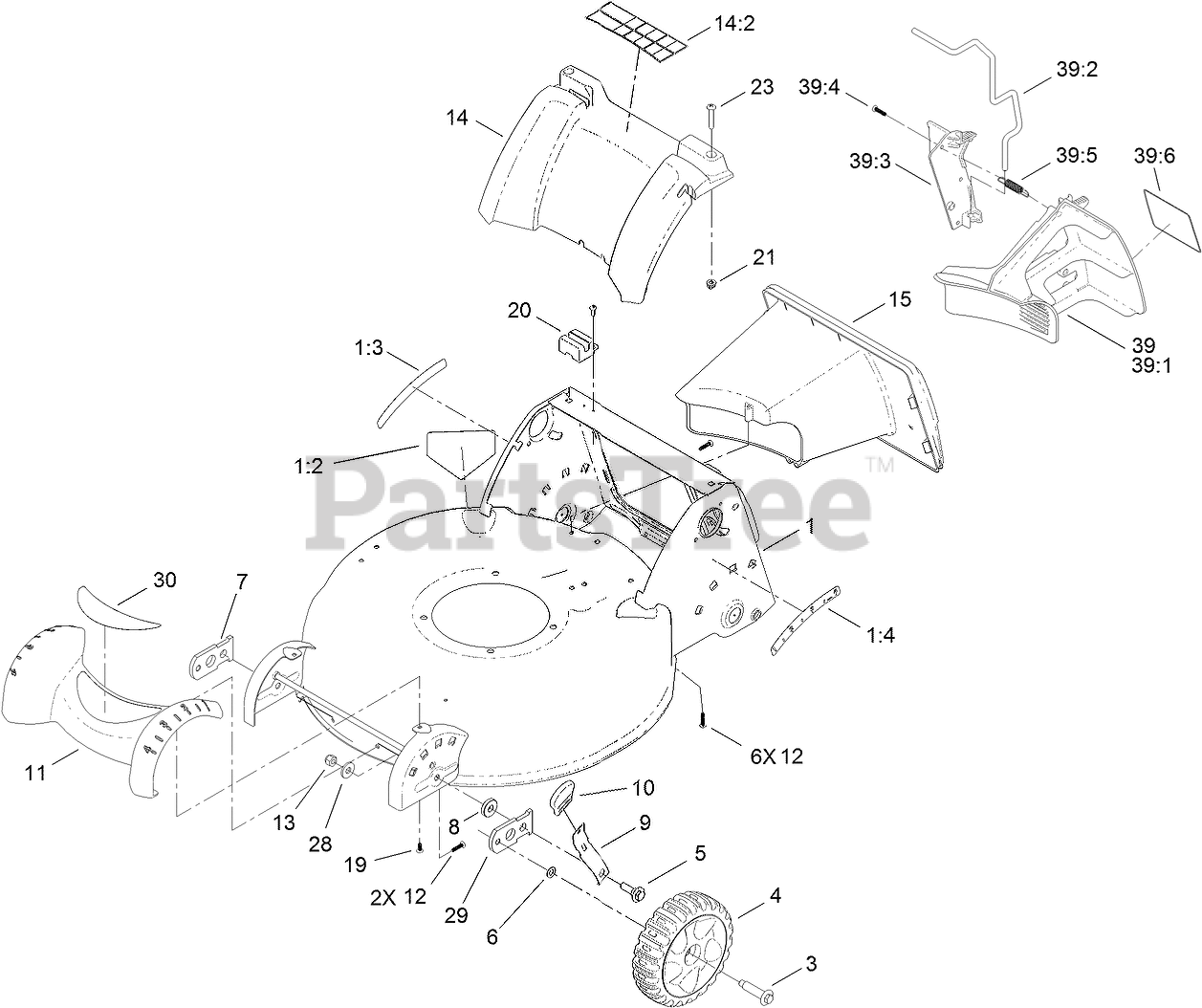

DECK HOUSING, FRONT WHEEL AND REAR DOOR ASSEMBLY Parts Diagram

  • Title
1

Toro 117-4193

DECK ASM

$278.99

$

Usually ships in 3-6 days

0

1:2

Toro 112-8760

DECAL-DANGER

$11.99

$

In Stock, Qty 5

0

1:3

Toro 108-7450

DECAL-HOC, RH

$9.99

$

Usually ships in 3-6 days

0

1:4

Toro 108-7451

DECAL-HOC, LH

$9.99

$

Usually ships in 3-6 days

0

3

Toro 614650

BOLT-SHOULDER

$4.49

$

In Stock, Qty 20+

0

4

Toro 119-3777

7 INCH WHEEL AND TIRE ASM

$35.99

$

In Stock, only 1 left!

0

5

Toro 614672

BOLT-SHOULDER

$2.99

$

In Stock, only 4 left!

0

6

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

7

Toro 107-3877

ARM-PIVOT, RH

$12.99

$

In Stock, only 2 left!

0

8

Toro 92-4890

WASHER

$8.99

$

In Stock, only 2 left!

0

9

Toro 107-3878

ARM-SPRING

$12.99

$

In Stock, only 3 left!

0

10

Toro 110-0549

KNOB-HOC

$1.49

$

In Stock, Qty 20+

0

11

Toro 107-3926

COVER-FRONT

$42.99

$

Usually ships in 3-6 days

0

12

Toro 108-7476

SCREW-PLASTITE

$0.99

$

In Stock, Qty 20+

0

13

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

14

Toro 115-3177

REAR COVER ASM

$50.99

$

Usually ships in 3-6 days

0

14:2

Toro 114-2820

DECAL-WARNING

$7.49

$

Usually ships in 3-6 days

0

15

Toro 110-9455

TUNNEL

$44.99

$

Usually ships in 3-6 days

0

19

Toro 108-7475

SCREW-PLASTITE

$4.99

$

Usually ships in 3-6 days

0

20

Toro 108-0993

MODULE-SWITCH

$66.99

$

Usually ships in 3-6 days

0

21

Toro 94-1610

NUT-CLIP

$1.49

$

In Stock, Qty 20+

0

23

Toro 108-0965

SCREW-PTH

$1.49

$

In Stock, Qty 11

0

28

Toro 80-6990

WASHER-HARDENED

$5.99

$

In Stock, Qty 20+

0

29

Toro 108-1044

ARM-PIVOT, LH

$10.99

$

Usually ships in 3-6 days

0

30

Toro 120-1947

DECAL-FRONT (CE)

$5.99

$

Usually ships in 3-6 days

0

39

Toro 110-9468

MULCH PLUG ASM

$64.99

$

In Stock, only 1 left!

0

39:1

Toro 110-9446

PLUG-MULCH, LH

$23.99

$

In Stock, only 4 left!

0

39:2

Toro 110-9448

LATCH-PLUG, MULCH

$40.99

$

In Stock, only 1 left!

0

39:3

Toro 110-9447

PLUG-MULCH, RH

$10.99

$

In Stock, only 4 left!

0

39:4

Toro 108-7476

SCREW-PLASTITE

$0.99

$

In Stock, Qty 20+

0

39:5

Toro 110-9458

SPRING-EXTENSION

$3.99

$

In Stock, Qty 7

0

39:6

Toro 110-9457

DECAL-PLUG, MULCH

$9.99

$

Usually ships in 3-6 days

0
