20977 - Toro 76cm TimeMaster Walk-Behind Mower (SN: 315000001 - 315999999) (2015) ENGINE AND PULLEY ASSEMBLY Parts Diagram

76cm TimeMaster Walk-Behind Mower

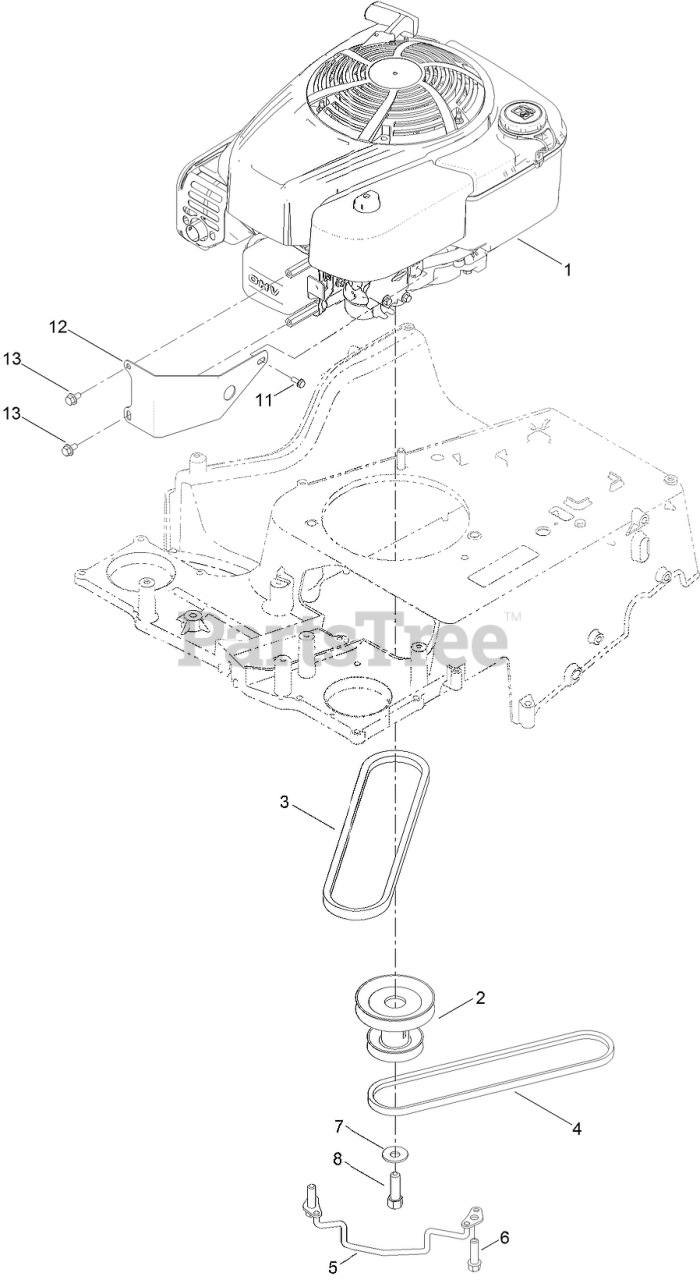

ENGINE AND PULLEY ASSEMBLY Parts Diagram

  • Title

1

ENGINE-BRIGGS, 121S070006F1

Note: Not serviced separately

$

$

Not available

1

ENGINE-BRIGGS, 121S070006F1

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

2

Toro 120-3333

PULLEY-ENGINE
(Superseded to 137-9176)

$58.99

$

In Stock, only 1 left!

0

3

Toro 121-5765

V-BELT

$19.99

$

In Stock, Qty 20+

0

4

Toro 120-9470

V-BELT, TRACTION

$14.99

$

In Stock, Qty 17

0

5

Toro 120-7077

GUIDE-BELT
(Superseded to 139-1734)

$23.99

$

In Stock, Qty 10

0

6

Toro 95-1727

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

7

Toro 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

8

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

11

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 8

0

12

Toro 131-0889-03

GUARD-ENGINE

$10.99

$

Usually ships in 3-6 days

0

13

Toro 126-2713

SCREW-HHF

$5.49

$

In Stock, only 3 left!

0
