20977 - Toro 76cm TimeMaster Walk-Behind Mower (SN: 314000001 - 314999999) (2014) HANDLE ASSEMBLY Parts Diagram

76cm TimeMaster Walk-Behind Mower

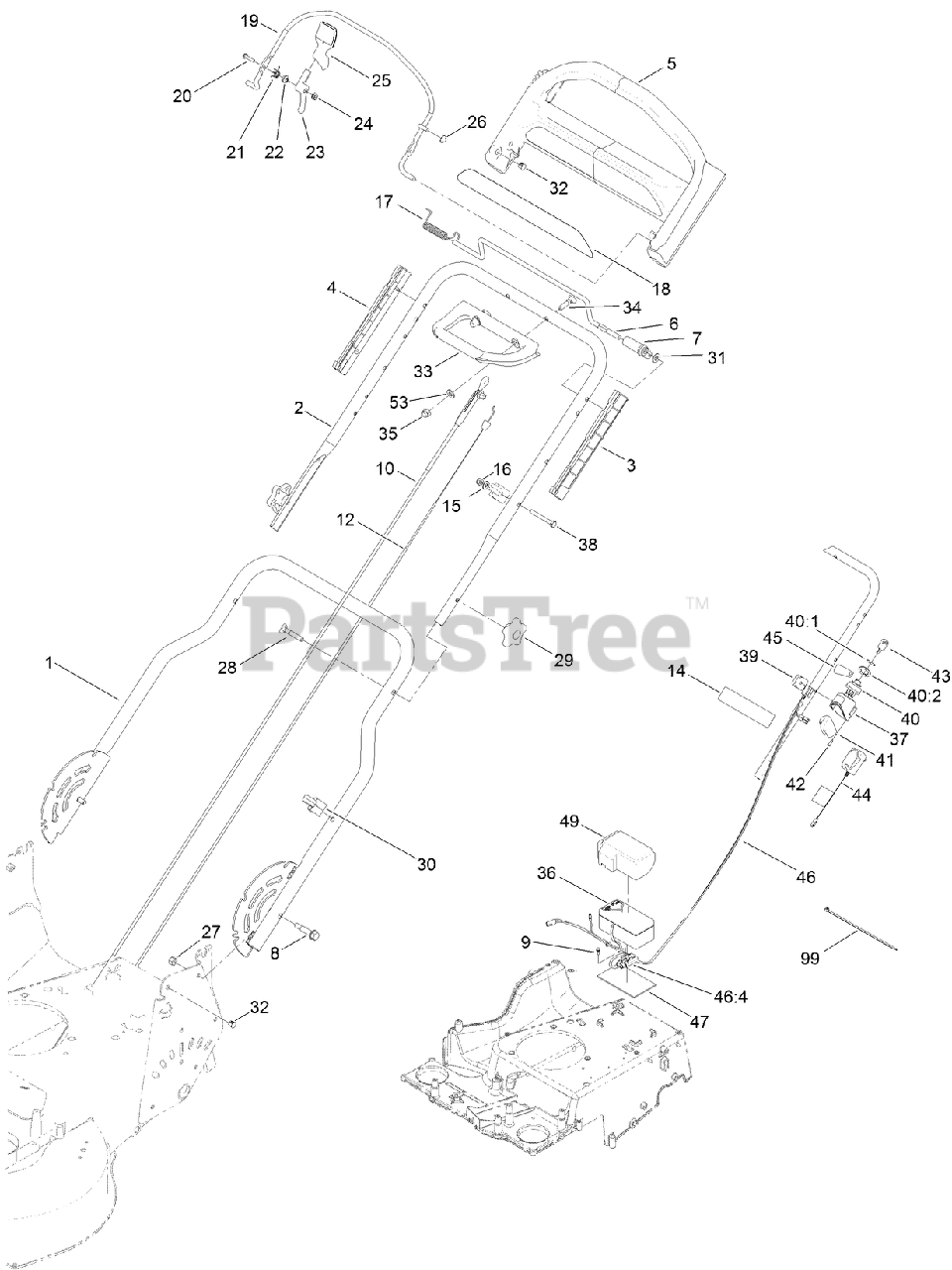

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 120-5204-05

HANDLE-LOWER

$95.99

$

In Stock, only 2 left!

0

2

Toro 121-5783-05

HANDLE-UPPER

$71.99

$

In Stock, only 1 left!

0

3

Toro 105-6842

GUIDE-LH

$8.99

$

In Stock, only 3 left!

0

4

Toro 105-6841

GUIDE-RH

$8.99

$

In Stock, only 3 left!

0

5

Toro 104-8678

HANDLE-CONTROL

$81.99

$

In Stock, only 1 left!

0

6

Toro 99-1588

BAR-CONTROL, TRACTION
(Superseded to 136-7150)

$16.99

$

In Stock, only 1 left!

0

7

Toro 99-1589

LEVER-TRACTION

$7.49

$

In Stock, Qty 16

0

8

Toro 120-7025

BOLT-SHOULDER, HHF

$3.99

$

In Stock, only 3 left!

0

9

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 8

0

10

Toro 120-6243

CABLE-BRAKE, BBC
(Superseded to 133-8158)

$55.99

$

In Stock, Qty 20+

0

12

Toro 127-6867

CABLE-TRACTION

$25.99

$

In Stock, Qty 5

0

14

Toro 104-7953

DECAL-WARNING

$8.99

$

Usually ships in 3-6 days

0

15

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 6

0

17

Toro 121-9118

Spring-Torsion
(Superseded to 136-7166)

$2.99

$

In Stock, Qty 10

0

18

Toro 120-3911

DECAL-HANDLE

$13.99

$

Usually ships in 3-6 days

0

19

Toro 108-3788-03

BAIL-BRAKE

$42.99

$

In Stock, only 1 left!

0

20

Toro 106-9169

SCREW-HWH

$7.99

$

In Stock, only 3 left!

0

21

Toro 107-7462

SPRING-TORSION

$8.49

$

In Stock, only 1 left!

0

22

Toro 107-7463

SPACER

$5.49

$

In Stock, Qty 15

0

23

Toro 106-6802

LEVER
(Superseded to 138-3220)

$2.99

$

In Stock, Qty 9

0

24

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 16

0

25

Toro 112-8884

KNOB

$6.49

$

In Stock, Qty 12

0

26

Toro 3290-337

NUT-SPEED

$1.49

$

In Stock, Qty 20+

0

27

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

28

Toro 92-2260

SCREW-HANDLE

$3.99

$

In Stock, Qty 12

0

29

Toro 117-5976

KNOB-HANDLE

$2.99

$

In Stock, Qty 6

0

30

Toro 114-7988

GUIDE-CABLE

$2.99

$

In Stock, Qty 13

0

31

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

32

Toro 104-9368

Plug-Dome

$0.99

$

In Stock, only 4 left!

0

33

Toro 120-7087

HANDLE-ASSIST, TRACTION

$18.99

$

In Stock, only 1 left!

0

34

Toro 92-4095

SCREW-HANDLE

$6.99

$

In Stock, Qty 5

0

35

Toro 125-5028

NUT-HEX, NYLON CAP

$1.49

$

Usually ships in 3-6 days

0

36

Toro 106-8397

BATTERY-WET

$79.99

$

In Stock, only 2 left!

0

37

Toro 108-3795

HOUSING-SWITCH, KEY

$20.99

$

In Stock, Qty 5

0

38

Toro 321-50

SCREW-HH

$1.99

$

In Stock, Qty 10

0

39

Toro 92-7729

ANCHOR-CABLE, UPPER

$4.99

$

In Stock, Qty 5

0

40

Toro 23-0660

SWITCH-STARTER

$22.99

$

In Stock, only 1 left!

0

40:1

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

40:2

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

41

Toro 108-3796

COVER-SWTCH

$5.49

$

In Stock, only 1 left!

0

42

Toro 32144-111

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

43

Toro 700918

KEY

$6.49

$

In Stock, Qty 11

0

44

Toro 120-3947

CHARGER-CE
(Superseded to 137-9153)

$51.99

$

Usually ships in 3-6 days

0

45

Toro 108-9751

DECAL-SWITCH, IGNITION

$7.99

$

Usually ships in 3-6 days

0

46

Toro 117-0070

HARNESS-WIRE

$131.99

$

Usually ships in 3-6 days

0

46:4

Toro 99-6124

FUSE-40 AMP

$4.99

$

In Stock, Qty 8

0

47

Toro 108-0987

FOAM-BATTERY

$1.99

$

In Stock, only 3 left!

0

49

Toro 120-3329

COVER-BATTERY

$6.49

$

In Stock, only 2 left!

0

53

Toro 71-9320

SPACER

$2.99

$

Usually ships in 3-6 days

0

99

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0
