20975 - Toro 76cm TimeMaster Walk-Behind Mower (SN: 316000001 - 316999999) (2016) HANDLE ASSEMBLY Parts Diagram

76cm TimeMaster Walk-Behind Mower

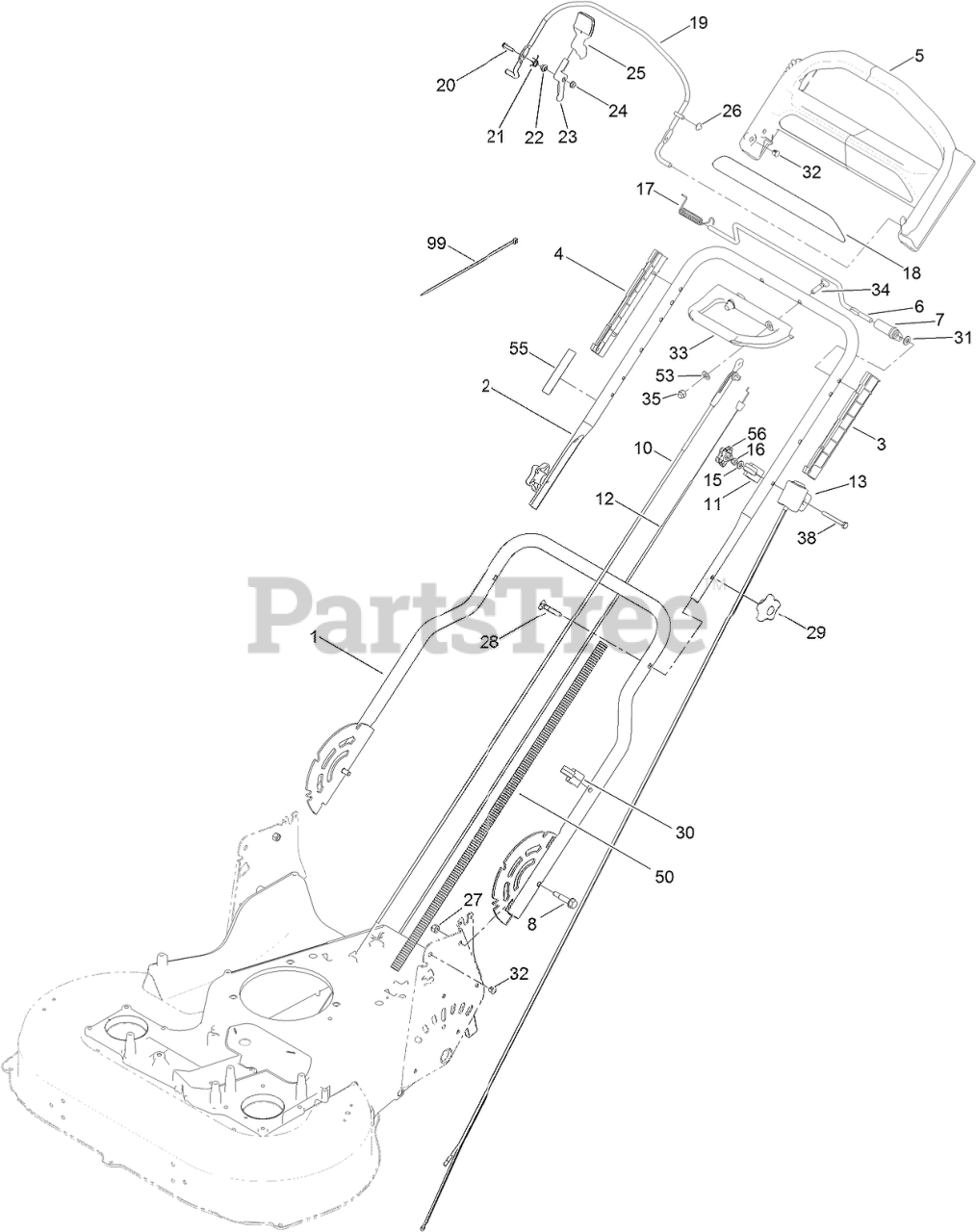

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 120-5204-05

HANDLE-LOWER

$98.99

$

In Stock, only 2 left!

0

2

Toro 121-5783-05

HANDLE-UPPER

$174.99

$

In Stock, only 3 left!

0

3

Toro 105-6842

GUIDE-LH

$8.99

$

In Stock, Qty 7

0

4

Toro 105-6841

GUIDE-RH

$8.99

$

In Stock, only 1 left!

0

5

Toro 104-8678

HANDLE-CONTROL

$83.99

$

In Stock, Qty 8

0

6

Toro 99-1588

BAR-CONTROL, TRACTION
(Superseded to 136-7150)

$17.99

$

In Stock, only 1 left!

0

7

Toro 127-6842

LEVER-TRACTION

$4.49

$

In Stock, only 1 left!

0

8

Toro 120-7025

BOLT-SHOULDER, HHF

$3.99

$

In Stock, Qty 12

0

10

Toro 120-6243

CABLE-BRAKE, BBC
(Superseded to 133-8158)

$60.99

$

In Stock, Qty 20+

0

11

Toro 99-5239

ANCHOR-CABLE
(Superseded to 136-5864)

$2.99

$

In Stock, Qty 20+

0

12

Toro 127-6867

CABLE-TRACTION

$27.99

$

In Stock, Qty 20+

0

13

Toro 117-5975

SWITCH HOUSING ASM

$19.99

$

In Stock, Qty 20+

0

15

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 8

0

17

Toro 121-9118

Spring-Torsion
(Superseded to 136-7166)

$3.49

$

In Stock, Qty 20+

0

18

Toro 120-3911

DECAL-HANDLE

$15.99

$

Usually ships in 3-6 days

0

19

Toro 108-3788-03

BAIL-BRAKE

$43.99

$

In Stock, Qty 6

0

20

Toro 106-9169

SCREW-HWH

$7.99

$

In Stock, Qty 5

0

21

Toro 107-7462

SPRING-TORSION

$8.49

$

In Stock, Qty 7

0

22

Toro 107-7463

SPACER

$3.49

$

In Stock, Qty 15

0

23

Toro 106-6802

LEVER
(Superseded to 138-3220)

$2.99

$

In Stock, Qty 19

0

24

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 17

0

25

$6.49

$

In Stock, Qty 12

0

26

Toro 3290-337

NUT-SPEED

$1.49

$

In Stock, Qty 20+

0

27

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

28

Toro 92-2260

SCREW-HANDLE

$3.99

$

In Stock, Qty 20+

0

29

Toro 117-5976

KNOB-HANDLE

$2.99

$

In Stock, Qty 13

0

30

Toro 114-7988

GUIDE-CABLE

$2.99

$

In Stock, Qty 20+

0

31

Toro 130-2343

SPACER

$1.49

$

In Stock, Qty 20+

0

32

Toro 104-9368

Plug-Dome

$0.99

$

In Stock, only 4 left!

0

33

Toro 120-7087

HANDLE-ASSIST, TRACTION

$19.99

$

In Stock, only 1 left!

0

34

Toro 130-2356

SCREW-HANDLE, LOCK

$1.99

$

Usually ships in 3-6 days

0

35

Toro 130-2341

NUT-ACORN

$1.49

$

Usually ships in 3-6 days

0

38

Toro 321-50

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

50

Toro 121-5801

CONDUIT-CONVOLUTED

$4.99

$

Usually ships in 3-6 days

0

53

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

55

Toro 131-0894

DECAL-TRACTION, ADJUST
(Superseded to 132-4470)

$2.49

$

In Stock, only 1 left!

0

56

Toro 131-0897

KNOB-HANDLE, LOCKING

$4.49

$

In Stock, Qty 6

0

99

Toro 614249

TIE-CABLE

$1.49

$

In Stock, only 2 left!

0
