2096594 - Simplicity Shear Bolt Type PTO Shafts & Joints - Shear Bolt Type Group (3482I117) Parts Diagram

Shear Bolt Type

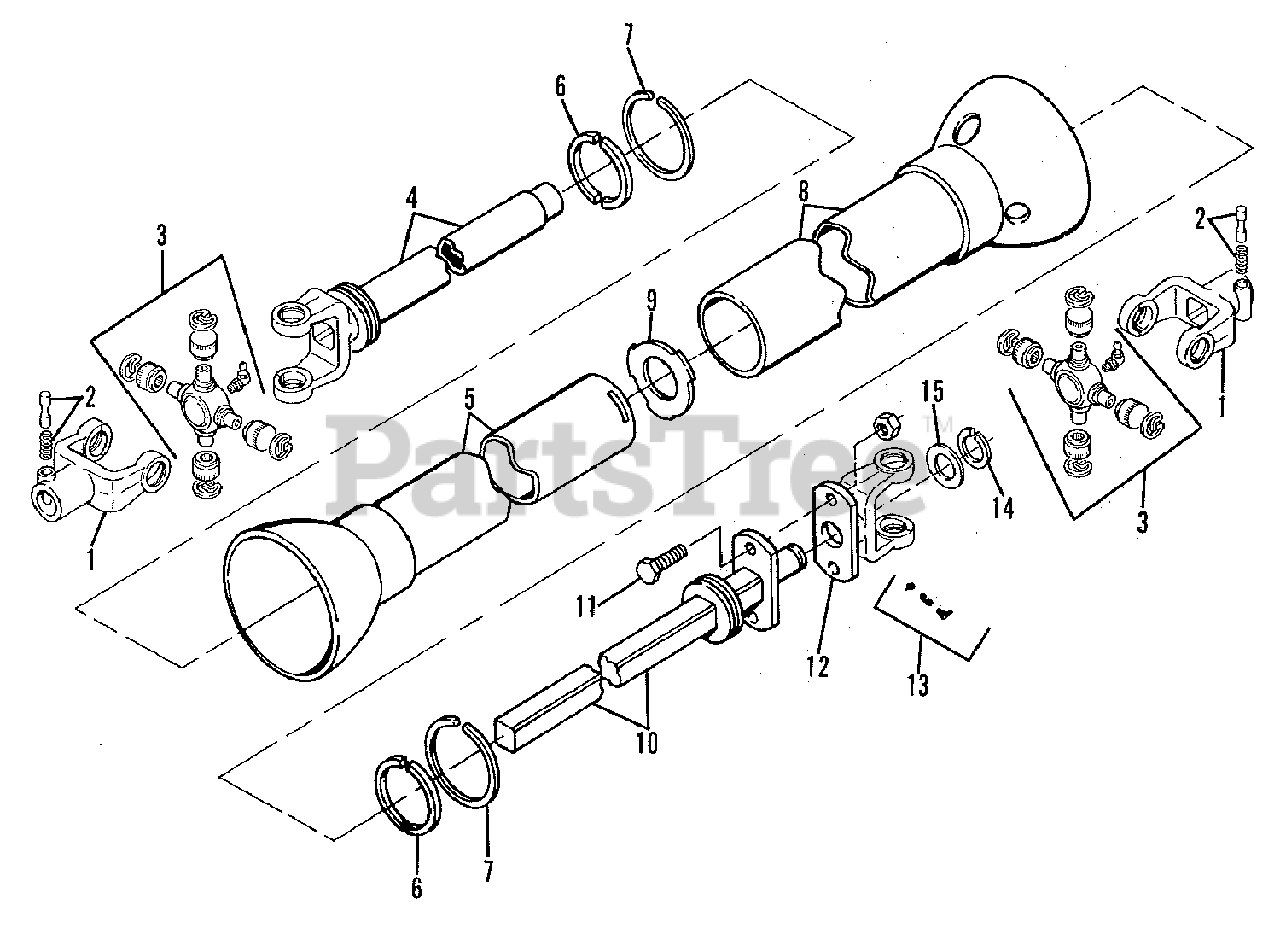

PTO Shafts & Joints - Shear Bolt Type Group (3482I117) Parts Diagram

  • Title

1

Simplicity 2096572-9

YOKE ASSEMBLY

$

$

Not available

2

Simplicity 2096573-7

SPRING ASSEMBLY

$

$

Not available

3

Simplicity 2096574-5

U-JOINT KIT

$

$

Not available

4

Simplicity 2096597-6

TUBE ASSEMBLY (Implement End)

$

$

Not available

5

Simplicity 2096598-4

TUBE, Inner Shield)

$

$

Not available

6

Simplicity 2096576-0

RETAINER, Bearing

$

$

Not available

7

Simplicity 2096577-8

BEARING, Shaft

$

$

Not available

8

Simplicity 2096599-2

TUBE, Outer Shield

$

$

Not available

9

Simplicity 2096579-4

CENTRALIZER, Tube

$

$

Not available

10

Simplicity 2096589-3

SHAFT ASSEMBLY, Shear Flange

$

$

Not available

11

Simplicity 2096600-8

BOLT, Shear

$

$

Not available

11

Simplicity 0923358-6

NUT, Lock, 1/4NC

$

$

Not available

12

Simplicity 2096590-1

YOKE ASSEMBLY, Shear Flange

$

$

Not available

13

Simplicity 2096591-9

FITTING KIT, Lube

$

$

Not available

14

Simplicity 2096592-7

RING, Shaft Retaining

$

$

Not available

15

Simplicity 2096601-6

WASHER, Shaft

$

$

Not available
