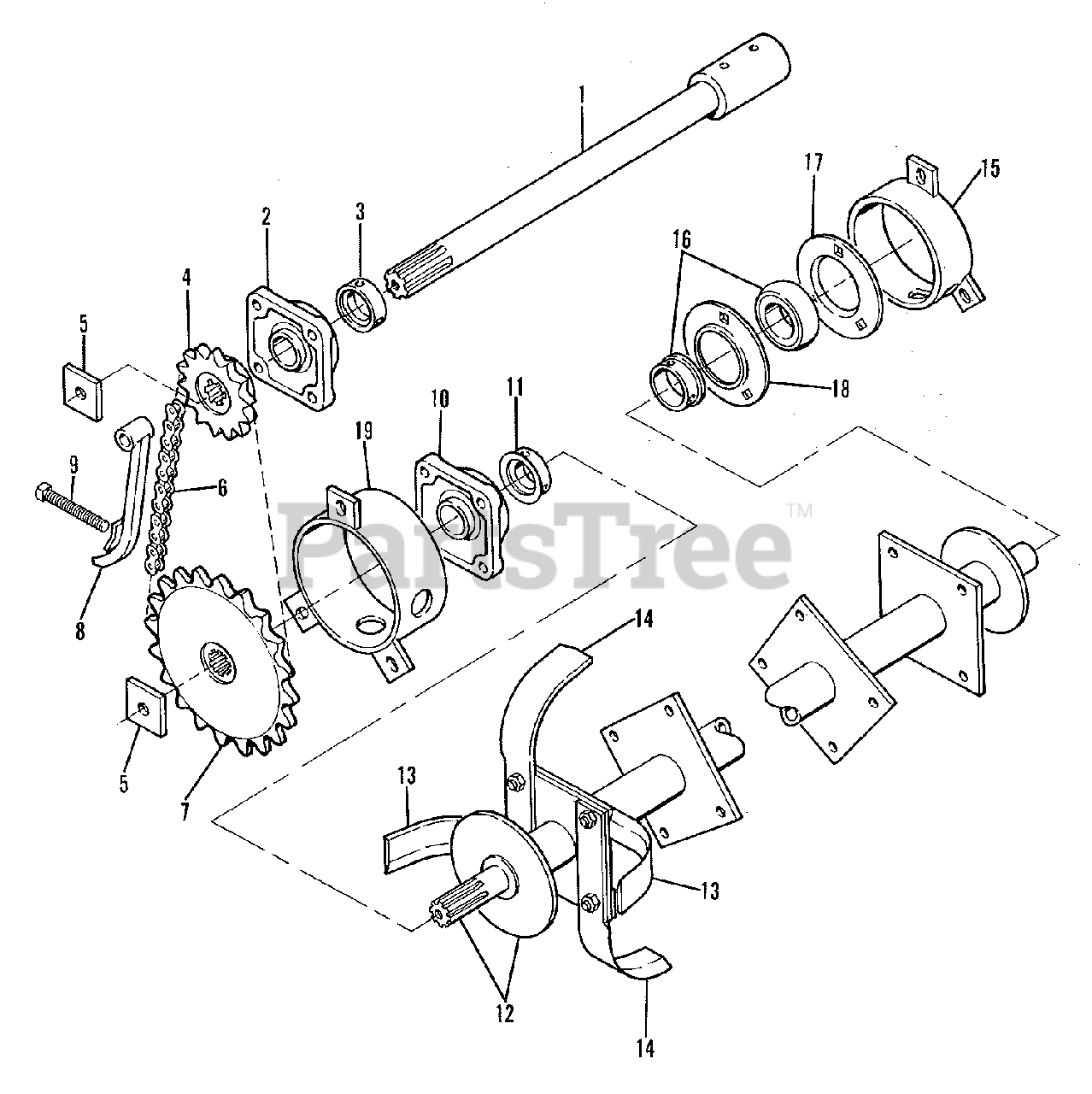

2096501 - Simplicity Model 66 Rotor Tiller Rotor Drive Group (3482I120) Parts Diagram

Model 66 Rotor Tiller

Rotor Drive Group (3482I120) Parts Diagram

  • Title

1

Simplicity 2096530-7

JACKSHAFT

$

$

Not available

1

Simplicity 093082-6

KEY, Square, 3/8 x 2

$

$

Not available

1

Simplicity 0920469-4

SETSCREW, Square Head, Cup Point, 3/8NC x 3/4

$

$

Not available

1

Simplicity 0917421-0

NUT, Jam, 3/8NC

$

$

Not available

2

Simplicity 2096531-5

BEARING ASSEMBLY, Flange, 1-3/8

$

$

Not available

3

Simplicity 2096532-3

COLLAR, Bearing, 1-3/8

$

$

Not available

3

Simplicity 0910214-6

SETSCREW, Socket Head, Cup Point, 5/16NF x 3/8

$

$

Not available

4

Simplicity 2096533-1

SPROCKET, Upper (13T)

$

$

Not available

5

Simplicity 2096534-9

RETAINER, Sprocket

$

$

Not available

5

Simplicity 0921210-1

CAPSCREW, 3/8NC x 1

$

$

Not available

5

Simplicity 0920539-4

CAPSCREW, Nylok Insert, 3/8NC x 1

$

$

Not available

5

Simplicity 0919312-9

LOCKWASHER, 3/8

$

$

Not available

6

Simplicity 2096535-6

CHAIN ASSEMBLY, Drive (45 Link)

$

$

Not available

6

Simplicity 2096536-4

LINK, Connecting

$

$

Not available

6

Simplicity 2096537-2

LINK, Offset

$

$

Not available

7

Simplicity 2096538-0

SPROCKET, Lower (20T)

$

$

Not available

8

Simplicity 2096539-8

SLIDE, Chain

$

$

Not available

9

Simplicity 2096540-6

SCREW, Adjusting

$

$

Not available

9

Simplicity 0923353-7

NUT, Lock, 5/8NC

$

$

Not available

10

Simplicity 2096541-4

BEARING ASSEMBLY, Flange, 1-1/2

$

$

Not available

11

Simplicity 2096542-2

COLLAR, Bearing, 1-1/2

$

$

Not available

12

Simplicity 2096543-0

SHAFT ASSEMBLY, Rotor

$

$

Not available

13

Simplicity 2096544-8

BLADE, L.H.

$

$

Not available

13

Simplicity 2096546-3

BOLT, Blade

$

$

Not available

14

Simplicity 2096545-5

BLADE, R.H.

$

$

Not available

14

Simplicity 2096546-3

BOLT, Blade

$

$

Not available

15

Simplicity 2096547-1

COVER ASSEMBLY, Anti-Trash

$

$

Not available

15

Simplicity 0921210-1

CAPSCREW, 3/8NC x 1

$

$

Not available

15

Simplicity 0928352-4

NUT, Lock, 3/8NC

$

$

Not available

16

Simplicity 2096548-9

BEARING, Support

$

$

Not available

16

COLLAR, Locking

$

$

Not available

16

Simplicity 0912236-7

SETSCREW, Socket Head, Cup Point, 5/16NC x 1/2

$

$

Not available

17

Simplicity 2096550-5

HOUSING, Bearing (w/Lube Fitting)

$

$

Not available

17

Simplicity 0931349-5

BOLT, Carriage, 3/8NC x 7/8

$

$

Not available

17

Simplicity 0928352-4

NUT, Lock, 3/8NC

$

$

Not available

18

Simplicity 2096551-3

HOUSING, Bearing (w/o Lube Fitting)

$

$

Not available

19

Simplicity 2096552-1

COVER ASSEMBLY, Anti-Trash, L.H.

$

$

Not available

19

Simplicity 0921210-1

CAPSCREW, 3/8NC x 1

$

$

Not available

19

Simplicity 0928352-4

NUT, Lock, 3/8NC

$

$

Not available
