2096501 - Simplicity Model 66 Rotor Tiller Gearbox Group (3482I119) Parts Diagram

Model 66 Rotor Tiller

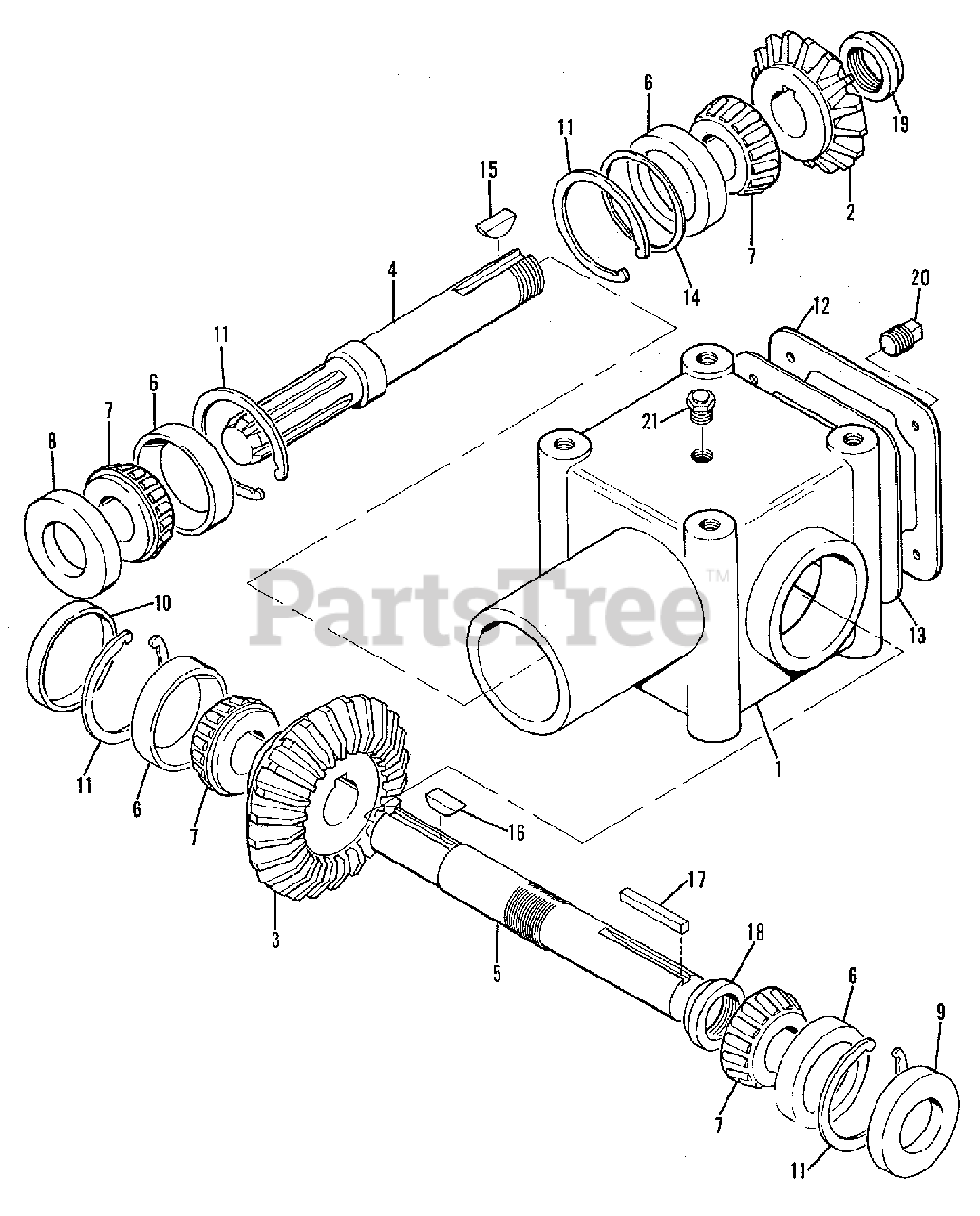

Gearbox Group (3482I119) Parts Diagram

  • Title

-

Simplicity 2096553-9

GEARBOX ASSEMBLY, Complete

$

$

Not available

1

Simplicity 2096554-7

GEARBOX ASSEMBLY

$

$

Not available

2

Simplicity 2096555-4

GEAR, Pinion (16T)

$

$

Not available

3

Simplicity 2096556-2

GEAR, Pinion (24T)

$

$

Not available

4

Simplicity 2096557-0

SHAFT, Input (w/Splines)

$

$

Not available

5

Simplicity 2096558-8

SHAFT, Output

$

$

Not available

6

Simplicity 0209890-3

CUP, Bearing

$

$

Not available

7

Simplicity 0211999-8

CONE, Bearing

$

$

Not available

8

Simplicity 2096559-6

SEAL, Oil, Input Shaft

$

$

Not available

9

Simplicity 2096560-4

SEAL, Oil, Output Shaft

$

$

Not available

10

Simplicity 2096561-2

CAP

$

$

Not available

11

Simplicity 2096562-0

RING, Retaining

$

$

Not available

12

Simplicity 2096563-8

PLATE, Cover

$

$

Not available

12

Simplicity 0925205-7

CAPSCREW, 5/16NC x 5/8

$

$

Not available

13

Simplicity 2096564-6

GASKET, Cover

$

$

Not available

14

Simplicity 2096565-3

SHIM

$

$

Not available

15

Simplicity 2096566-1

KEY, Input Shaft

$

$

Not available

16

Simplicity 2096567-9

KEY, Output Shaft

$

$

Not available

17

Simplicity 0903082-6

KEY, Output Shaft, 3/8 Square x 2" Lg.

$

$

Not available

18

Simplicity 2096568-7

NUT, Stake, Output Shaft

$

$

Not available

19

Simplicity 2096569-5

NUT, Stake, Input Shaft

$

$

Not available

20

Simplicity 2096570-3

PLUG, Level

$

$

Not available

21

Simplicity 2096571-1

PLUG, Vent

$

$

Not available
