20964 - Toro 55cm Recycler Walk-Behind Mower (SN: 400000000 - 999999999) HANDLE ASSEMBLY Parts Diagram

55cm Recycler Walk-Behind Mower

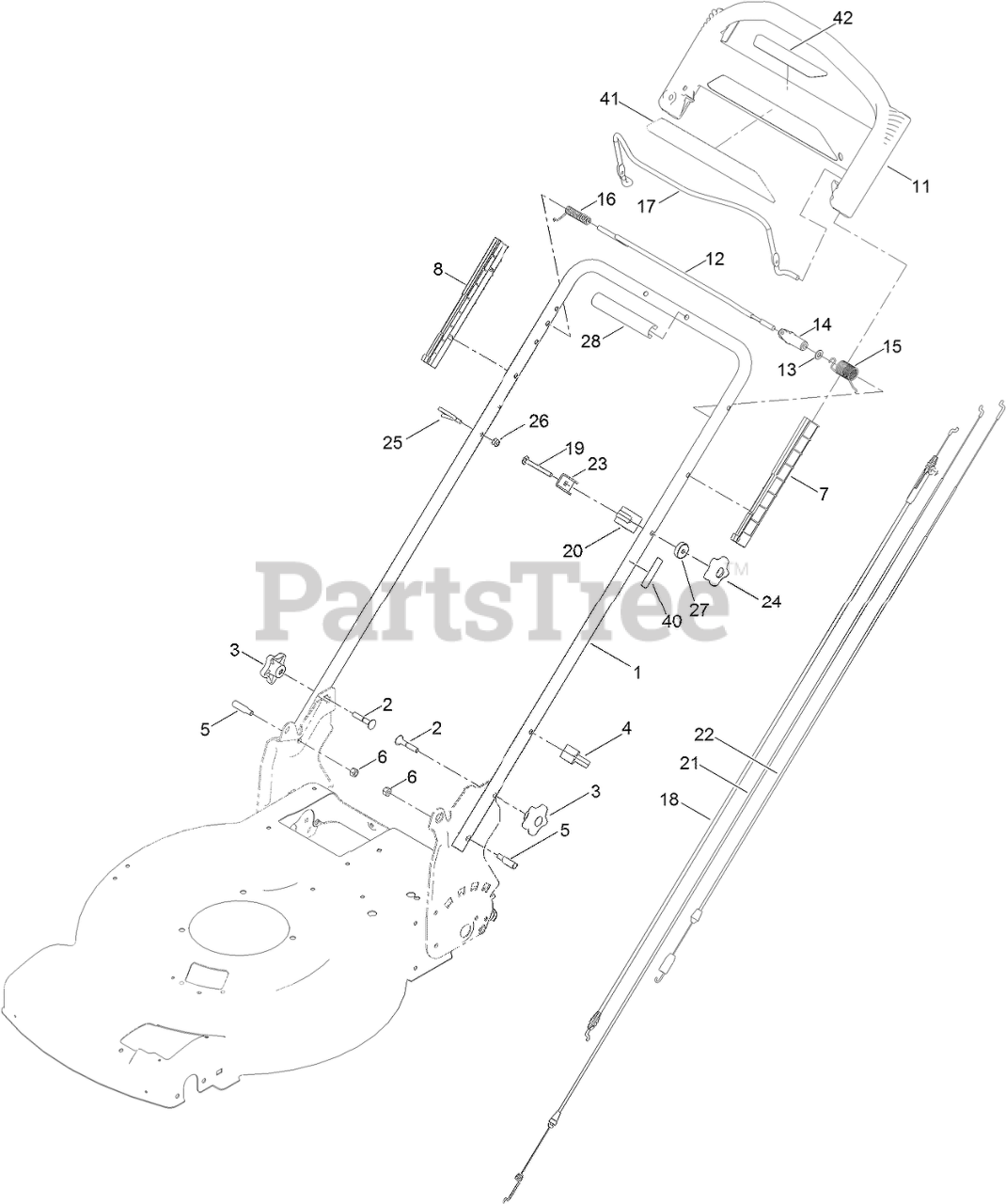

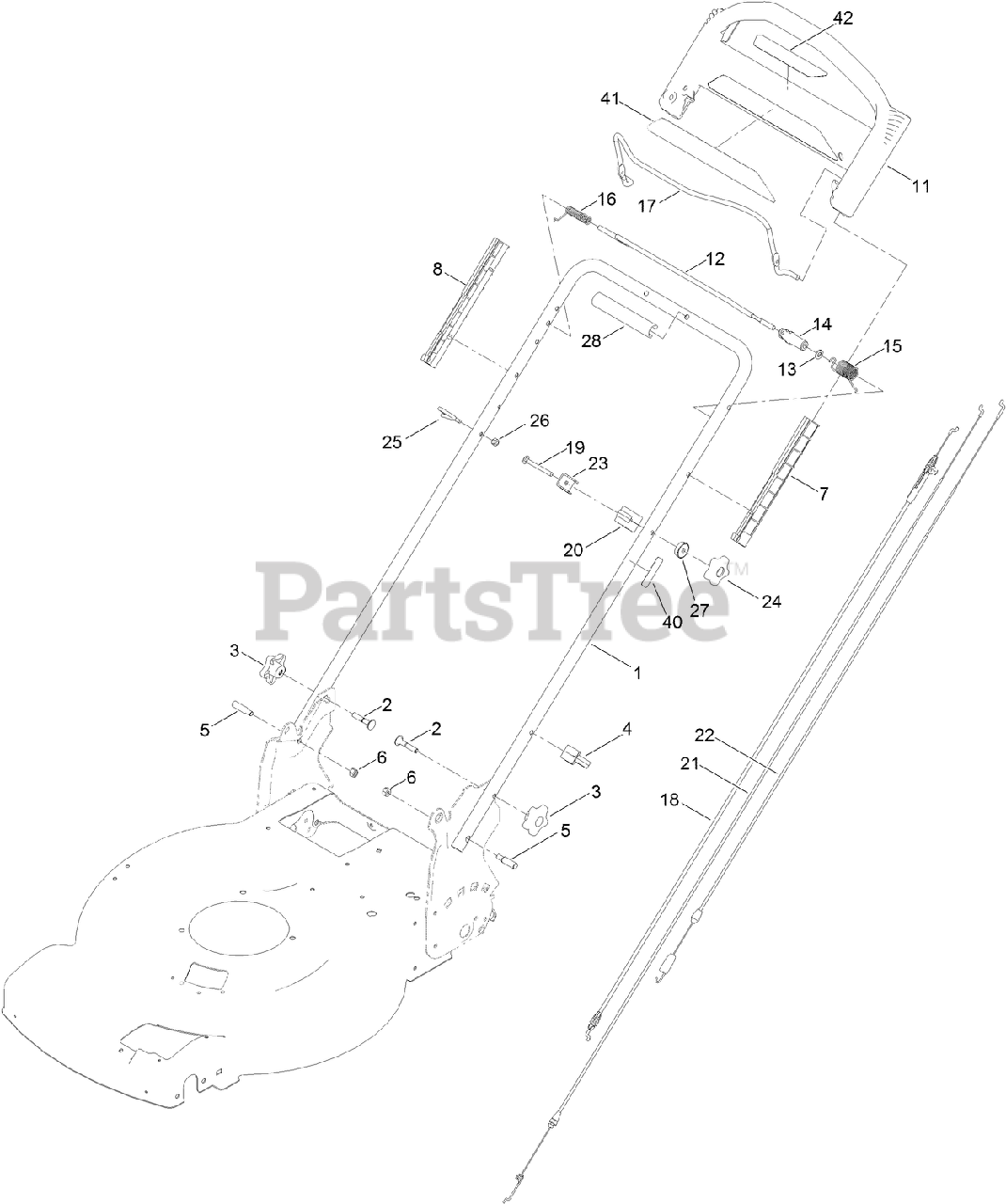

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 131-9695-05

HANDLE

$98.99

$

In Stock, only 1 left!

0

2

Toro 131-9663

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

3

Toro 117-5976

KNOB-HANDLE

$2.99

$

In Stock, Qty 15

0

4

Toro 114-7988

GUIDE-CABLE

$2.99

$

In Stock, Qty 7

0

5

Toro 131-4591

BOLT-SHOULDER

$1.99

$

In Stock, Qty 8

0

6

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

7

Toro 136-5879

GUIDE-LH

$8.99

$

Usually ships in 3-6 days

0

8

Toro 136-5880

GUIDE-RH

$8.99

$

Usually ships in 3-6 days

0

11

Toro 136-5877

HANDLE-PACE, PERSONAL

$34.99

$

Usually ships in 3-6 days

0

12

Toro 99-1588

BAR-CONTROL, TRACTION
(Superseded to 136-7150)

$17.99

$

In Stock, only 1 left!

0

13

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

14

Toro 136-5878

LEVER-TRACTION

$5.49

$

In Stock, only 1 left!

0

15

Toro 136-5883

SPRING-TORSION

$4.99

$

Usually ships in 3-6 days

0

16

Toro 121-9118

Spring-Torsion
(Superseded to 136-7166)

$3.49

$

In Stock, Qty 6

0

17

Toro 131-0880-03

BAIL-BRAKE

$25.99

$

In Stock, only 1 left!

0

18

Toro 115-8437

CABLE-BRAKE

$36.99

$

In Stock, Qty 20+

0

19

Toro 92-2269

SCREW-HANDLE

$6.49

$

Usually ships in 3-6 days

0

20

Toro 130-6716

MOUNT-CABLE, TRACTION

$3.99

$

Usually ships in 3-6 days

0

21

Toro 136-5891

CABLE-TRACTION, FRONT

$18.99

$

Usually ships in 3-6 days

0

22

Toro 136-5892

CABLE-TRACTION, REAR

$18.99

$

In Stock, only 1 left!

0

23

Toro 136-5922

CLAMP-CABLE

$3.99

$

In Stock, Qty 18

0

24

Toro 131-0897

KNOB-HANDLE, LOCKING

$4.49

$

In Stock, Qty 6

0

25

Toro 86-9671

GUIDE-ROPE

$4.49

$

In Stock, Qty 5

0

26

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, only 3 left!

0

27

Toro 136-9075

WASHER-CURVED

$1.49

$

In Stock, only 2 left!

0

28

Toro 131-4551

HANDLE-COVER

$1.49

$

Usually ships in 3-6 days

0

40

Toro 136-9096

DECAL-ADJUSTMENT

$2.49

$

Usually ships in 3-6 days

0

41

Toro 136-9138

DECAL-POWEREVERSE

$6.99

$

Usually ships in 3-6 days

0

42

Toro 136-5899

DECAL-INSTRUCTION, DRIVE

$6.49

$

Usually ships in 3-6 days

0
