20964 - Toro 55cm Recycler Walk-Behind Mower (SN: 400000000 - 999999999) FRONT WHEEL AND HEIGHT-OF-CUT ASSEMBLY Parts Diagram

55cm Recycler Walk-Behind Mower

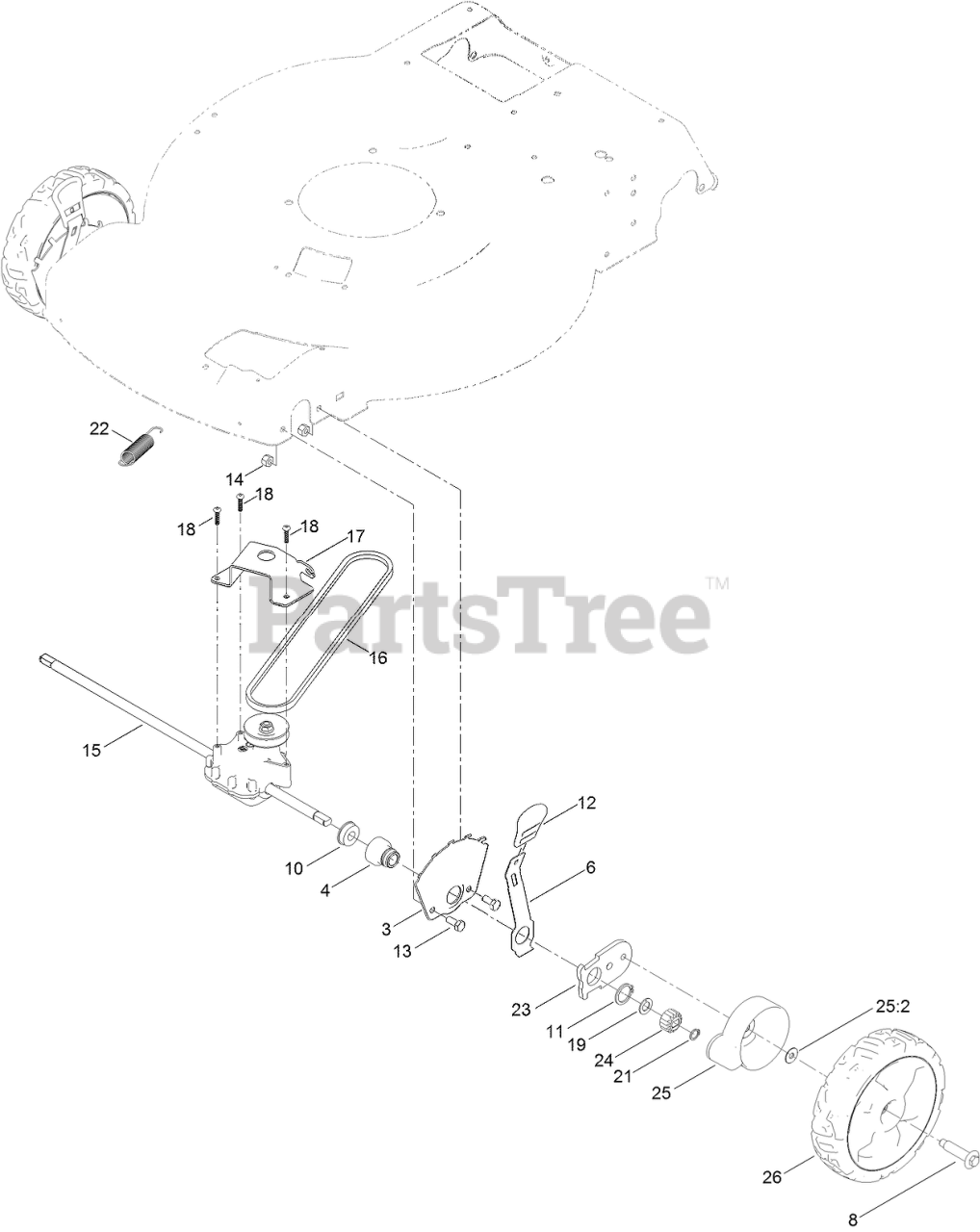

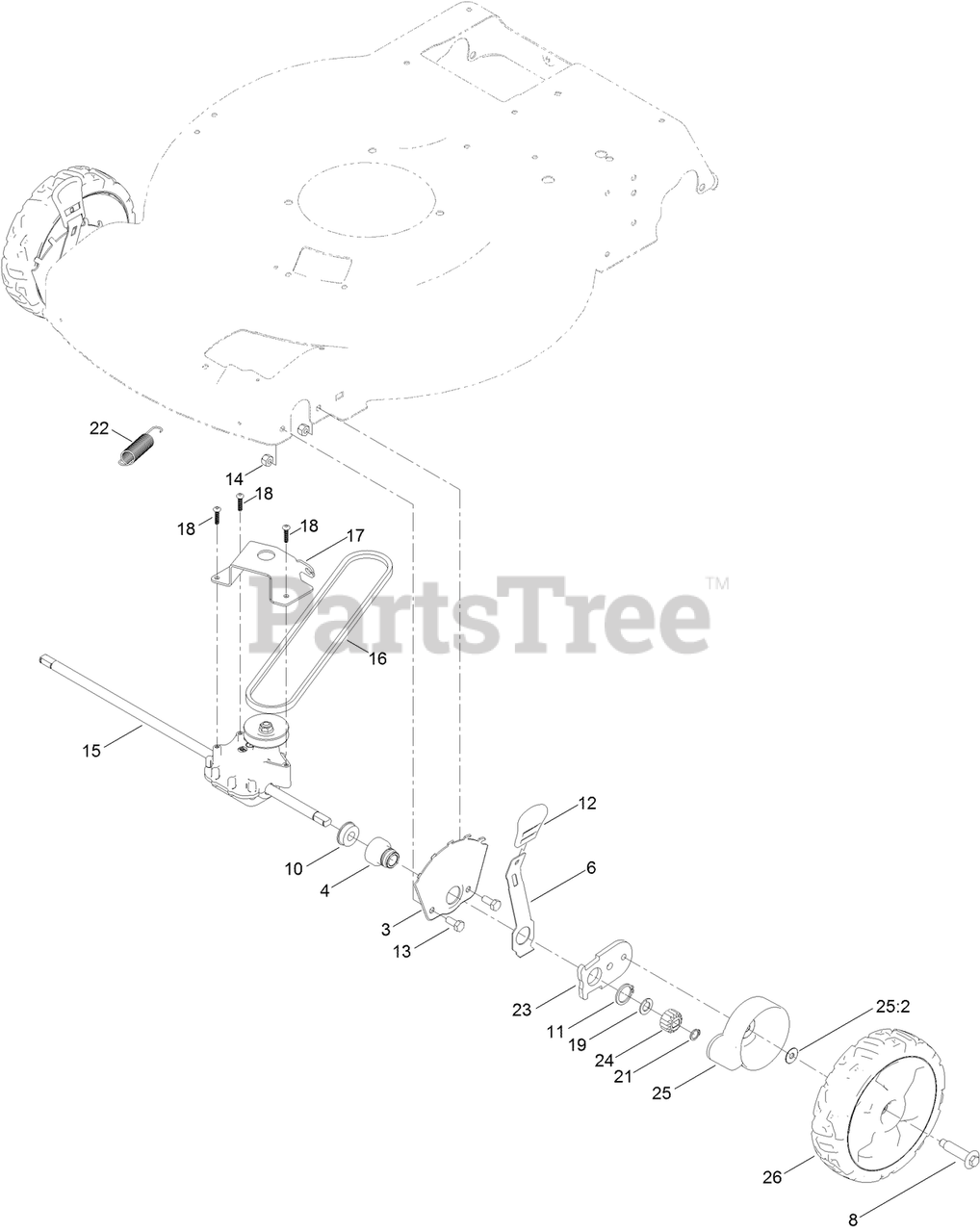

FRONT WHEEL AND HEIGHT-OF-CUT ASSEMBLY Parts Diagram

  • Title

3

Toro 115-1956-03

PLATE-HOC, FRONT

$10.99

$

In Stock, Qty 8

0

4

Toro 131-0836

RETAINER-BEARING, HOC

$14.99

$

In Stock, Qty 5

0

6

Toro 105-1809

Arm-Spring

$11.99

$

Usually ships in 3-6 days

0

8

Toro 614650

BOLT-SHOULDER

$4.49

$

Usually ships in 3-6 days

0

10

Toro 104-8699

BEARING-BALL

$4.99

$

In Stock, Qty 20+

0

11

Toro 32151-36

RING-RETAINING

$4.99

$

In Stock, Qty 10

0

12

Toro 110-0549

KNOB-HOC

$1.49

$

In Stock, Qty 20+

0

13

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 16

0

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 137-4823

TRANSMISSION

$110.99

$

In Stock, only 1 left!

0

16

Toro 71-9450

V-BELT

$23.99

$

In Stock, only 4 left!

0

17

Toro 114-7978-03

BRACKET-TRANSMISSION

$11.99

$

In Stock, only 1 left!

0

18

Toro 108-7476

SCREW-PLASTITE

$0.99

$

In Stock, Qty 10

0

19

Toro 110-7191

WASHER-THRUST

$2.99

$

In Stock, Qty 20+

0

21

Toro 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

22

Toro 136-7059

SPRING-EXTENSION

$3.99

$

Usually ships in 3-6 days

0

23

Toro 136-5886

ARM-PIVOT, FRONT

$12.99

$

Usually ships in 3-6 days

0

24

Toro 131-5399

GEAR-PINION, 15T

$5.49

$

In Stock, Qty 20+

0

25

Toro 136-9057

GEAR COVER ASM

$5.99

$

In Stock, Qty 5

0

25:2

Toro 614426

WASHER-STEPPED

$3.49

$

In Stock, Qty 20+

0

26

Toro 130-6714

WHEEL GEAR ASM, 8IN

$46.99

$

In Stock, only 2 left!

0
