2096175 - Simplicity Model 415 Loader Hydraulic Lines - Boom End to Control Valve Group (3482I28) Parts Diagram

Model 415 Loader

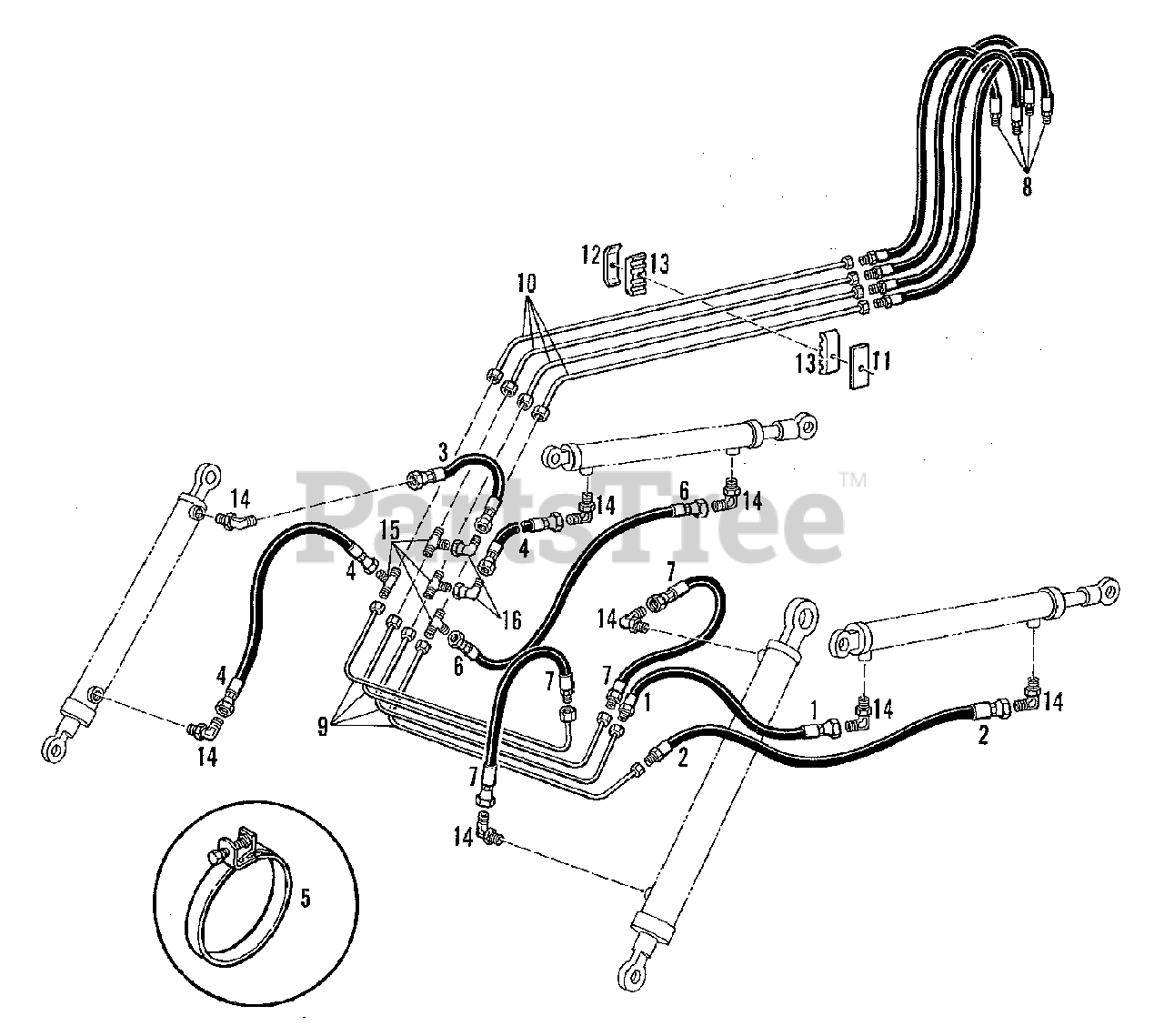

Hydraulic Lines - Boom End to Control Valve Group (3482I28) Parts Diagram

  • Title

1

Simplicity 2096123-1

HOSE ASSEMBLY (Left Lift Cylinder at Base End Position)

$

$

Not available

2

Simplicity 2096124-9

HOSE ASSEMBLY (Left Lift Cylinder at Rod End Position)

$

$

Not available

3

Simplicity 2096128-0

HOSE ASSEMBLY (Right Tilt Cylinder at Base End Position)

$

$

Not available

4

Simplicity 2096129-8

HOSE ASSEMBLY (Right Tilt Cylinder at Rod End Position & Right Lift Cylinder at Base End Position)

$

$

Not available

5

Simplicity 2096042-3

CLAMP, Hose (Attached to Lift Cylinder Barrel to Secure Hoses)

$

$

Not available

6

Simplicity 2096223-9

HOSE ASSEMBLY (Right Lift Cylinder at Rod End Position)

$

$

Not available

7

Simplicity 2096131-4

HOSE ASSEMBLY (Left Tilt Cylinder at Base & Rod Positions)

$

$

Not available

8

Simplicity 2096134-8

HOSE ASSEMBLY, Valve Operating

$

$

Not available

9

Simplicity 2096056-3

TUBE ASSEMBLY, Cross

$

$

Not available

10

Simplicity 2096179-3

TUBE ASSEMBLY, Side

$

$

Not available

11

Simplicity 2096058-9

CLAMP, Tube (Mounts on Studs Welded on Boom Assembly)

$

$

Not available

11

Simplicity 0917356-8

LOCKWASHER, 5/16

$

$

Not available

11

Simplicity 0917372-5

NUT, 5/16NC

$

$

Not available

12

Simplicity 2096059-7

BRACKET, Clamp

$

$

Not available

13

Simplicity 2096060-5

CUSHION, Clamp

$

$

Not available

14

Simplicity 0922523-6

ELBOW, Hose Adapter, 3/8 Tube O.D.

$

$

Not available

14

Simplicity 0921885-0

O-RING, 15/32 I.D.

$

$

Not available

15

Simplicity 0919087-7

TEE, 3/8 Tube O.D.

$

$

Not available

16

Simplicity 0921013-9

ELBOW, Swivel Adapter, 3/8 Tube O.D.

$

$

Not available
