2096175 - Simplicity Model 415 Loader Frames - Side Frames & Supports Group (3482I26) Parts Diagram

Model 415 Loader

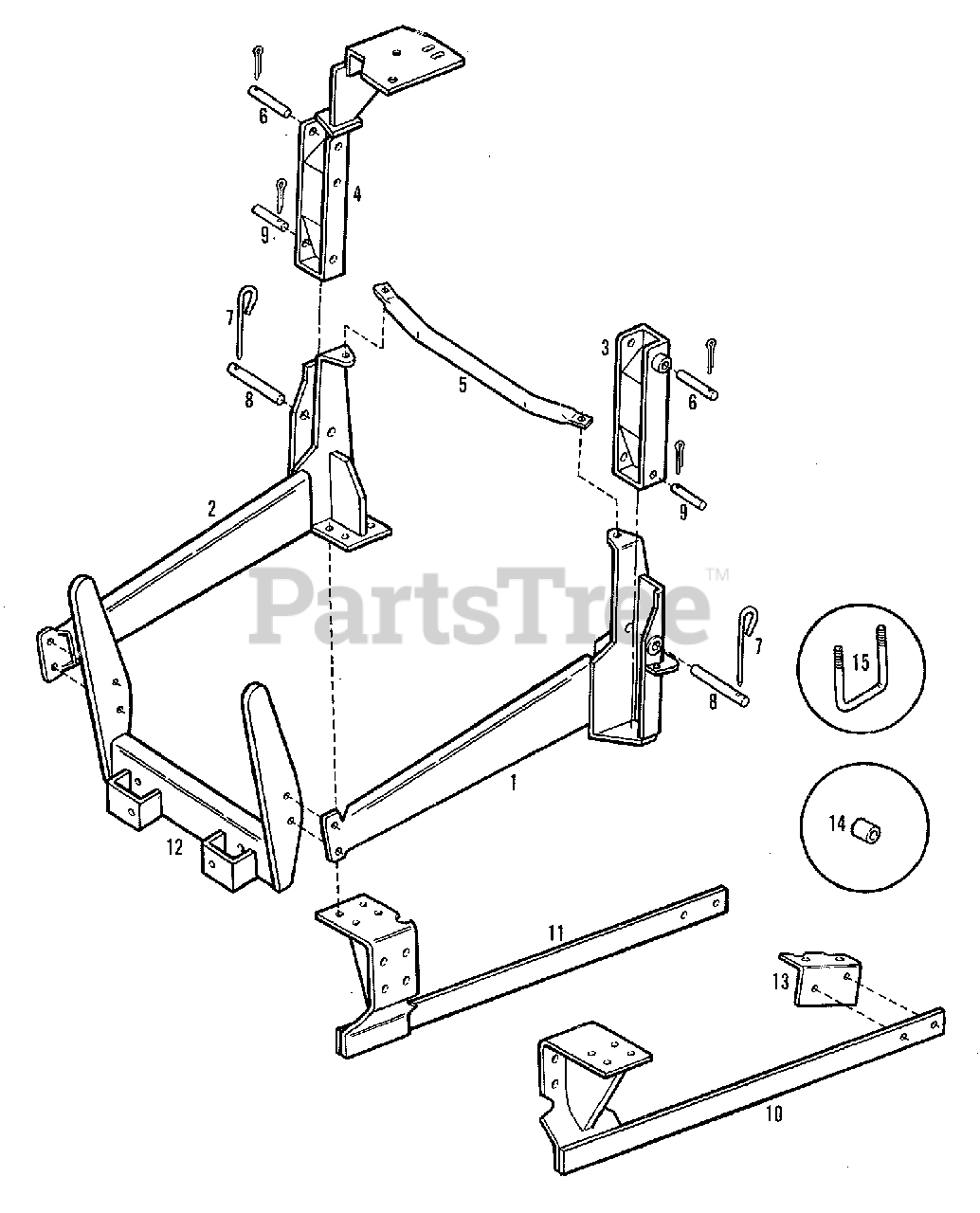

Frames - Side Frames & Supports Group (3482I26) Parts Diagram

  • Title

1

Simplicity 2096186-8

FRAME ASSEMBLY, L.H.

$

$

Not available

1

Simplicity 0920328-2

CAPSCREW, 1/2NC x 1-1/2

$

$

Not available

1

Simplicity 0924360-1

WASHER, Plain, 17/32 x 1-1/4 x 14 GA

$

$

Not available

1

Simplicity 0916966-5

LOCKWASHER, 1/2

$

$

Not available

1

Simplicity 0916951-7

NUT, 1/2NC

$

$

Not available

2

Simplicity 2096187-6

FRAME ASSEMBLY, R.H.

$

$

Not available

2

Simplicity 0920328-2

CAPSCREW, 1/2NC x 1-1/2

$

$

Not available

2

Simplicity 0924360-1

WASHER, Plain 17/32 x 1 x 14 Ga.

$

$

Not available

2

Simplicity 0916966-5

LOCKWASHER, 1/2

$

$

Not available

2

Simplicity 0916951-7

NUT, 1/2NC

$

$

Not available

3

Simplicity 2096076-1

SUPPORT ASSEMBLY, L.H.

$

$

Not available

4

Simplicity 2096077-9

SUPPORT ASSEMBLY, R.H.

$

$

Not available

5

Simplicity 2096177-7

BRACE, Cross

$

$

Not available

5

Simplicity 0920328-2

CAPSCREW, 1/2NC x 1-1/2

$

$

Not available

5

Simplicity 0916966-5

LOCKWASHER, 1/2

$

$

Not available

5

Simplicity 0916951-7

NUT, 1/2NC

$

$

Not available

6

Simplicity 2096063-9

PIN, Boom Pivot

$

$

Not available

6

Simplicity 0918551-3

PIN, Cotter, 1/4 x 2

$

$

Not available

7

Simplicity 2096071-2

PIN, Locking, Support Assembly

$

$

Not available

8

Simplicity 2096065-4

PIN, Attaching, Support Assembly

$

$

Not available

9

Simplicity 2096064-7

PIN, Cotter, 1/4 x 2

$

$

Not available

9

Simplicity 0918551-3

PIN, Cylinder, Rear

$

$

Not available

10

Simplicity 2096188-4

PAD ASSEMBLY, Mounting, L.H. (Prior to S/N 1199)

$

$

Not available

10

Simplicity 2096235-3

PAD ASSEMBLY, Mounting, L.H. (Eff. S/N 1199 & Up)

$

$

Not available

10

Simplicity 2096234-6

CAPSCREW, 12MM x 1-1/2 x 35MM

$

$

Not available

10

Simplicity 0921024-6

CAPSCREW, 1/2NC x 2

$

$

Not available

10

Simplicity 0924360-1

WASHER, Plain, 17/32 x 1 x 14 GA

$

$

Not available

10

Simplicity 0916966-5

LOCKWASHER, 1/2

$

$

Not available

10

Simplicity 0916951-7

NUT, 1/2NC

$

$

Not available

11

Simplicity 2096189-2

PAD ASSEMBLY, Mounting, R.H. (Prior to S/N 1199)

$

$

Not available

11

Simplicity 2096236-1

PAD ASSEMBLY, Mounting, R.H. (Eff. S/N 1199 & Up)

$

$

Not available

11

Simplicity 2096234-6

CAPSCREW, 12MM x 1-1/2 x 35MM

$

$

Not available

11

Simplicity 0921024-6

CAPSCREW, 1/2NC x 2

$

$

Not available

11

Simplicity 0924360-1

WASHER, Plain, 17/32 x 1 x 14 GA

$

$

Not available

11

Simplicity 0916966-5

LOCKWASHER, 1/2

$

$

Not available

11

Simplicity 0916951-7

NUT, 1/2NC

$

$

Not available

12

Simplicity 2096190-0

SUPPORT ASSEMBLY, Front

$

$

Not available

12

Simplicity 0923320-6

CAPSCREW, 1/2NC x 3

$

$

Not available

12

Simplicity 0916966-5

LOCKWASHER, 1/2

$

$

Not available

12

Simplicity 0916951-7

NUT, 1/2NC

$

$

Not available

13

Simplicity 2096191-8

BRACKET, Rear Mounting, L.H. (Prior to S/N 1199)

$

$

Not available

13

Simplicity 2096237-9

BRACKET, Rear Mounting, L.H. (Eff. S/N 1199 & Up)

$

$

Not available

13

Simplicity 2096192-6

BRACKET, Rear Mounting, R.H. (Prior to S/N 1199)

$

$

Not available

13

Simplicity 2096238-7

BRACKET, Rear Mounting, R.H. (Eff. S/N 1199 & Up)

$

$

Not available

13

Simplicity 0921359-6

CAPSCREW, 1/2NC x 6

$

$

Not available

13

Simplicity 0916966-5

LOCKWASHER, 1/2

$

$

Not available

13

Simplicity 0916951-7

NUT, 1/2NC

$

$

Not available

14

Simplicity 2096239-5

SPACER, Rear Mounting Bracket

$

$

Not available

15

Simplicity 2096194-2

U-BOLT, Rear Mounting Bracket

$

$

Not available

15

Simplicity 0916966-5

LOCKWASHER, 1/2

$

$

Not available

15

Simplicity 0916951-7

NUT, 1/2NC

$

$

Not available
