2096175 - Simplicity Model 415 Loader Frames - Boom Assembly Group (3482I27) Parts Diagram

Model 415 Loader

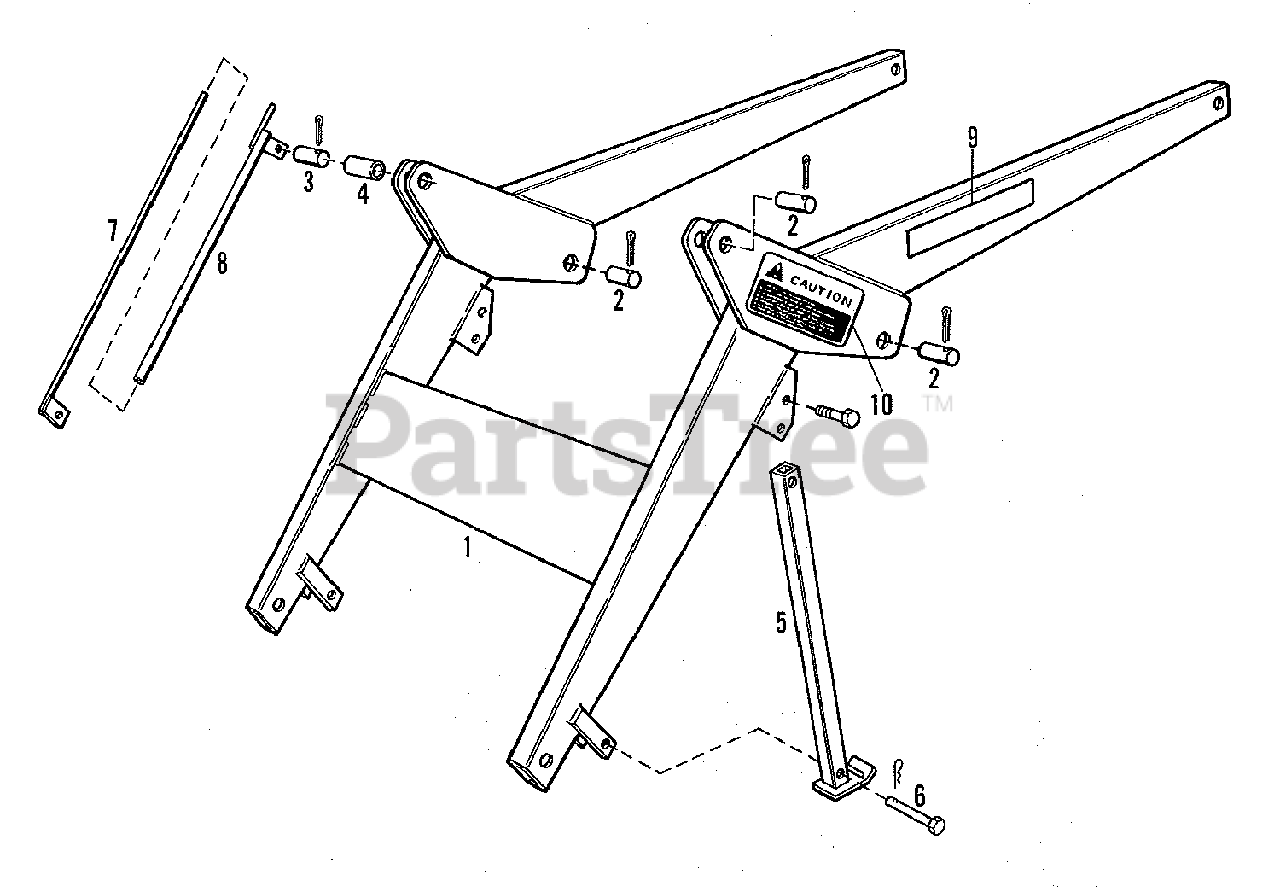

Frames - Boom Assembly Group (3482I27) Parts Diagram

  • Title

1

Simplicity 2096176-9

BOOM ASSEMBLY

$

$

Not available

1

Simplicity 0918188-4

FITTING, Lube, 1/4 x 90 Degrees

$

$

Not available

2

Simplicity 2096233-8

PIN, Cylinder to Boom Assembly

$

$

Not available

2

Simplicity 0918551-3

PIN, Cotter, 1/4 x 2

$

$

Not available

3

Simplicity 2096232-0

PIN, Cylinder to Boom Assembly

$

$

Not available

3

Simplicity 0921965-0

CAPSCREW, 3/8NC x 3/4

$

$

Not available

3

Simplicity 0917642-1

WASHER, Plain, 3/8 x 7/8 x 14 Ga.

$

$

Not available

3

Simplicity 0916965-7

LOCKWASHER, 3/8

$

$

Not available

3

Simplicity 0918551-3

PIN, Cotter, 1/4 x 2

$

$

Not available

4

Simplicity 2096094-4

BUSHING, Pin

$

$

Not available

5

Simplicity 2096178-5

STAND ASSEMBLY, Parking

$

$

Not available

5

Simplicity 0921972-6

CAPSCREW, 3/8NC x 2-1/2

$

$

Not available

5

Simplicity 0916965-7

LOCKWASHER, 3/8

$

$

Not available

5

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

6

Simplicity 2096075-3

PIN, Parking Stand

$

$

Not available

6

Simplicity 0933339-4

CLIP, Hairpin, No. 3

$

$

Not available

7

Simplicity 2096069-6

ROD, Bucket Indicator

$

$

Not available

8

Simplicity 2096070-4

TUBE ASSEMBLY, Bucket Indicator

$

$

Not available

9

Simplicity 2096199-1

DECAL (415 Model Identification)

$

$

Not available

10

Simplicity 0577814-7

DECAL (Warning)

$

$

Not available
