2096100 - Simplicity Model 430 Loader 48" Material Bucket Group (3482I47) Parts Diagram

Model 430 Loader

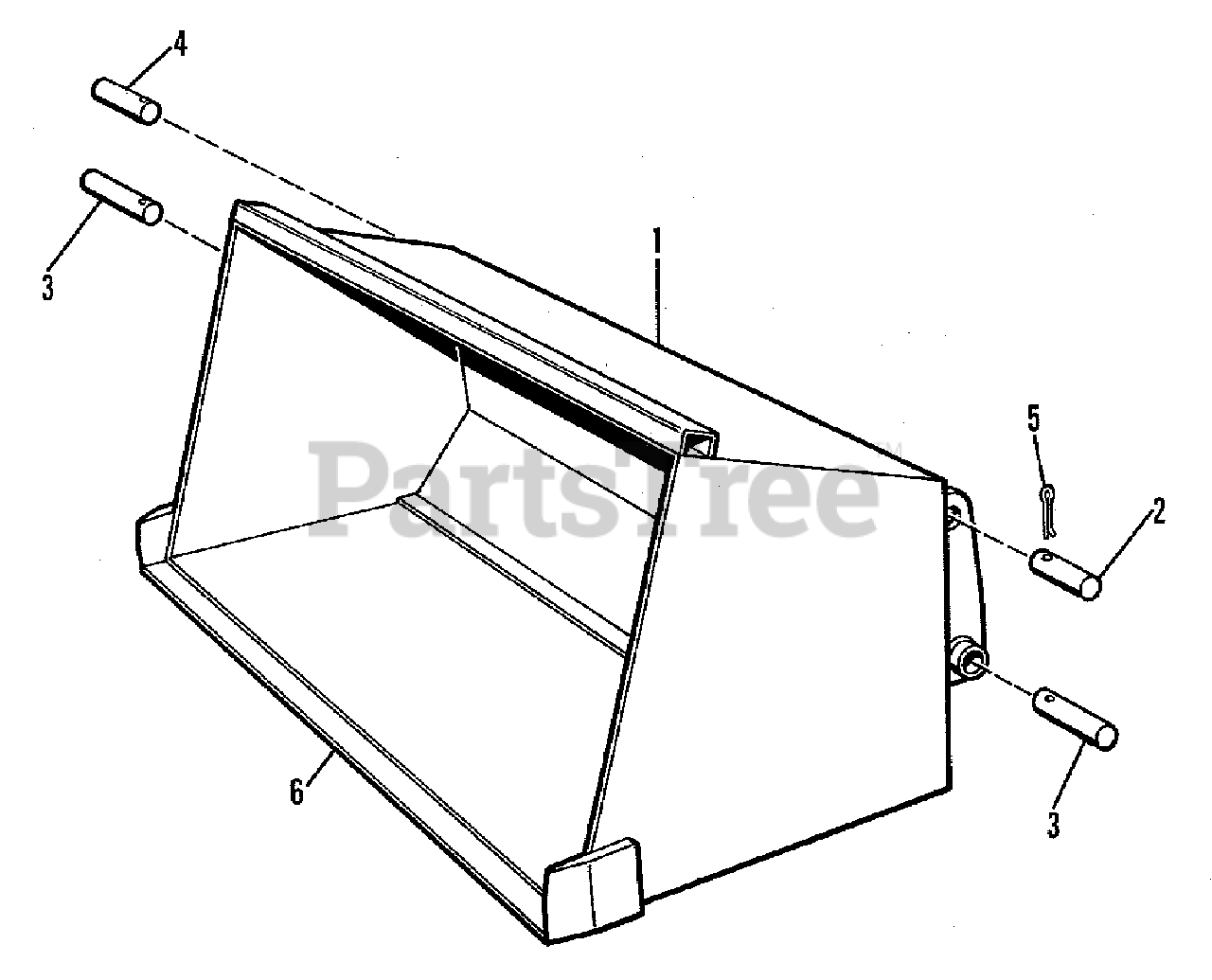

48" Material Bucket Group (3482I47) Parts Diagram

  • Title
1

BUCKET ASSEMBLY

$

$

Not available

2

Simplicity 2096067-0

PIN, Attaching (Upper Left Position)

$

$

Not available

3

Simplicity 2096068-8

PIN, Attaching (Lower Left & Right Positions)

$

$

Not available

4

Simplicity 2096073-8

PIN, Attaching (Upper Right Position)

$

$

Not available

4

Simplicity 0918188-4

FITTING, Lube, 1/4, 90 Degrees

$

$

Not available

5

Simplicity 2096083-7

PIN, Retaining

$

$

Not available

6

Simplicity 2096122-3

EDGE, Cutting (Field-Welded for Installation)

$

$

Not available
