20961 - Toro 55cm Recycler Walk-Behind Mower with SmartStow (SN: 400000000 - 402099999) ENGINE AND BLADE ASSEMBLY Parts Diagram

55cm Recycler Walk-Behind Mower with SmartStow

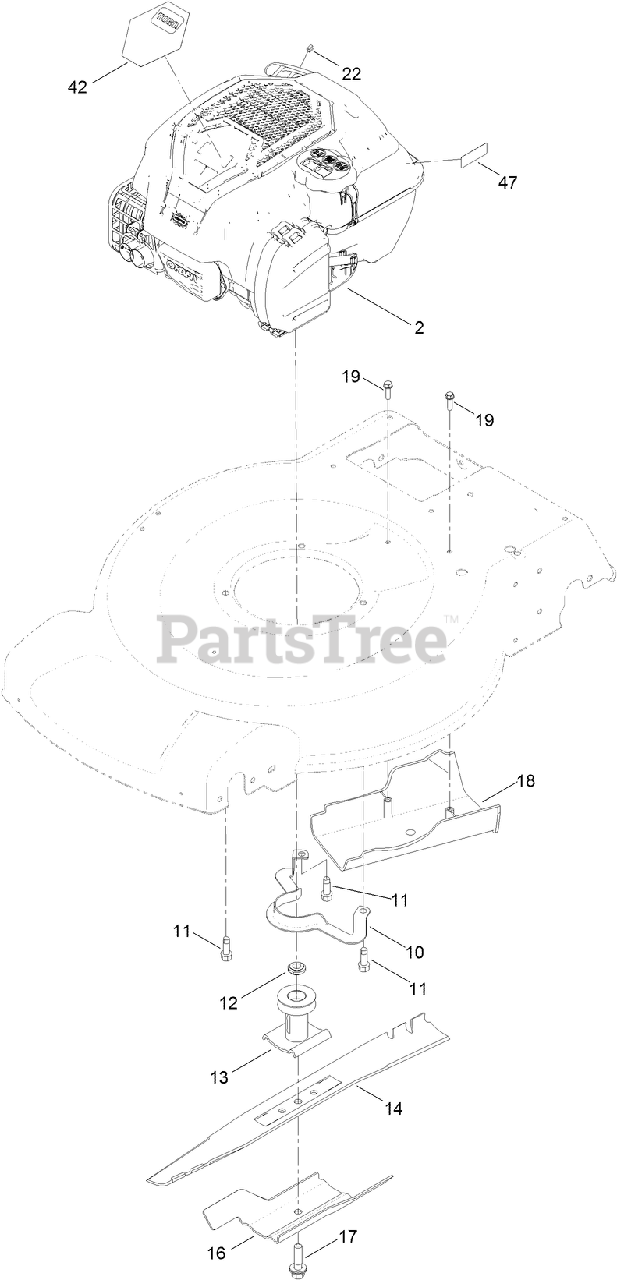

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title

2

ENGINE-BRIGGS, 104M020130F1

Note: Not serviced separately

$

$

Not available

2

ENGINE-BRIGGS, 104M020130F1

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

10

Toro 105-3030-03

Guide-Belt

$14.99

$

Usually ships in 3-6 days

0

11

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

12

Toro 106-3999

Spacer-Driver

$3.49

$

In Stock, only 4 left!

0

13

Toro 106-3987

DRIVER-BLADE

$31.99

$

In Stock, only 2 left!

0

14

Toro 131-9683-03

BLADE

$31.99

$

In Stock, only 3 left!

0

16

Toro 105-6848-03

Accelerator-Blade

$18.99

$

In Stock, only 1 left!

0

17

Toro 125-2466

BOLT-BLADE

$3.49

$

In Stock, Qty 20+

0

18

Toro 114-7937

COVER-BELT

$19.99

$

In Stock, only 2 left!

0

19

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

22

Toro 2210-316

STOP-ROPE

$7.99

$

Usually ships in 3-6 days

0

42

Toro 133-8176

DECAL-SHROUD

$6.49

$

Usually ships in 3-6 days

0

47

Toro 133-8198

DECAL-FUEL LEVEL

$

$

Currently unavailable
