20960 - Toro 55cm Recycler Walk-Behind Mower (SN: 402100000 - 999999999) ENGINE AND BLADE ASSEMBLY Parts Diagram

55cm Recycler Walk-Behind Mower

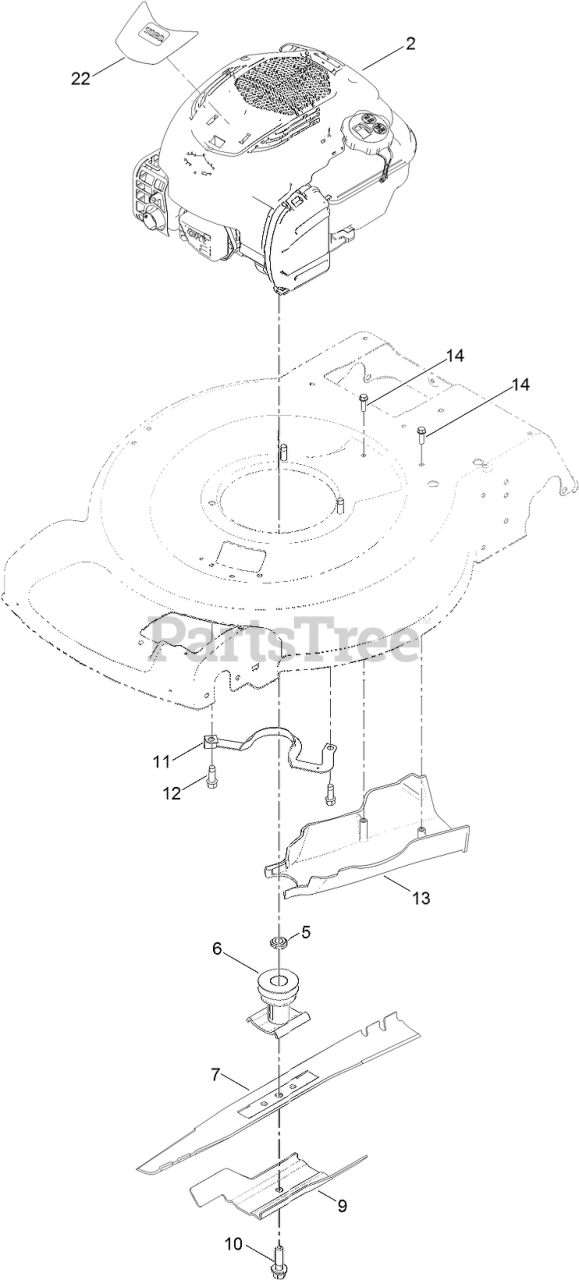

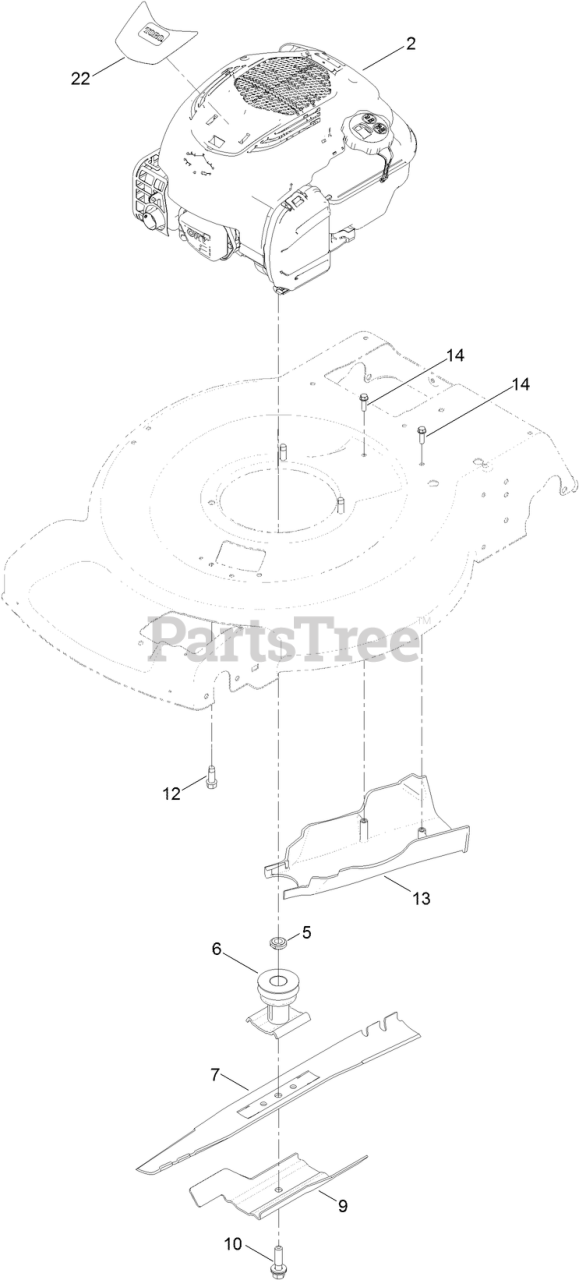

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title

2

ENGINE-BRIGGS 104M020043F1

Note: Not serviced separately

$

$

Not available

2

ENGINE-BRIGGS 104M020043F1

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

5

Toro 106-3999

Spacer-Driver

$3.49

$

In Stock, only 4 left!

0

6

Toro 130-6705

DRIVER-BLADE

$39.99

$

In Stock, only 1 left!

0

7

Toro 131-9683-03

BLADE

$31.99

$

In Stock, only 3 left!

0

9

Toro 105-6848-03

Accelerator-Blade

$17.99

$

In Stock, only 1 left!

0

10

Toro 125-2466

BOLT-BLADE

$3.49

$

In Stock, Qty 20+

0

11

Toro 130-6702-03

GUIDE-BELT

$8.49

$

In Stock, only 2 left!

0

12

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

13

Toro 130-6709

COVER-BELT, REAR

$15.99

$

In Stock, only 1 left!

0

14

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

22

Toro 132-4472

DECAL-SHROUD

$3.99

$

Usually ships in 3-6 days

0
