20959 - Toro 55cm Recycler Walk-Behind Mower with SmartStow (SN: 316000001 - 316999999) (2016) ENGINE AND BLADE ASSEMBLY Parts Diagram

55cm Recycler Walk-Behind Mower with SmartStow

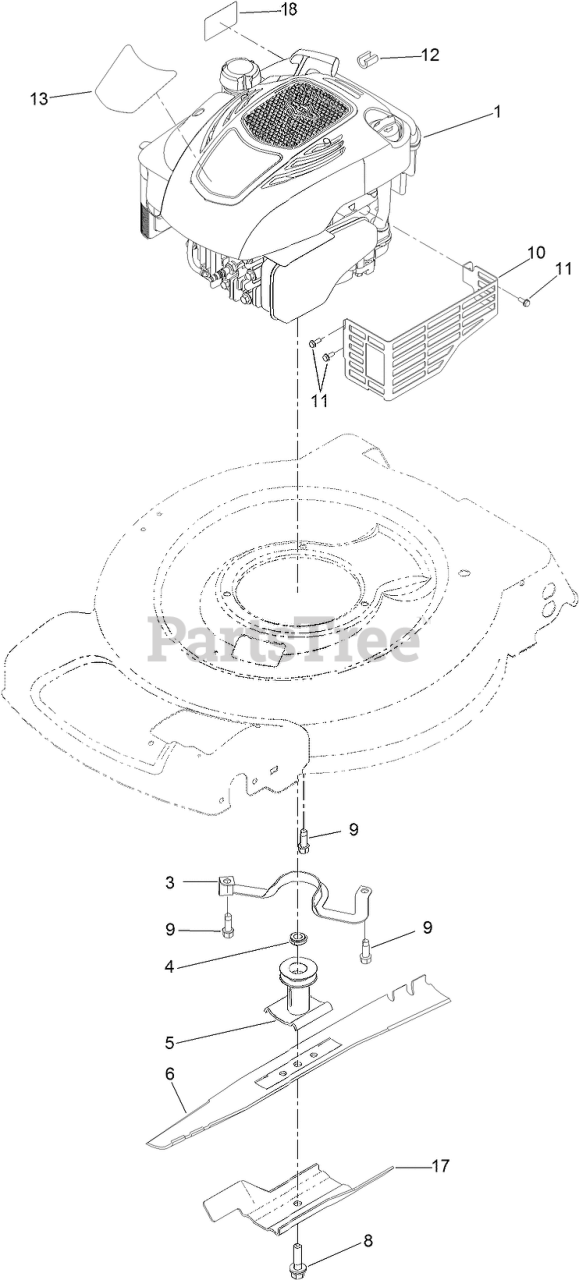

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title

1

ENGINE-BRIGGS, 126M020022F1

Note: Not serviced separately

$

$

Not available

1

ENGINE-BRIGGS, 126M020022F1

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

3

Toro 105-3031-03

Guide-Belt

$13.99

$

In Stock, only 1 left!

0

4

Toro 106-3999

Spacer-Driver

$3.49

$

In Stock, only 4 left!

0

5

Toro 106-3987

DRIVER-BLADE

$31.99

$

In Stock, only 2 left!

0

6

Toro 131-4550-03

BLADE

$34.99

$

Usually ships in 3-6 days

0

8

Toro 125-2466

BOLT-BLADE

$3.49

$

In Stock, Qty 20+

0

9

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

10

Toro 104-7577-03

SHIELD-MUFFLER

$26.99

$

Usually ships in 3-6 days

0

11

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

12

Toro 2210-316

STOP-ROPE

$7.99

$

Usually ships in 3-6 days

0

13

Toro 131-9672

DECAL-SHROUD

$

$

Currently unavailable

17

Toro 105-6848-03

Accelerator-Blade

$18.99

$

In Stock, only 1 left!

0

18

Toro 130-6662

DECAL-FUEL LEVEL

$3.99

$

Usually ships in 3-6 days

0
