20958 - Toro 55cm Recycler Walk-Behind Mower (SN: 315000001 - 315999999) (2015) ENGINE AND BLADE ASSEMBLY Parts Diagram

55cm Recycler Walk-Behind Mower

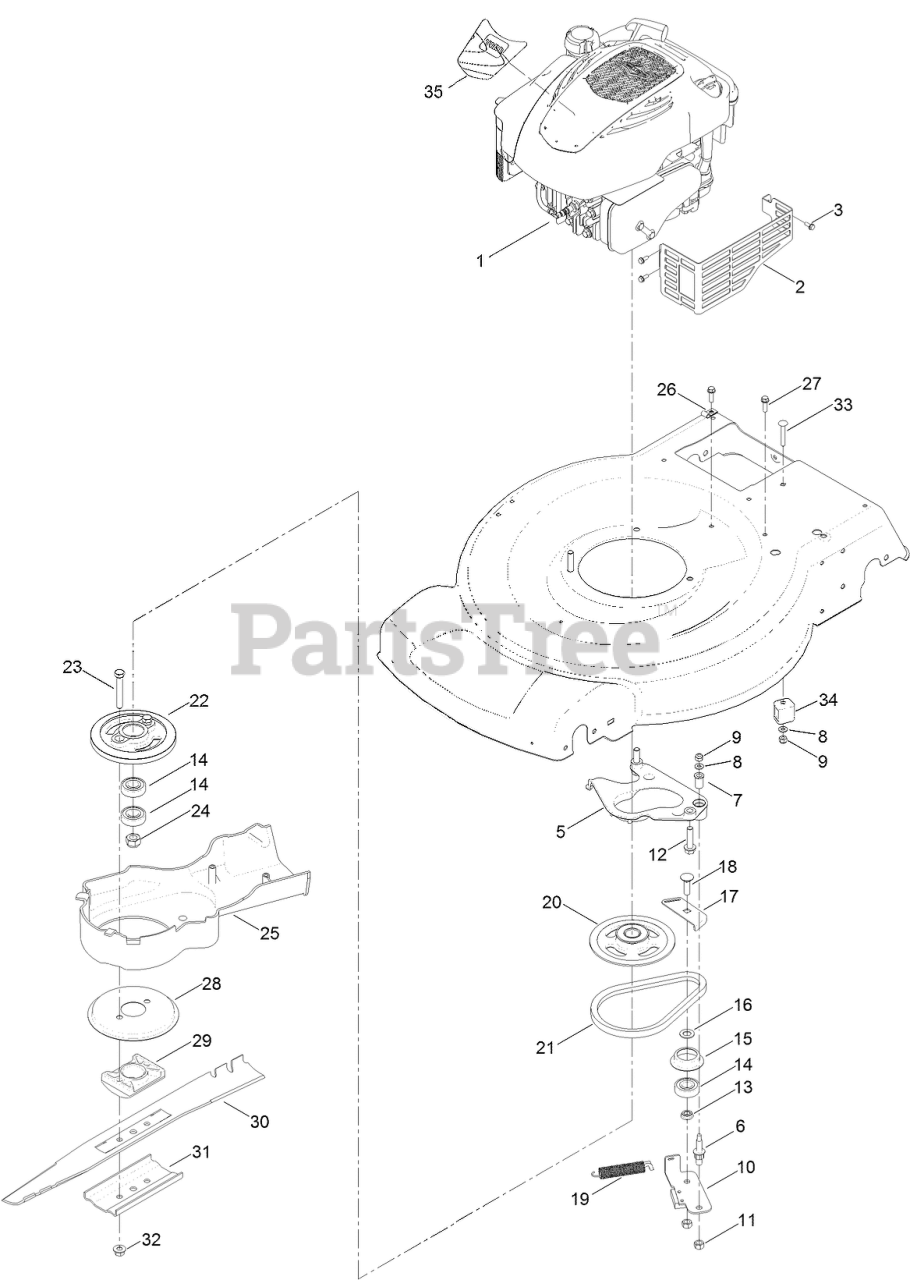

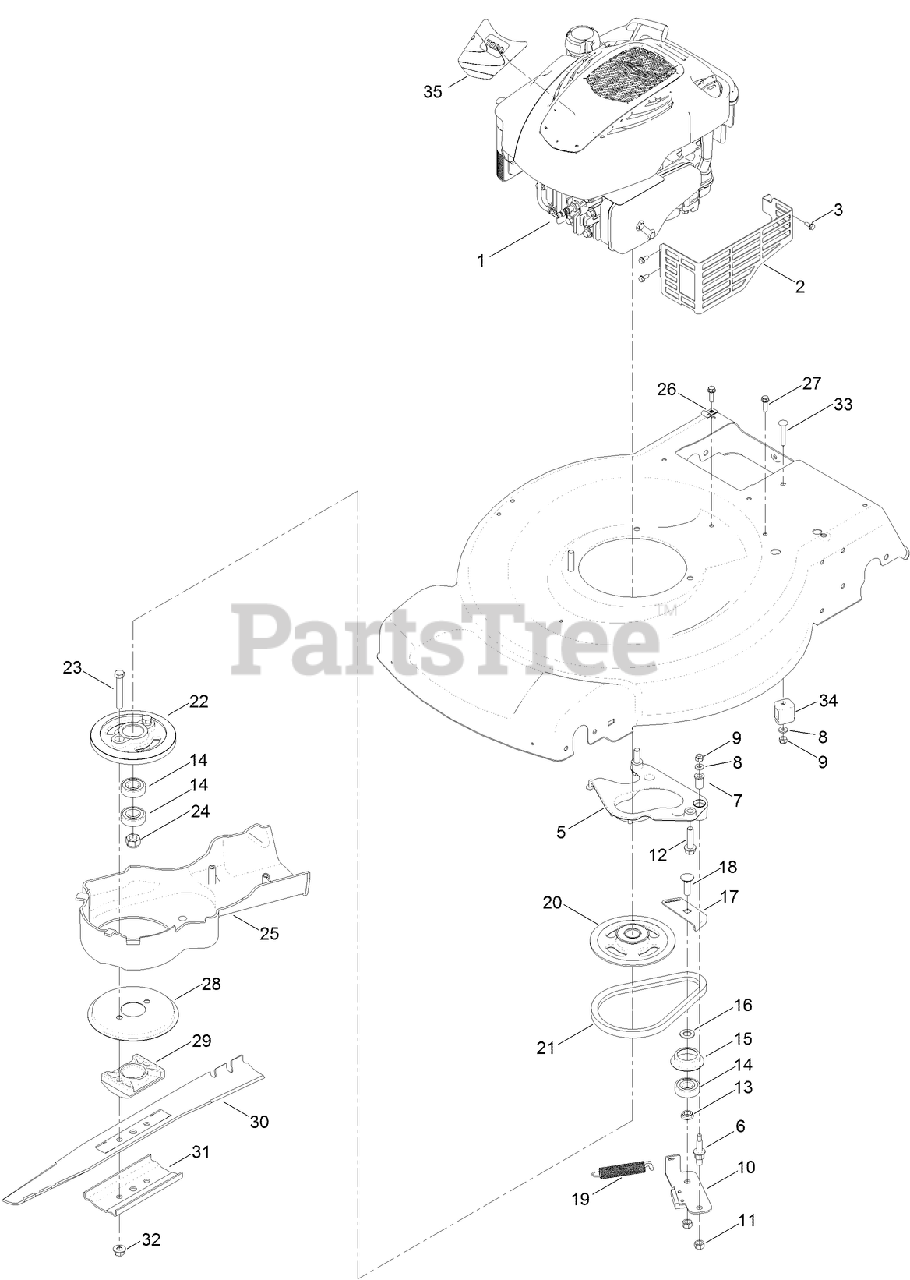

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title
1

ENGINE-BRIGGS, 126M020120F1

Note: Not serviced separately

$

$

Not available

1

ENGINE-BRIGGS, 126M020120F1

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

2

Toro 104-7577-03

SHIELD-MUFFLER

$26.99

$

Usually ships in 3-6 days

0

3

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 8

0

5

Toro 108-9341

PLATE-ANCHOR

$31.99

$

Usually ships in 3-6 days

0

6

Toro 107-0759

BOLT-SHOULDER

$10.99

$

In Stock, Qty 10

0

7

Toro 107-0797

BUSHING

$6.49

$

In Stock, Qty 9

0

8

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 19

0

9

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 5

0

10

Toro 125-1063

PLATE-BRAKE

$23.99

$

In Stock, only 4 left!

0

11

Toro 125-5069

NUT-HEX
(Superseded to 603773)

$2.99

$

In Stock, Qty 10

0

12

Toro 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

13

Toro 107-0758

SPACER-BEARING

$3.49

$

In Stock, Qty 6

0

14

Toro 100-1048

BEARING-BALL
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 20+

0

15

Toro 108-3790

RETAINER-BELT
(Superseded to 138-3217)

$3.49

$

In Stock, Qty 15

0

16

Toro 605256

WASHER-PLAIN

$2.99

$

In Stock, Qty 20+

0

17

Toro 107-7471

PLATE-GUIDE
(Superseded to 138-3222)

$3.99

$

In Stock, Qty 20+

0

18

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 17

0

19

Toro 108-3792

SPRING-TENSION, BRAKE

$11.99

$

In Stock, Qty 11

0

20

Toro 117-5970

PULLEY

$41.99

$

Usually ships in 3-6 days

0

21

Toro 110-1790

BELT
(Superseded to 110-1790-SL)

$35.99

$

Usually ships in 3-6 days

0

22

Toro 107-0754

DRUM
(Superseded to 126-8108)

$55.99

$

Usually ships in 3-6 days

0

23

Toro 3211-42

SCREW-HH

$5.49

$

In Stock, Qty 7

0

24

Toro 108-9342

NUT-HEX

$5.49

$

In Stock, only 2 left!

0

25

$26.99

$

In Stock, only 1 left!

0

26

Toro 2412-72

CLIP-CLOSED, INSULATED

$2.49

$

In Stock, Qty 12

0

27

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

28

Toro 108-3787

DISC
(Superseded to 138-3225)

$12.99

$

In Stock, only 3 left!

0

29

Toro 107-7487

SUPPORT-BLADE

$22.99

$

In Stock, only 1 left!

0

30

Toro 108-9783-03

BLADE
(Superseded to 131-9683-03)

$31.99

$

In Stock, only 3 left!

0

31

Toro 108-3766-03

SUPPORT-BLADE

$10.99

$

In Stock, Qty 11

0

32

Toro 127-6852

NUT-FLANGE, LOCK

$2.99

$

In Stock, Qty 20+

0

33

Toro 3229-5

SCREW-CARR

$1.49

$

In Stock, Qty 5

0

34

Toro 106-6801

ANCHOR-CABLE

$7.99

$

In Stock, Qty 7

0

35

Toro 120-1935

DECAL-SHROUD

$8.49

$

Usually ships in 3-6 days

0
