20958 - Toro 55cm Recycler Walk-Behind Mower (SN: 312000001 - 312999999) (2012) HOUSING, REAR DOOR AND BAFFLE ASSEMBLY Parts Diagram

55cm Recycler Walk-Behind Mower

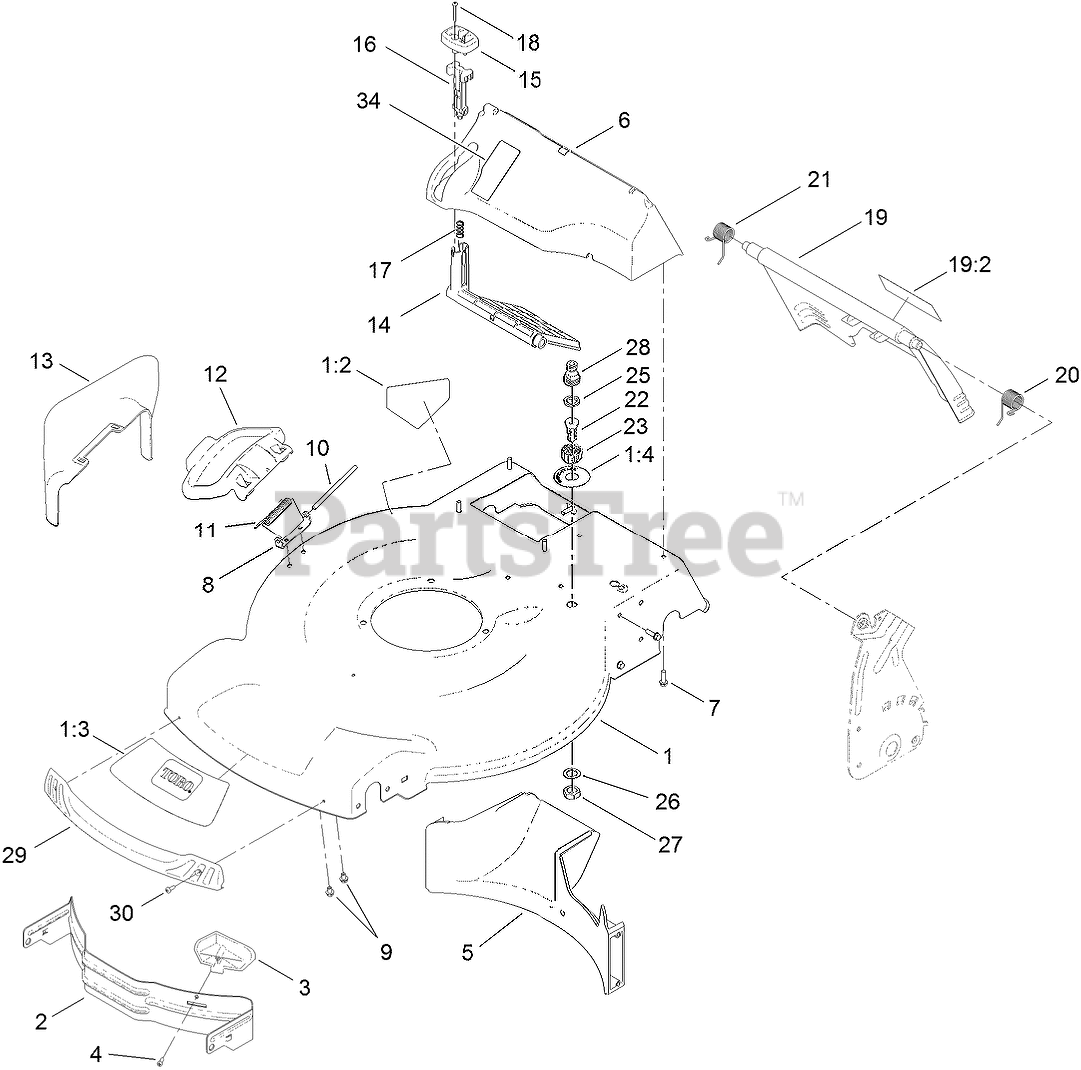

HOUSING, REAR DOOR AND BAFFLE ASSEMBLY Parts Diagram

  • Title

1

Toro 119-0282

HOUSING ASM
(Superseded to 130-2390)

$271.99

$

Usually ships in 3-6 days

0

1:2

Toro 112-8760

DECAL-DANGER

$11.99

$

In Stock, Qty 5

0

1:3

Toro 119-0283

DECAL-RECYCLER
(Superseded to 120-3324)

$7.99

$

Usually ships in 3-6 days

0

1:4

Toro 112-8867

DECAL-PORT, WASHOUT
(Superseded to 137-9196)

$2.49

$

In Stock, only 2 left!

0

2

Toro 115-4667-01

BAFFLE-FRONT

$25.99

$

Usually ships in 3-6 days

0

3

Toro 115-4672

KICKER-FRONT

$11.99

$

Usually ships in 3-6 days

0

4

Toro 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

5

Toro 114-7961

BAFFLE-REAR
(Superseded to 139-8982)

$15.99

$

Usually ships in 3-6 days

0

6

Toro 115-4677

CHUTE-RECYCLE
(Superseded to 132-4501)

$29.99

$

Usually ships in 3-6 days

0

7

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

8

Toro 112-6416

BRACKET-COVER

$2.99

$

In Stock, only 3 left!

0

9

Toro 99-8445

SCREW-HWH
(Superseded to 137-4795)

$1.49

$

In Stock, Qty 20+

0

10

Toro 99-5291

ROD-COVER
(Superseded to 136-8672)

$3.49

$

In Stock, Qty 14

0

11

Toro 99-5293

SPRING-TORSION

$10.99

$

In Stock, only 4 left!

0

12

Toro 115-8449

DEFLECTOR-SIDE

$9.49

$

In Stock, only 4 left!

0

13

Toro 115-8447

CHUTE-DISCHARGE, SIDE

$17.99

$

In Stock, Qty 6

0

14

Toro 114-7960

DEFLECTOR-RECYCLE

$14.99

$

Usually ships in 3-6 days

0

15

Toro 114-7958

KNOB-RECYCLE

$3.99

$

Usually ships in 3-6 days

0

16

Toro 114-7959

LATCH-RECYCLE

$5.49

$

Usually ships in 3-6 days

0

17

Toro 117-1031

SPRING-COMPRESSION

$2.99

$

Usually ships in 3-6 days

0

18

Toro 32104-120

SCREW-PPH

$1.99

$

Usually ships in 3-6 days

0

19

Toro 121-5776

REAR DOOR ASM
(Superseded to 137-9139)

$25.99

$

In Stock, only 3 left!

0

19:2

Toro 114-7982

DECAL-WARNING

$5.49

$

Usually ships in 3-6 days

0

20

Toro 115-2859

SPRING-TORSION, LH

$5.49

$

In Stock, only 1 left!

0

21

Toro 114-7924

SPRING-TORSION, RH

$3.49

$

In Stock, Qty 20+

0

22

Toro 112-6400

PORT-WASHOUT

$4.99

$

In Stock, only 1 left!

0

23

Toro 112-6401

COUPLING-HOSE, WASHOUT PORT

$2.99

$

In Stock, only 1 left!

0

25

Toro 112-6438

WASHER-SEAL, WASHOUT PORT

$1.99

$

In Stock, only 3 left!

0

26

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 2 left!

0

27

Toro 3218-6

NUT-JAM

$6.49

$

In Stock, Qty 10

0

28

Toro 112-6437

ADAPTER-CONNECT, QUICK

$12.99

$

Usually ships in 3-6 days

0

29

Toro 114-7987

BUMPER

$12.99

$

In Stock, only 1 left!

0

30

Toro 105-6849

SCREW-FORMING, THREAD

$1.49

$

In Stock, only 3 left!

0

34

Toro 119-0305

DECAL-BAG ON DEMAND

$6.49

$

Usually ships in 3-6 days

0
