20956 - Toro 55cm Recycler Walk-Behind Mower (SN: 310000001 - 310999999) (2010) ELECTRICAL ASSEMBLY Parts Diagram

55cm Recycler Walk-Behind Mower

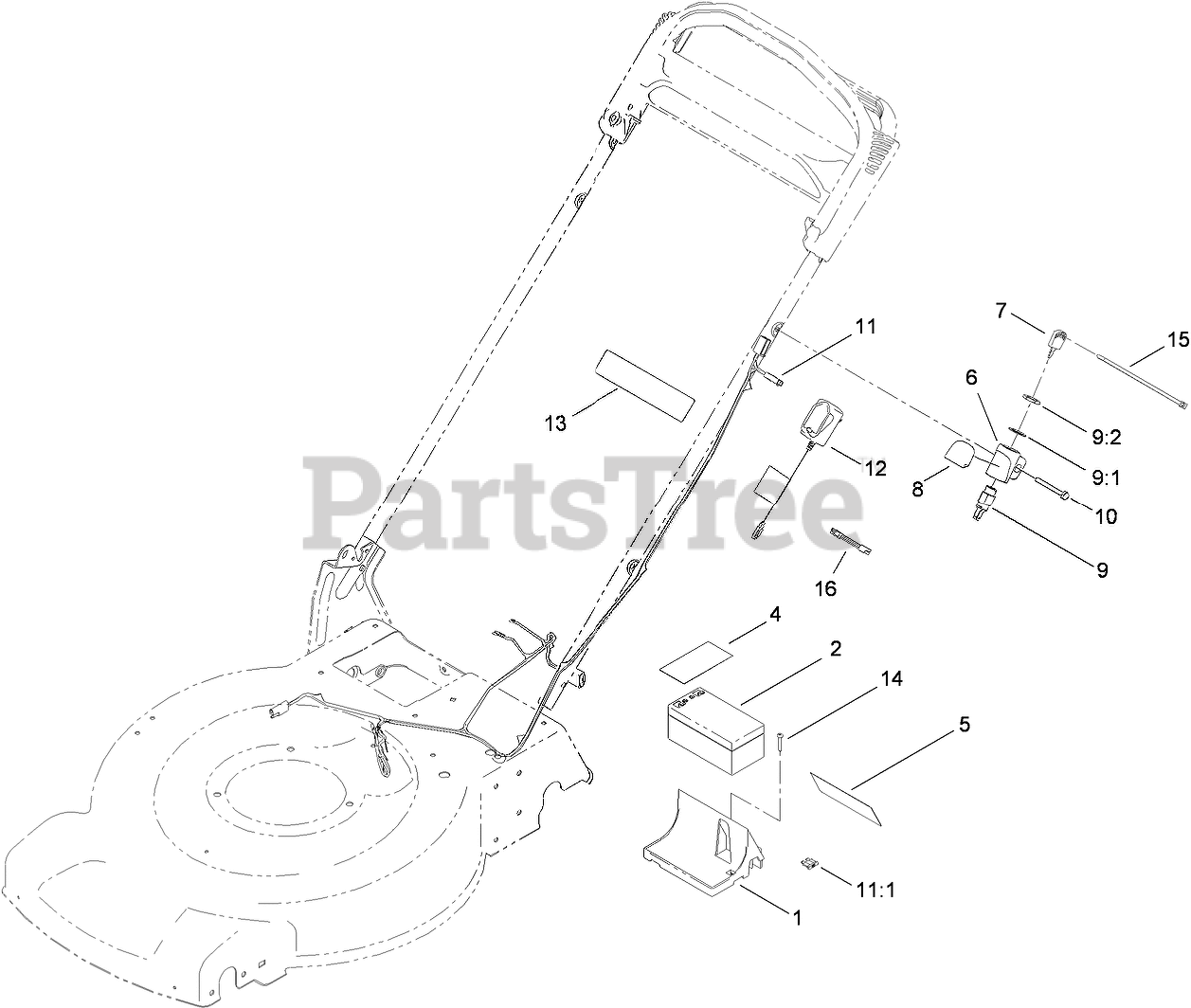

ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Toro 114-7936

TRAY-BATTERY

$11.99

$

Usually ships in 3-6 days

0

2

Toro 106-8397

BATTERY-WET

$79.99

$

In Stock, only 1 left!

0

4

Toro 112-8763

DECAL-TERMINAL, BATTERY

$3.49

$

Usually ships in 3-6 days

0

5

Toro 119-3811

DECAL-BATTERY TRAY

$6.99

$

Usually ships in 3-6 days

0

6

Toro 108-9760

MOUNT-SWITCH

$5.99

$

In Stock, only 1 left!

0

7

Toro 700918

KEY

$6.49

$

In Stock, Qty 11

0

8

Toro 114-2619

DECAL-ELECTRIC START

$

$

Not available

9

Toro 46-5780

STARTER SWITCH ASM

$29.99

$

In Stock, only 1 left!

0

9:1

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

9:2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

10

Toro 321-50

SCREW-HH

$1.99

$

In Stock, Qty 9

0

11

Toro 115-4675

HARNESS-WIRE

$99.99

$

In Stock, only 2 left!

0

11:1

Toro 99-6124

FUSE-40 AMP

$4.99

$

In Stock, Qty 8

0

12

Toro 98-2391

CHARGER-EUROPEAN, 12V DC

$60.99

$

Usually ships in 3-6 days

0

13

Toro 104-7953

DECAL-WARNING

$8.99

$

Usually ships in 3-6 days

0

14

Toro 32144-97

SCREW-PPH, PLASTITE

$0.99

$

In Stock, Qty 11

0

15

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0

16

Toro 107-3749

ADAPTER-CHARGER

$26.99

$

Usually ships in 3-6 days

0
