20954 - Toro 55cm Recycler Walk-Behind Mower (SN: 313000001 - 313999999) (2013) HOUSING AND REAR DOOR ASSEMBLY Parts Diagram

55cm Recycler Walk-Behind Mower

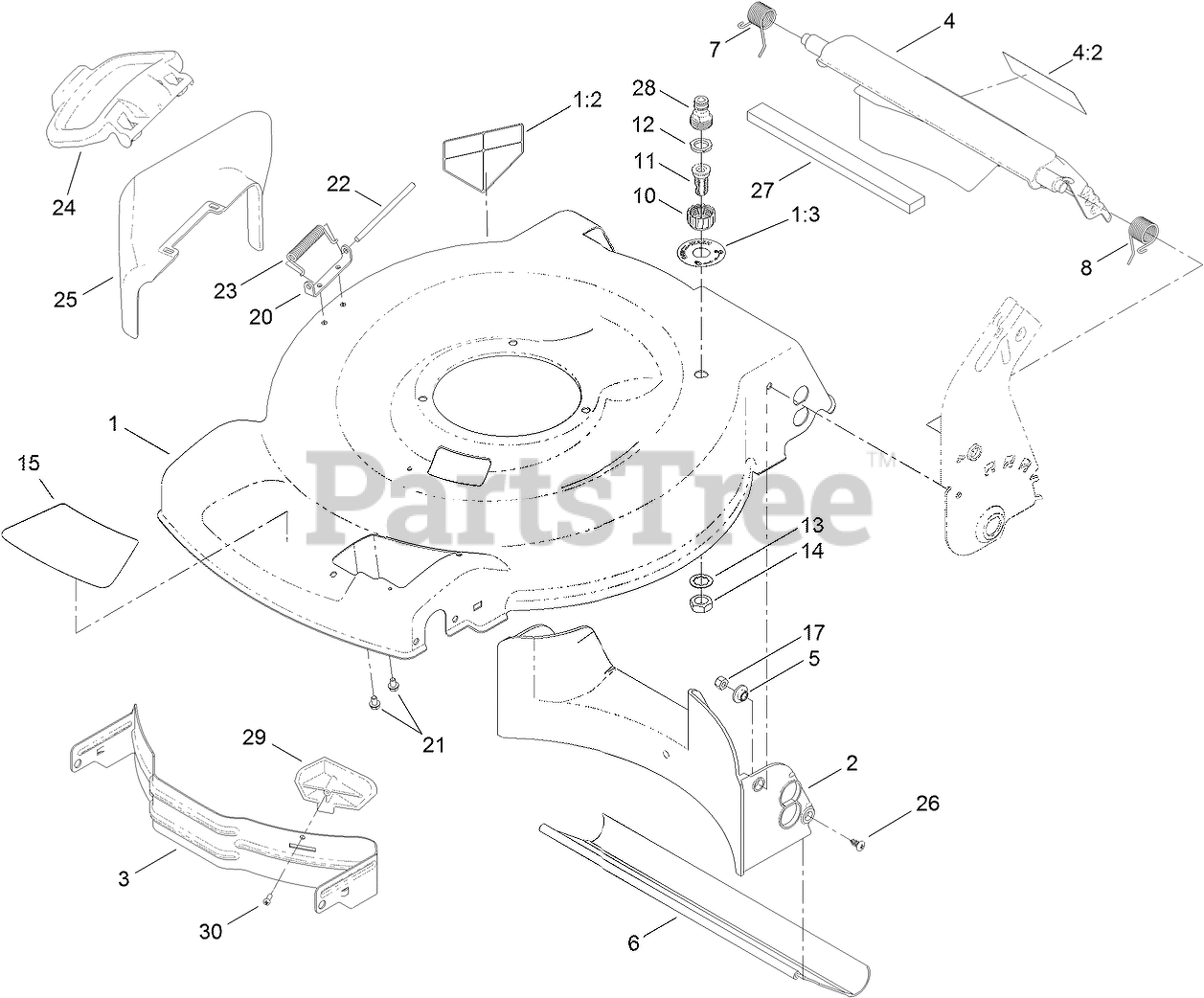

HOUSING AND REAR DOOR ASSEMBLY Parts Diagram

  • Title
1

Toro 120-3326

HOUSING ASM
(Superseded to 131-9678)

$250.99

$

Usually ships in 3-6 days

0

1:2

Toro 112-8760

DECAL-DANGER

$11.99

$

In Stock, Qty 5

0

1:3

Toro 112-8867

DECAL-PORT, WASHOUT
(Superseded to 137-9196)

$2.49

$

In Stock, only 2 left!

0

2

Toro 120-5218

BAFFLE-REAR

$29.99

$

In Stock, Qty 12

0

3

Toro 115-4667-01

BAFFLE-FRONT

$25.99

$

Usually ships in 3-6 days

0

4

Toro 117-4199

REAR DEFLECTOR ASM

$39.99

$

In Stock, only 1 left!

0

4:2

Toro 114-7982

DECAL-WARNING

$5.49

$

Usually ships in 3-6 days

0

5

Toro 117-5991

WASHER-STEPPED, BAFFLE

$1.49

$

In Stock, Qty 8

0

6

Toro 115-8420

SHIELD-TRAILING
(Superseded to 144-6431)

$15.99

$

In Stock, Qty 7

0

7

Toro 114-7924

SPRING-TORSION

$3.49

$

In Stock, Qty 20+

0

8

Toro 115-2859

SPRING-TORSION

$5.49

$

In Stock, only 1 left!

0

10

Toro 112-6401

COUPLING-HOSE, WASHOUT PORT

$2.99

$

In Stock, only 1 left!

0

11

Toro 112-6400

PORT-WASHOUT

$4.99

$

In Stock, only 1 left!

0

12

Toro 112-6438

WASHER-SEAL, WASHOUT PORT

$1.99

$

In Stock, only 3 left!

0

13

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 2 left!

0

14

Toro 3218-6

NUT-JAM

$6.49

$

In Stock, Qty 10

0

15

Toro 120-3323

DECAL-DECK

$11.99

$

Usually ships in 3-6 days

0

17

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 112-6416

BRACKET-COVER

$2.99

$

In Stock, only 3 left!

0

21

Toro 99-8445

SCREW-HWH
(Superseded to 137-4795)

$1.49

$

In Stock, Qty 20+

0

22

Toro 99-5291

ROD-COVER
(Superseded to 136-8672)

$3.49

$

In Stock, Qty 13

0

23

Toro 99-5293

SPRING-TORSION

$10.99

$

In Stock, only 4 left!

0

24

Toro 115-8449

DEFLECTOR-SIDE

$9.49

$

In Stock, only 3 left!

0

25

Toro 115-8447

CHUTE-DISCHARGE, SIDE

$17.99

$

In Stock, Qty 6

0

26

Toro 117-1092

SCREW-PTH

$1.49

$

In Stock, Qty 20+

0

27

Toro 117-5924

FOAM-SEAL

$2.99

$

In Stock, only 1 left!

0

28

Toro 112-6437

ADAPTER-CONNECT, QUICK

$12.99

$

Usually ships in 3-6 days

0

29

Toro 115-4672

KICKER-FRONT

$11.99

$

Usually ships in 3-6 days

0

30

Toro 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0
