20951 - Toro 48cm Recycler Walk-Behind Mower (SN: 313000001 - 313999999) (2013) FRONT WHEEL AND HEIGHT-OF-CUT ASSEMBLY Parts Diagram

48cm Recycler Walk-Behind Mower

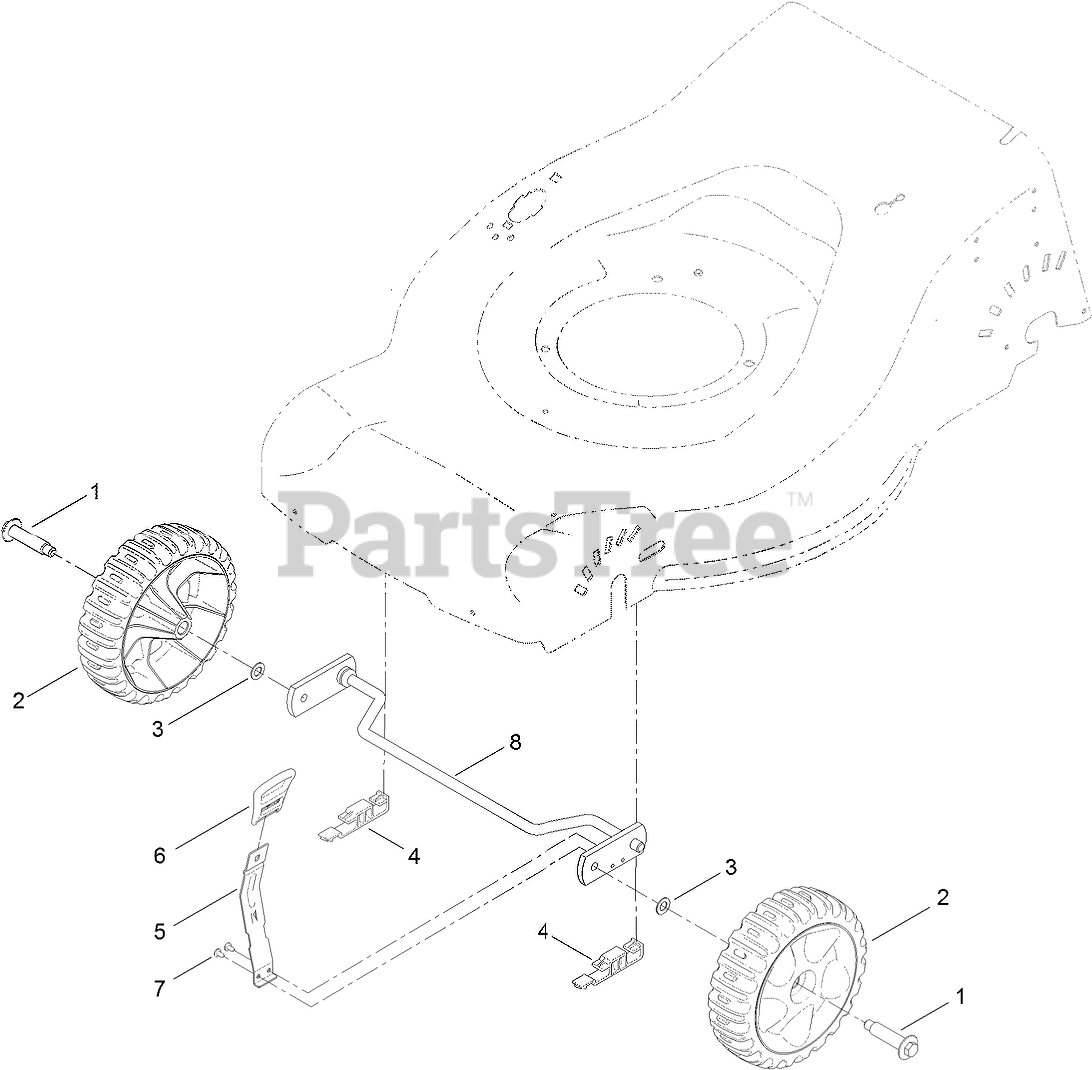

FRONT WHEEL AND HEIGHT-OF-CUT ASSEMBLY Parts Diagram

  • Title
1

Toro 614650

BOLT-SHOULDER

$4.49

$

Usually ships in 3-6 days

0

2

Toro 119-3777

7 INCH WHEEL AND TIRE ASM

$35.99

$

In Stock, only 1 left!

0

3

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0

4

Toro 110-7068

CLAMP-AXLE, FRONT

$

$

Currently unavailable

5

Toro 120-0168

ARM-SPRING

$6.49

$

Usually ships in 3-6 days

0

6

Toro 110-7125

KNOB-HOC

$

$

Not available

7

Toro 110-7175

SCREW-PAN HEAD, TAP

$

$

Currently unavailable

8

Toro 120-0165

FRONT PIVOT BAR ASM

$

$

Not available
