20951 - Toro 48cm Recycler Walk-Behind Mower (SN: 312000001 - 312999999) (2012) ENGINE AND ELECTRIAL ASSEMBLY Parts Diagram

48cm Recycler Walk-Behind Mower

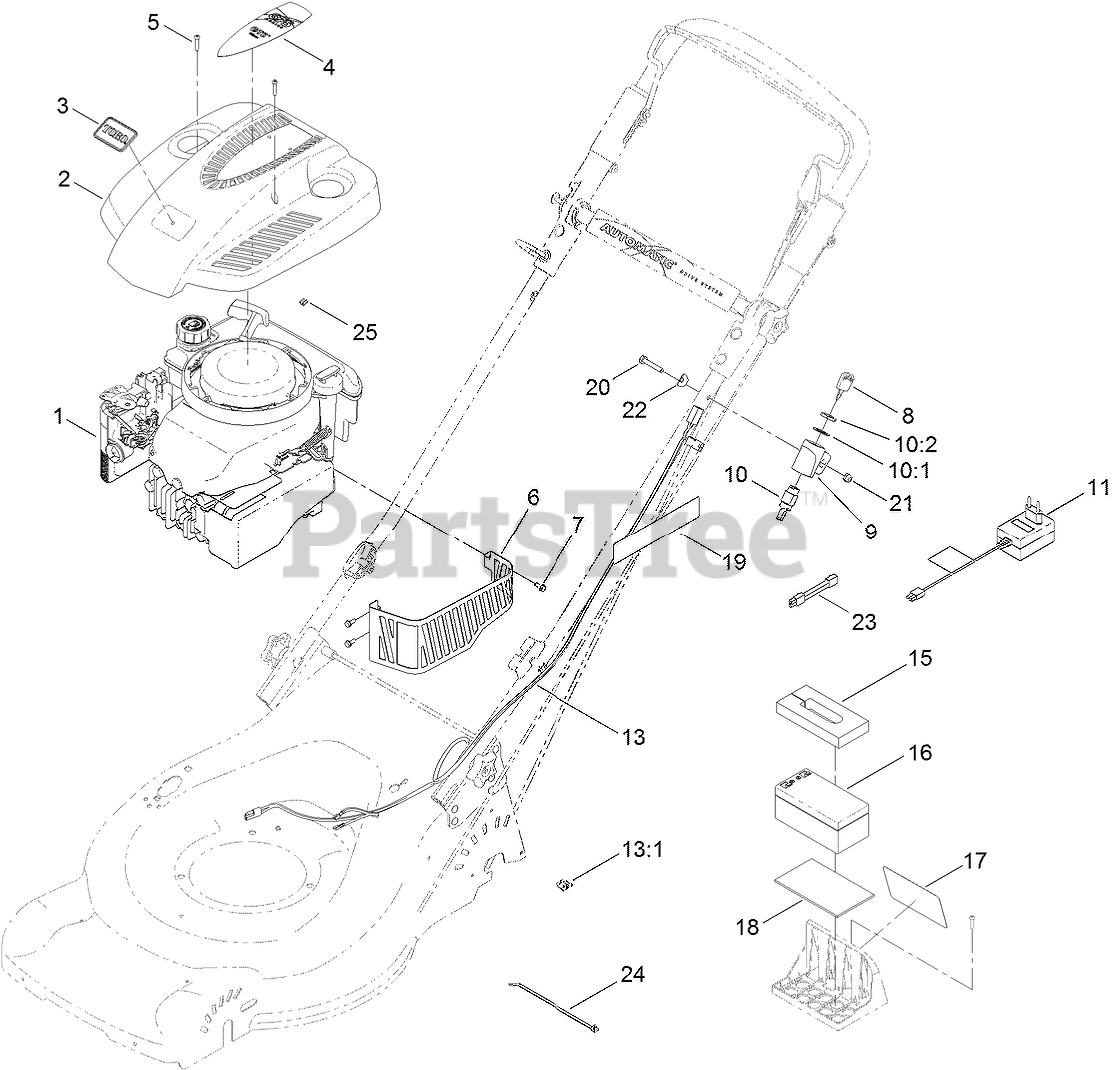

ENGINE AND ELECTRIAL ASSEMBLY Parts Diagram

  • Title

1

ENGINE-BRIGGS, 126T05-0328-B1

Note: Not serviced separately

$

$

Not available

2

Toro 110-9156

SHROUD-ENGINE

$

$

Not available

3

Toro 120-0183

PLATE-LOGO

$

$

Not available

4

Toro 120-3905

DECAL-ENGINE, 48CM

$

$

Not available

5

Toro 93-0231

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

6

Toro 110-9158

SHIELD-MUFFLER

$

$

Currently unavailable

7

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

8

Toro 700918

KEY

$6.49

$

In Stock, Qty 10

0

9

Toro 108-9760

MOUNT-SWITCH

$5.99

$

In Stock, Qty 11

0

10

Toro 46-5780

STARTER SWITCH ASM

$29.99

$

In Stock, Qty 7

0

10:1

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 20+

0

10:2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

11

Toro 98-2391

CHARGER-EUROPEAN, 12V DC

$

$

Not available

13

Toro 120-0182

HARNESS-WIRE, WPM

$

$

Not available

13:1

Toro 99-6124

FUSE-40 AMP

$5.49

$

In Stock, Qty 8

0

15

Toro 120-0189

FOAM-BLOCK

$

$

Currently unavailable

16

Toro 106-8397

BATTERY-WET

$79.99

$

In Stock, Qty 5

0

17

Toro 110-7059

DECAL-FUSE

$

$

Currently unavailable

18

Toro 108-0987

FOAM-BATTERY

$2.49

$

In Stock, only 3 left!

0

19

Toro 104-7953

DECAL-WARNING

$9.99

$

Usually ships in 3-6 days

0

20

Toro 321-51

SCREW-HH

$1.49

$

In Stock, only 2 left!

0

21

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 6

0

22

Toro 92-8632

WASHER
(Superseded to 115-0995)

$6.99

$

In Stock, only 3 left!

0

23

Toro 107-3749

ADAPTER-CHARGER

$27.99

$

Usually ships in 3-6 days

0

24

Toro 614249

TIE-CABLE

$1.49

$

In Stock, only 2 left!

0

25

Toro 92-1701

STOP-ROPE
(Superseded to 2210-316)

$7.99

$

Usually ships in 3-6 days

0
