2095 - Jonsered Chainsaw (2000-06) CYLINDER PISTON MUFFLER Parts Diagram

Chainsaw

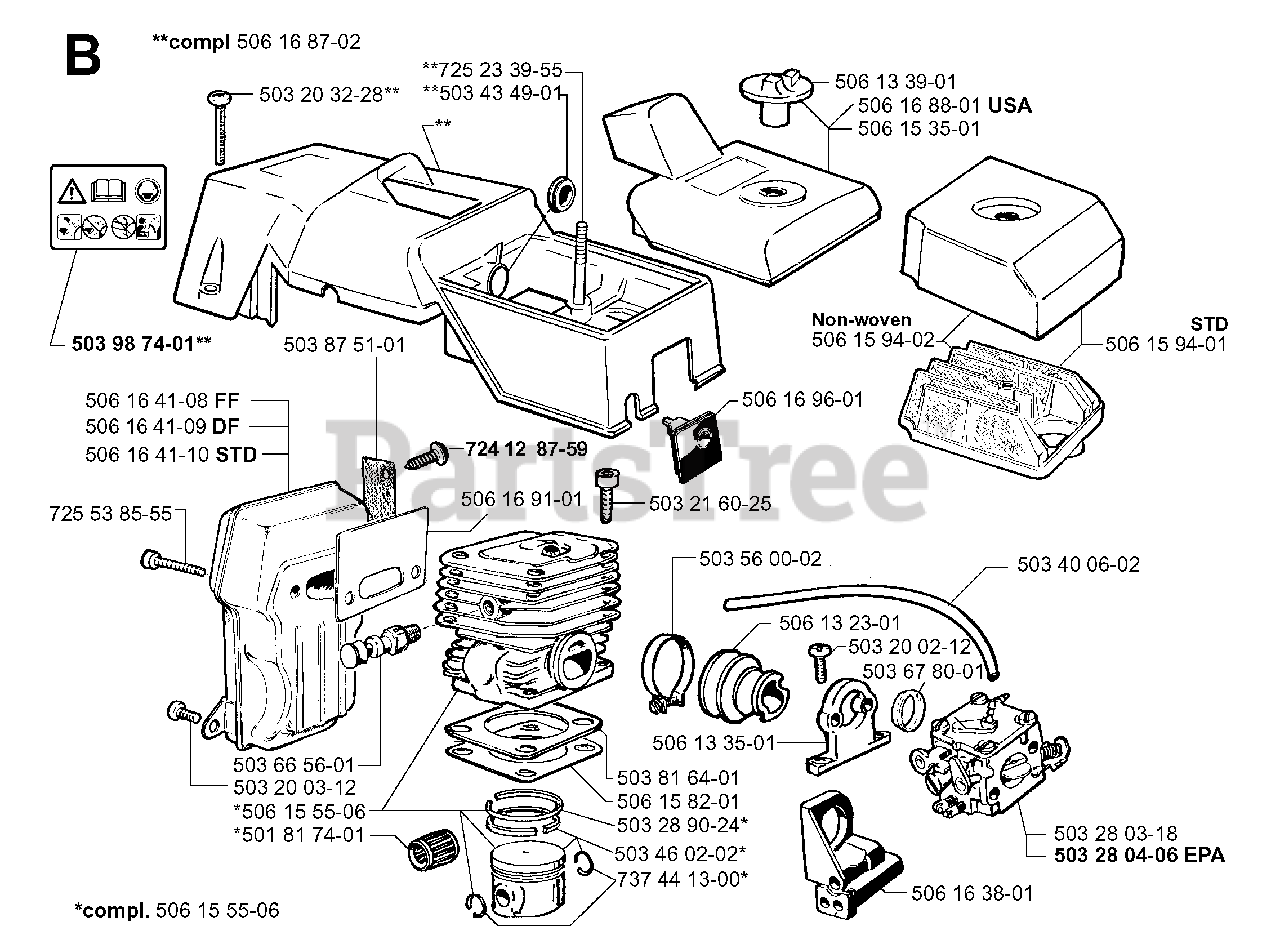

CYLINDER PISTON MUFFLER Parts Diagram

  • Title
5061687-02

Jonsered 506168702

CYLINDER COVER

$

$

Not available

5032032-28

$4.99

$

In Stock, Qty 7

0

5039874-01

$9.99

$

In Stock, only 2 left!

0

5061641-08

$

$

Not available

5061641-09

Jonsered 506164109

MUFFLER
(Superseded to 506164112)

$

$

Not available

5061641-10

Jonsered 506164110

MUFFLER
(Superseded to 506164111)

$

$

Not available

7255385-55

$

$

Not available

5036656-01

$63.99

$

In Stock, only 2 left!

0

5032003-12

$6.99

$

Usually ships in 3-10 days

0

5061555-06

Jonsered 506155506

No Description Available

$655.99

$

Usually ships in 3-10 days

0

5018174-01

Jonsered 501817401

NEEDLE BEARING
(Superseded to 503256101)

$28.99

$

In Stock, only 1 left!

0

5061555-06

Jonsered 506155506

No Description Available

$655.99

$

Usually ships in 3-10 days

0

7374413-00

$2.99

$

In Stock, only 2 left!

0

5034602-02

$171.93

$

Usually ships in 3-10 days

0

5032890-24

Jonsered 503289024

PISTON RING

$31.99

$

In Stock, only 1 left!

0

5061582-01

$7.99

$

Usually ships in 3-10 days

0

5038164-01

$

$

Not available

5061335-01

$

$

Not available

5061691-01

Jonsered 506169101

CONDUCTOR

$

$

Not available

7241287-59

$6.49

$

In Stock, Qty 5

0

5038751-01

$

$

Not available

5034349-01

$2.49

$

Usually ships in 3-10 days

0

7252339-55

Jonsered 725233955

SCREW M5 X 40

$

$

Not available

5061594-02

Jonsered 506159402

AIRFILTER

$

$

Not available

5061696-01

$

$

Not available

5032160-25

$4.99

$

Usually ships in 3-10 days

0

5035600-02

$9.49

$

Usually ships in 3-10 days

0

5061323-01

Jonsered 506132301

INLET PIPE **

$

$

Not available

5032002-12

Jonsered 503200212

SCREW
(Superseded to 503200712)

$7.49

$

In Stock, Qty 11

0

5036780-01

$

$

Not available

5061638-01

$8.07

$

Usually ships in 3-10 days

0

5032804-06

Jonsered 503280406

CARBURET0R

$

$

Not available

5032803-18

Jonsered 503280318

CARBURETOR

$215.79

$

Usually ships in 3-10 days

0

5034006-02

$13.99

$

Usually ships in 3-10 days

0

5061594-01

Jonsered 506159401

AIR FILTER

$

$

Not available

5061535-01

Jonsered 506153501

FILTER COVER

$

$

Not available

5061688-01

Jonsered 506168801

FILTER COVER, USA

$

$

Not available

5061339-01

$

$

Not available
