2095 - Jonsered Chainsaw (1994-05) STARTER Parts Diagram

Chainsaw

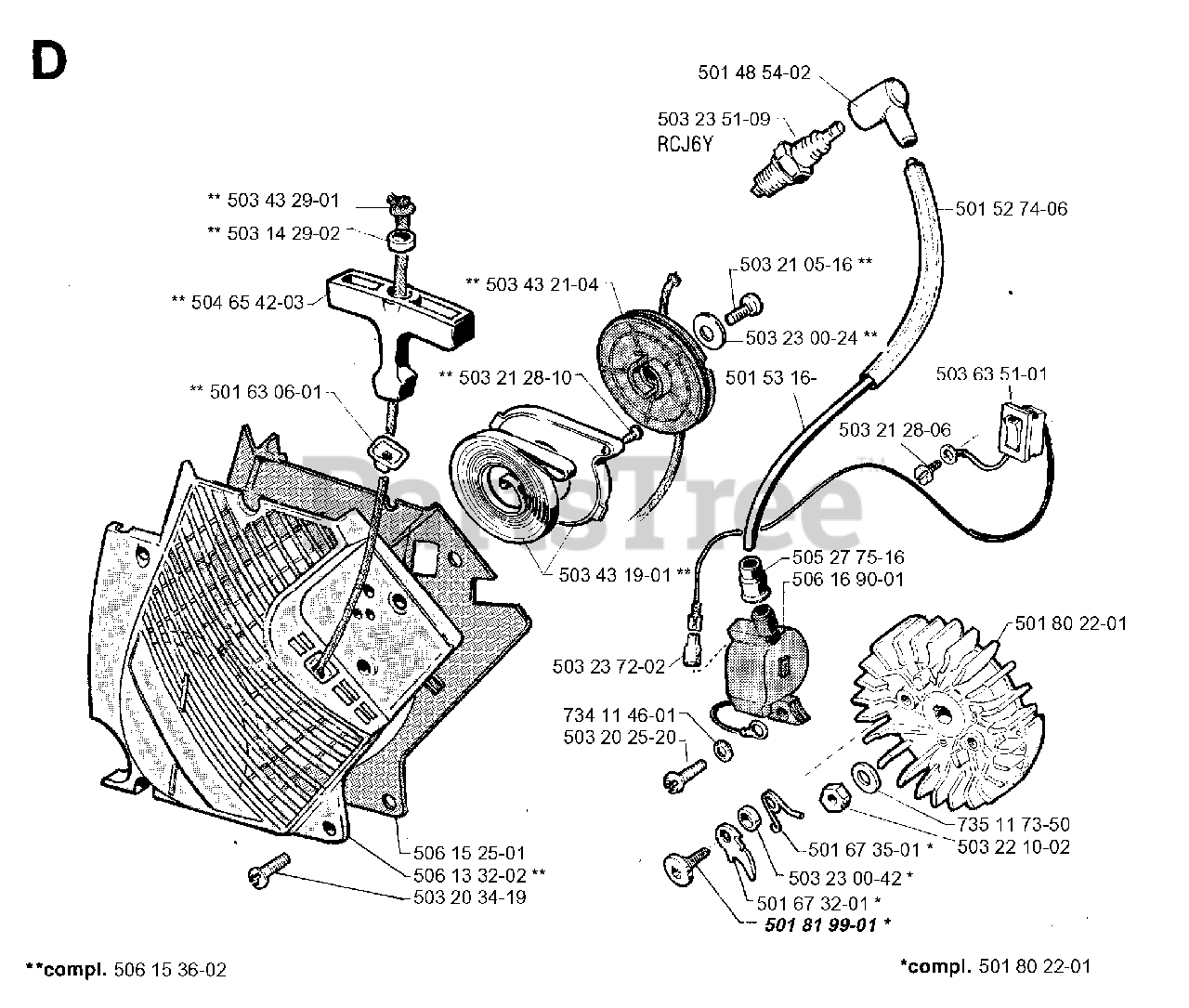

STARTER Parts Diagram

  • Title

5034329-01

Jonsered 503432901

STARTER ROPE

$5.99

$

Usually ships in 3-10 days

0

5031429-02

Jonsered 503142902

WASHER

$2.49

$

In Stock, Qty 13

0

5046542-03

Jonsered 504654203

HANDLE

$10.99

$

In Stock, only 2 left!

0

5016306-01

Jonsered 501630601

SLEEVE

$10.99

$

In Stock, only 2 left!

0

5061536-02

Jonsered 506153602

STARTER DEVICE

$

$

Not available

5032034-19

Jonsered 503203419

SCREW

$21.99

$

In Stock, Qty 15

0

5061332-02

Jonsered 506133202

STARTER HOUSING

$

$

Not available

5061525-01

Jonsered 506152501

AIR CONDUCTOR

$

$

Not available

5032025-20

Jonsered 503202520

SCREW

$6.49

$

In Stock, Qty 10

0

7341146-01

Jonsered 734114601

WASHER
(Superseded to 819070816)

$6.99

$

In Stock, only 1 left!

0

5032372-02

Jonsered 503237202

INSULATING CAP

$4.99

$

In Stock, only 1 left!

0

5034319-01

Jonsered 503431901

RECOIL SPRING

$25.99

$

Usually ships in 3-10 days

0

5032128-10

Jonsered 503212810

SCREW

$3.99

$

In Stock, Qty 12

0

5034321-04

Jonsered 503432104

STARTER PULLEY

$

$

Not available

5014854-02

Jonsered 501485402

SPARK PLUG CONN. KIT

$13.99

$

In Stock, only 3 left!

0

5032351-09

Jonsered 503235109

SPARK PLUG RCJ6Y NLA
(Superseded to 503235112)

$3.49

$

In Stock, Qty 20+

0

5032105-16

Jonsered 503210516

SCREW
(Superseded to 503215716)

$5.99

$

Usually ships in 3-10 days

0

5032300-24

Jonsered 503230024

WASHER 6,4X18X1,5

$4.99

$

In Stock, Qty 20+

0

5015316-

Jonsered 5015316

No Description Available

$

$

Not available

5052775-16

Jonsered 505277516

INSULATING CAP

$10.99

$

Usually ships in 3-10 days

0

5061690-01

Jonsered 506169001

REPL BY 506 16 90-02
(Superseded to 506169002)

$

$

Not available

5016735-01

Jonsered 501673501

SPRING

$7.49

$

In Stock, Qty 10

0

5032300-42

Jonsered 503230042

WASHER

$6.49

$

In Stock, only 2 left!

0

5016732-01

Jonsered 501673201

PAWL

$8.99

$

Usually ships in 3-10 days

0

5018199-01

Jonsered 501819901

SCREW M5X14

$6.49

$

In Stock, Qty 6

0

5018022-01

Jonsered 501802201

FLYWHEEL

$

$

Not available

5032210-02

Jonsered 503221002

NUT M10X1

$6.99

$

In Stock, Qty 6

0

7351173-50

Jonsered 735117350

SPRING WASHER 10.5X18

$5.99

$

Usually ships in 3-10 days

0

5018022-01

Jonsered 501802201

FLYWHEEL

$

$

Not available

5032128-06

Jonsered 503212806

SCREW

$6.49

$

Usually ships in 3-10 days

0

5036351-01

Jonsered 503635101

STOP SWITCH

$35.76

$

Usually ships in 3-10 days

0

5015274-06

Jonsered 501527406

HOSE

$5.99

$

Usually ships in 3-10 days

0
