20943 - Toro 46cm Walk-Behind Mower (SN: 317000001 - 317999999) (2017) Engine and Blade Assembly Parts Diagram

46cm Walk-Behind Mower

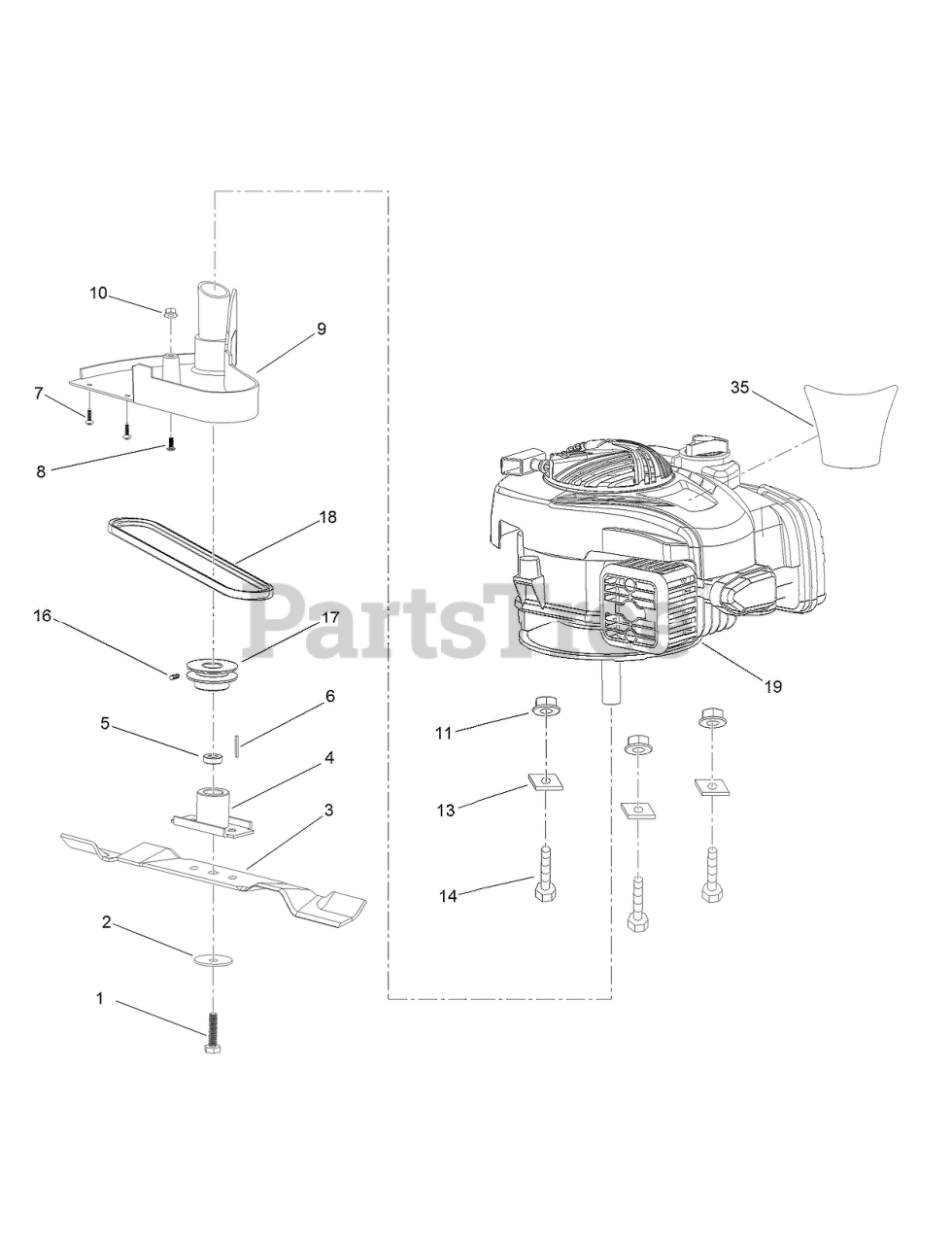

Engine and Blade Assembly Parts Diagram

  • Title
1

Toro 134-0150

BOLT-BLADE

$

$

Currently unavailable

2

Toro 134-0151

WASHER-DISHED

$

$

Currently unavailable

3

Toro 134-0073

BLADE-MULCH

$

$

Currently unavailable

4

Toro 134-0152

SUPPORT-BLADE

$

$

Currently unavailable

5

Toro 134-0153

SHEATH-BLADE

$

$

Currently unavailable

6

Toro 134-0154

KEY-FLAT

$

$

Currently unavailable

7

Toro 134-0155

SCREW-SELF DRIVING

$

$

Currently unavailable

8

Toro 134-0156

SCREW-TOOTH

$

$

Currently unavailable

9

Toro 134-0157

COVER-PULLEY, BELT

$

$

Currently unavailable

10

Toro 134-0117

NUT-LOCK, FLANGE

$

$

Currently unavailable

11

Toro 134-0118

NUT-LOCK, FLANGE

$

$

Currently unavailable

13

Toro 134-0158

WASHER-SQUARE

$

$

Currently unavailable

14

Toro 134-2010

BOLT-BLADE

$

$

Currently unavailable

16

Toro 134-0161

SCREW-GRUB

$

$

Currently unavailable

17

Toro 134-0162

PULLEY-DRIVE

$

$

Currently unavailable

18

Toro 134-0163

BELT-TRIANGLE

$

$

Currently unavailable

19

Toro 134-0115

ENGINE-BRIGGS STRATTON, 500E

$

$

Currently unavailable

35

Toro 134-0059

DECAL-SHROUD

$

$

Currently unavailable
