2094 - Jonsered Chainsaw (1991-06) HANDLE Parts Diagram

Chainsaw

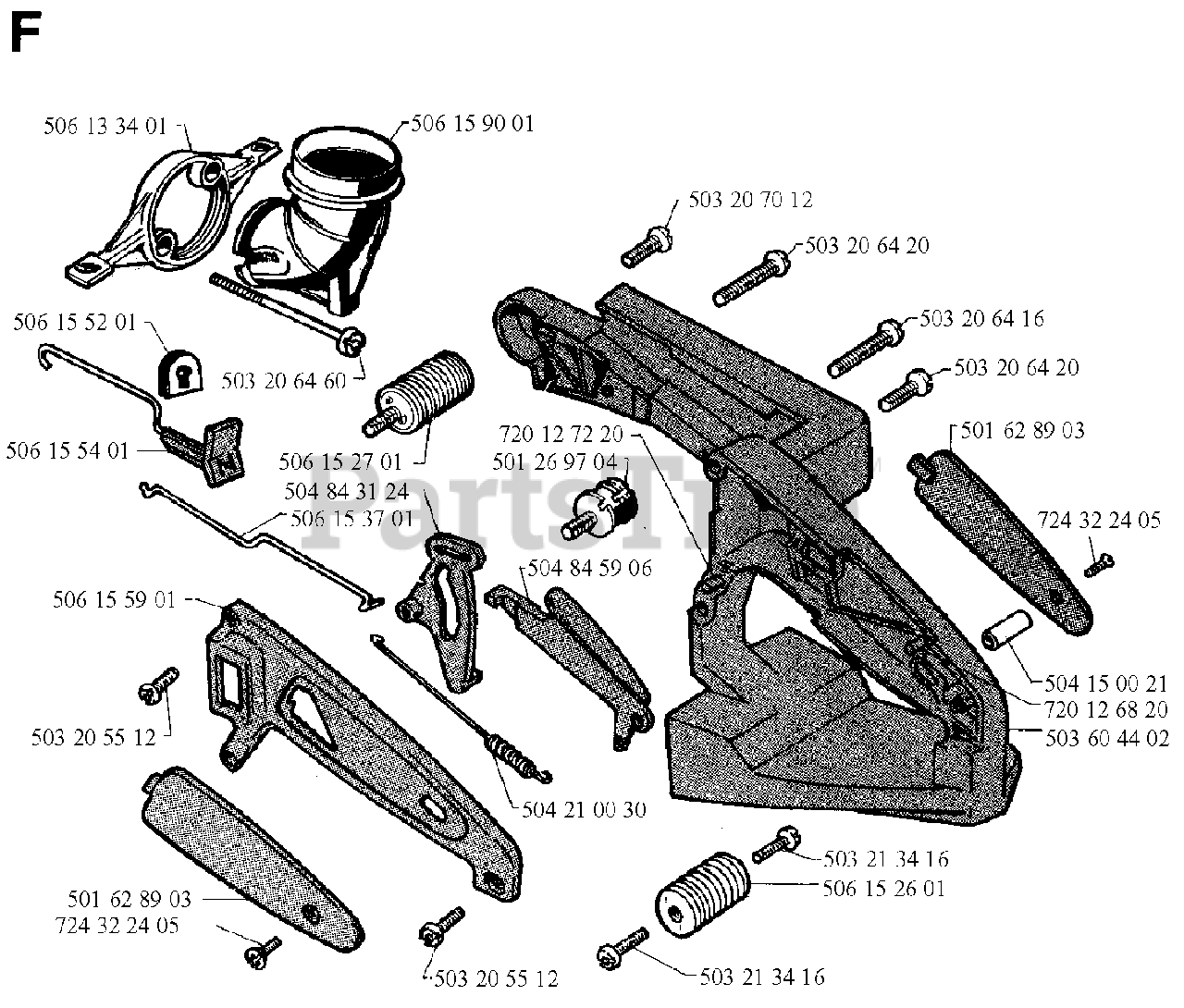

HANDLE Parts Diagram

  • Title
506133401

Jonsered 506133401

REPL BY 506 13 34-02
(Superseded to 506133402)

$

$

Not available

506155201

$

$

Not available

506155401

Jonsered 506155401

CHOKE CONTROL

$

$

Not available

506155901

$

$

Not available

503205512

$

$

Not available

501628903

Jonsered 501628903

HANDLE COVER
(Superseded to 501628909)

$8.99

$

Usually ships in 3-10 days

0

724322405

Jonsered 724322405

SCREW 3X10

$4.99

$

In Stock, only 3 left!

0

503205512

$

$

Not available

504210030

$

$

Not available

506153701

Jonsered 506153701

THROTTLE ROD

$

$

Not available

504843124

Jonsered 504843124

THROTTLE TRIGGER

$

$

Not available

506152701

$

$

Not available

503206460

Jonsered 503206460

REPL BY 503 20 34-60
(Superseded to 503203460)

$

$

Not available

506159001

Jonsered 506159001

INDUCTION PIPE

$

$

Not available

720127220

Jonsered 720127220

PIN CPH8 4X20

$4.99

$

In Stock, only 1 left!

0

501269704

Jonsered 501269704

ANTIVIBE ELEMENT
(Superseded to 501269705)

$11.99

$

In Stock, only 2 left!

0

504845906

Jonsered 504845906

THROTTLE CATCH

$

$

Not available

503213416

Jonsered 503213416

REPL BY 503 21 05-16
(Superseded to 503210516)

$5.99

$

Usually ships in 3-10 days

0

506152601

$

$

Not available

503213416

Jonsered 503213416

REPL BY 503 21 05-16
(Superseded to 503210516)

$5.99

$

Usually ships in 3-10 days

0

503604402

Jonsered 503604402

HANDLE NLA

$

$

Not available

720126820

Jonsered 720126820

NO LONGER AVAILABLE NLA

$

$

Not available

504150021

$

$

Not available

724322405

Jonsered 724322405

SCREW 3X10

$4.99

$

In Stock, only 3 left!

0

501628903

Jonsered 501628903

HANDLE COVER
(Superseded to 501628909)

$8.99

$

Usually ships in 3-10 days

0

503206420

Jonsered 503206420

TORX SCREW MRT M5X20

$

$

Not available

503206416

Jonsered 503206416

SCREW
(Superseded to 503203416)

$4.99

$

In Stock, only 1 left!

0

503206420

Jonsered 503206420

TORX SCREW MRT M5X20

$

$

Not available

503207012

$

$

Not available
