2094 - Jonsered Chainsaw (1991-06) CYLINDER PISTON MUFFLER Parts Diagram

Chainsaw

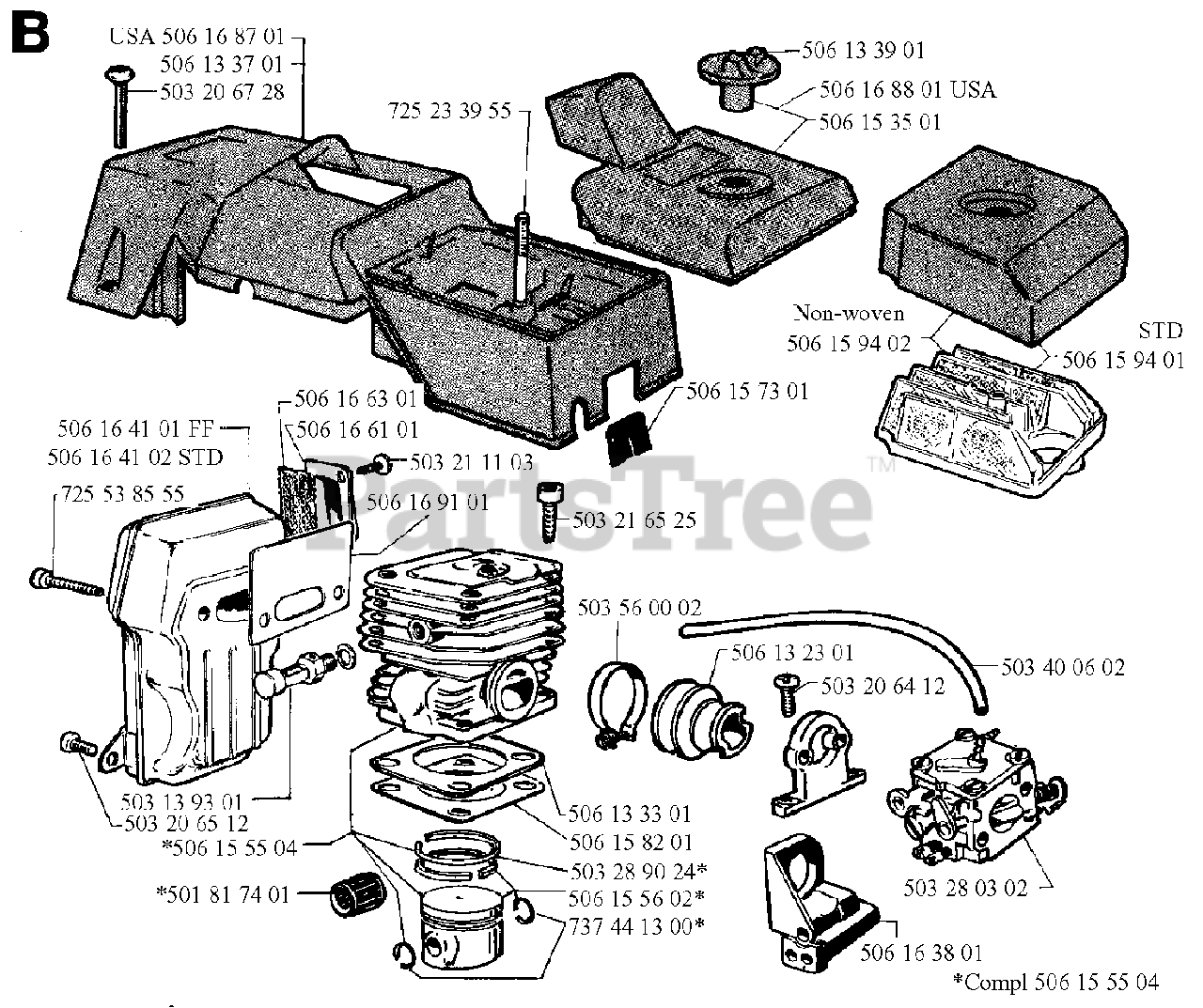

CYLINDER PISTON MUFFLER Parts Diagram

  • Title
506168701

Jonsered 506168701

CYLINDER COVER

Note: USA

$

$

Not available

506133701

Jonsered 506133701

CYLINDER COVER

$

$

Not available

503206728

Jonsered 503206728

SCREW
(Superseded to 503203228)

$4.99

$

In Stock, Qty 7

0

506164101

Jonsered 506164101

REPL BY 506 16 41-04
(Superseded to 506164104)

Note: FF

$

$

Not available

506164102

Jonsered 506164102

REPL BY 506 16 41-06
(Superseded to 506164106)

Note: STD

$

$

Not available

725538555

$

$

Not available

503139301

Jonsered 503139301

VALVE
(Superseded to 503665601)

$63.99

$

In Stock, only 2 left!

0

503206512

Jonsered 503206512

SCREW
(Superseded to 503200312)

$6.99

$

Usually ships in 3-10 days

0

506155504

Jonsered 506155504

REPL BY 506 15 55-06
(Superseded to 506155506)

$655.99

$

Usually ships in 3-10 days

0

501817401

Jonsered 501817401

NEEDLE BEARING
(Superseded to 503256101)

$28.99

$

In Stock, only 1 left!

0

737441300

$2.99

$

In Stock, only 2 left!

0

506155602

Jonsered 506155602

PISTON CPL 394
(Superseded to 503460202)

$171.93

$

Usually ships in 3-10 days

0

503289024

Jonsered 503289024

PISTON RING

$31.99

$

In Stock, only 1 left!

0

506158201

$7.99

$

Usually ships in 3-10 days

0

506133301

Jonsered 506133301

REPL BY 503 81 64-01
(Superseded to 503816401)

$

$

Not available

506169101

Jonsered 506169101

CONDUCTOR

$

$

Not available

503211103

Jonsered 503211103

SCREW CSS B8X10

$4.99

$

In Stock, only 1 left!

0

506166101

Jonsered 506166101

No Description Available

$

$

Not available

506166301

$28.84

$

Usually ships in 3-10 days

0

725233955

Jonsered 725233955

SCREW M5 X 40

$

$

Not available

506157301

$

$

Not available

503216525

$

$

Not available

503560002

$9.49

$

Usually ships in 3-10 days

0

506155504

Jonsered 506155504

REPL BY 506 15 55-06
(Superseded to 506155506)

$655.99

$

Usually ships in 3-10 days

0

506163801

$8.07

$

Usually ships in 3-10 days

0

503280302

Jonsered 503280302

CARBURETOR

$

$

Not available

503206412

Jonsered 503206412

SCREW
(Superseded to 503200712)

$7.49

$

In Stock, Qty 12

0

506132301

Jonsered 506132301

INLET PIPE **

$

$

Not available

503400602

$13.99

$

Usually ships in 3-10 days

0

506159402

Jonsered 506159402

AIRFILTER

Note: NON-WOVEN

$

$

Not available

506159401

Jonsered 506159401

AIR FILTER

Note: STD

$

$

Not available

506153501

Jonsered 506153501

FILTER COVER

$

$

Not available

506168801

Jonsered 506168801

FILTER COVER, USA

Note: USA

$

$

Not available

506133901

$

$

Not available
