20929 B - Toro 48cm Rear Bagging Walk-Behind Mower (SN: 069000001 - 069999999) (1996) S. P. REAR AXLE ASSEMBLY Parts Diagram

48cm Rear Bagging Walk-Behind Mower

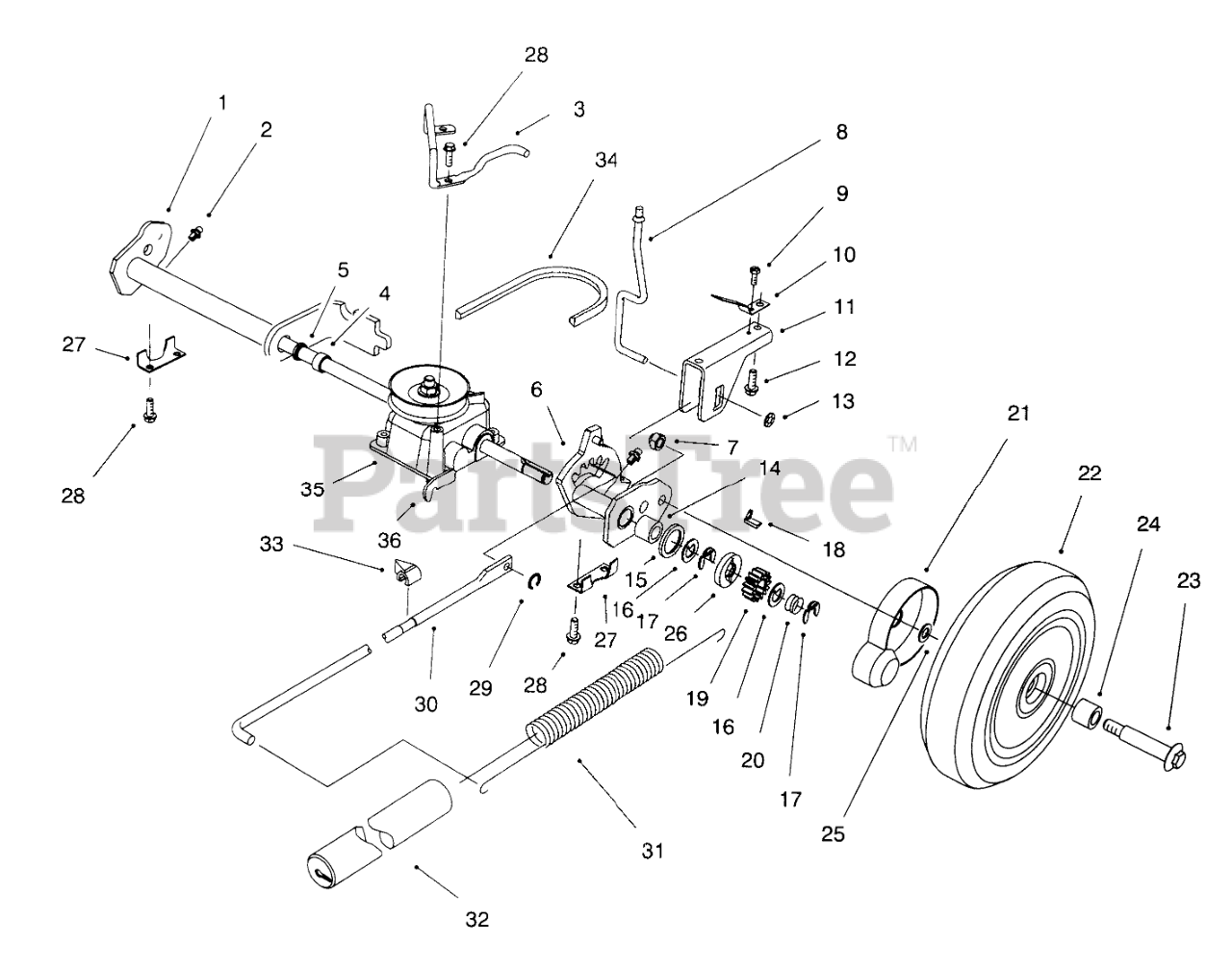

S. P. REAR AXLE ASSEMBLY Parts Diagram

  • Title
1

Toro 92-9680

Rear Pivot Assembly R.H. (Incl. Ref. #2, 4, 5 & 14)

$213.99

$

Usually ships in 3-6 days

0

2

Toro 302-26

FITTING-GREASE

$7.49

$

In Stock, only 1 left!

0

3

Toro 71-9850

Retainer Belt
(Superseded to 95-2740-03)

$

$

Not available

4

Toro 47-2890

BUSHING

$3.99

$

Usually ships in 3-6 days

0

5

Toro 47-6730

SEAL-OIL

$12.99

$

In Stock, Qty 20+

0

6

Toro 92-9677

Rear Pivot Assembly L.H. (Incl. Ref. #2, 4, 5 & 14)

$

$

Not available

7

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

8

Toro 71-7840

TRIGGER ROD

$27.99

$

Usually ships in 3-6 days

0

9

Toro 32144-31

SCREW 8 - 32 X 250

$

$

Not available

10

Toro 71-8060

SPRING - TRIGGER RET

$

$

Not available

11

Toro 71-8080

SADDLE - HOC

$

$

Not available

12

Toro 63-8590

SCREW

$1.49

$

In Stock, only 4 left!

0

13

Toro 32112-13

PUSHNUT

$2.49

$

Usually ships in 3-6 days

0

14

Toro 48-2060

BEARING-ROLLER
(Superseded to 117-3500)

$5.49

$

In Stock, Qty 16

0

15

Toro 65-4710

RING-FRICTION

$3.49

$

In Stock, Qty 5

0

16

Toro 65-4740

WASHER-THRUST, KEYED

$2.49

$

In Stock, only 2 left!

0

17

Toro 65-2720

RING-CLIP, LOCKING

$1.49

$

In Stock, Qty 6

0

18

Toro 66-6050

KEY-ROCKING, LH
(Superseded to 139-6644)

$7.49

$

In Stock, Qty 8

0

Toro 66-6040

KEY-ROCKING, RH
(Superseded to 139-6643)

Note: Not illustrated

$7.49

$

In Stock, Qty 12

0

19

Toro 65-4750

GEAR-PINION

$11.99

$

In Stock, Qty 18

0

20

Toro 65-4720

SPRING-COMPRESSION

$1.49

$

In Stock, Qty 20+

0

21

Toro 74-1660

COVER-WHEEL

$8.49

$

In Stock, only 3 left!

0

22

Toro 14-9959

Wheel, Tire & Gear Assy. (Incl. Ref. #24)

$62.99

$

In Stock, only 2 left!

0

23

Toro 27-6230

BOLT-WHEEL

$8.49

$

Usually ships in 3-6 days

0

24

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 8

0

25

Toro 74-1670

SPACER-COVER, WHEEL

$7.99

$

Usually ships in 3-6 days

0

26

Toro 65-4760

WASHER-CLUTCH

$1.49

$

In Stock, Qty 20+

0

27

Toro 71-7770

REAR SECURING PLATE

$

$

Not available

28

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

29

Toro 32151-93

GRIP RING

$0.99

$

Usually ships in 3-6 days

0

30

Toro 71-7970

LINK ROD

$

$

Not available

31

Toro 71-7740

SPRING-COUNTERBALANCE

$47.99

$

Usually ships in 3-6 days

0

32

Toro 71-8450

COVER-SPRING

$

$

Currently unavailable

33

Toro 71-7980

INDICATOR-HEIGHT OF CUT

$9.99

$

Usually ships in 3-6 days

0

34

Toro 71-9450

V-BELT

$23.99

$

In Stock, only 2 left!

0

35

Toro 71-9600

Gearcase Assembly (Incl. Ref. #36)

$

$

Not available

36

Toro 71-9630

Bracket-Traction
(Superseded to 98-2039)

$

$

Not available
