20929 B - Toro 48cm Rear Bagging Walk-Behind Mower (SN: 069000001 - 069999999) (1996) GTS 150 Parts Diagram

48cm Rear Bagging Walk-Behind Mower

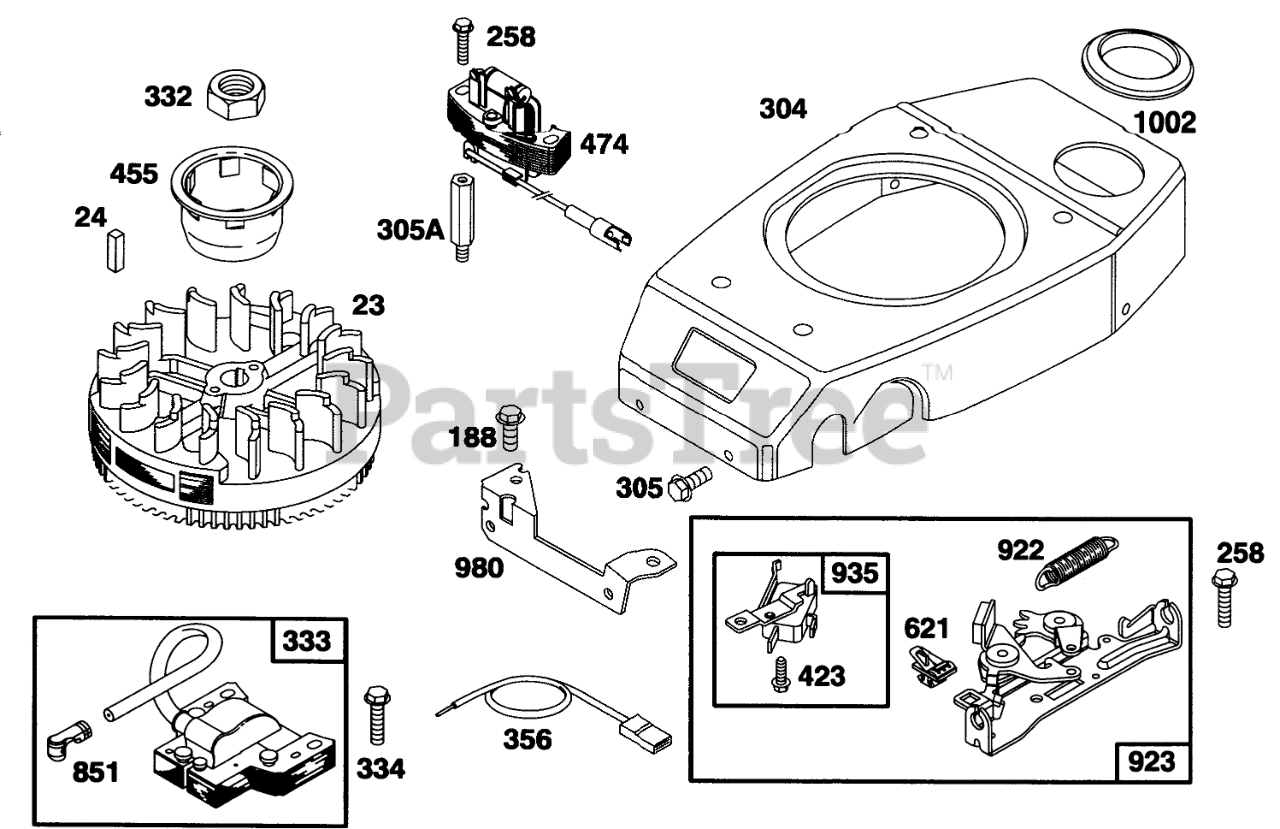

GTS 150 Parts Diagram

  • Title
23

Toro 77-8320

FLYWHEEL - MAGNETO

$194.99

$

Usually ships in 3-6 days

0

24

Toro 77-8340

KEY - FLYWHEEL

$5.49

$

Usually ships in 3-6 days

0

188

Toro 94-1652

SCREW - HEX HEAD

$6.99

$

Usually ships in 3-6 days

0

258

Toro 77-8870

SCREW - SEM

$

$

Not available

304

Toro 77-9480

Housing-Blower

$

$

Not available

305

Toro 77-8310

SCREW - HEX HEAD

$

$

Not available

305A

Toro 77-8390

STUD - STATOR MTG
(Superseded to 99-1014)

$

$

Not available

332

Toro 94-1673

NUT-FLYWHEEL

$

$

Not available

333

Toro 77-8420

ARMATURE - MAGNETO
(Superseded to 99-1005)

$57.99

$

In Stock, Qty 20+

0

334

Toro 77-9420

SCREW - ARMATURE MTG

$

$

Not available

356

Toro 77-8400

WIRE - GROUND

$22.99

$

Usually ships in 3-6 days

0

423

Toro 77-9520

SCREW-HH

$

$

Not available

455

Toro 94-1653

CUP - STARTER

$17.99

$

Usually ships in 3-6 days

0

474

Toro 77-8370

STATOR - ALTERNATER
(Superseded to 99-1011)

$142.99

$

Usually ships in 3-6 days

0

621

Toro 77-8010

STOP SWITCH

$

$

Not available

851

Toro 77-9450

TERMINAL-PLUG, SPARK

$

$

Not available

922

Toro 94-1663

SPRING - BRAKE

$

$

Not available

923

Toro 77-9460

BRAKE ASSEMBLY

$

$

Not available

935

Toro 77-9530

SWITCH - STARTER
(Superseded to 100-9109)

$

$

Not available

980

Toro 77-7140

BRACKET-BLOWER HSG

$

$

Not available

1002

Toro 77-7180

GROMMET

$

$

Not available
