20928 BC - Toro 48cm Rear Bagging Walk-Behind Mower (SN: 059000001 - 059999999) (1995) HANDLE ASSEMBLY Parts Diagram

48cm Rear Bagging Walk-Behind Mower

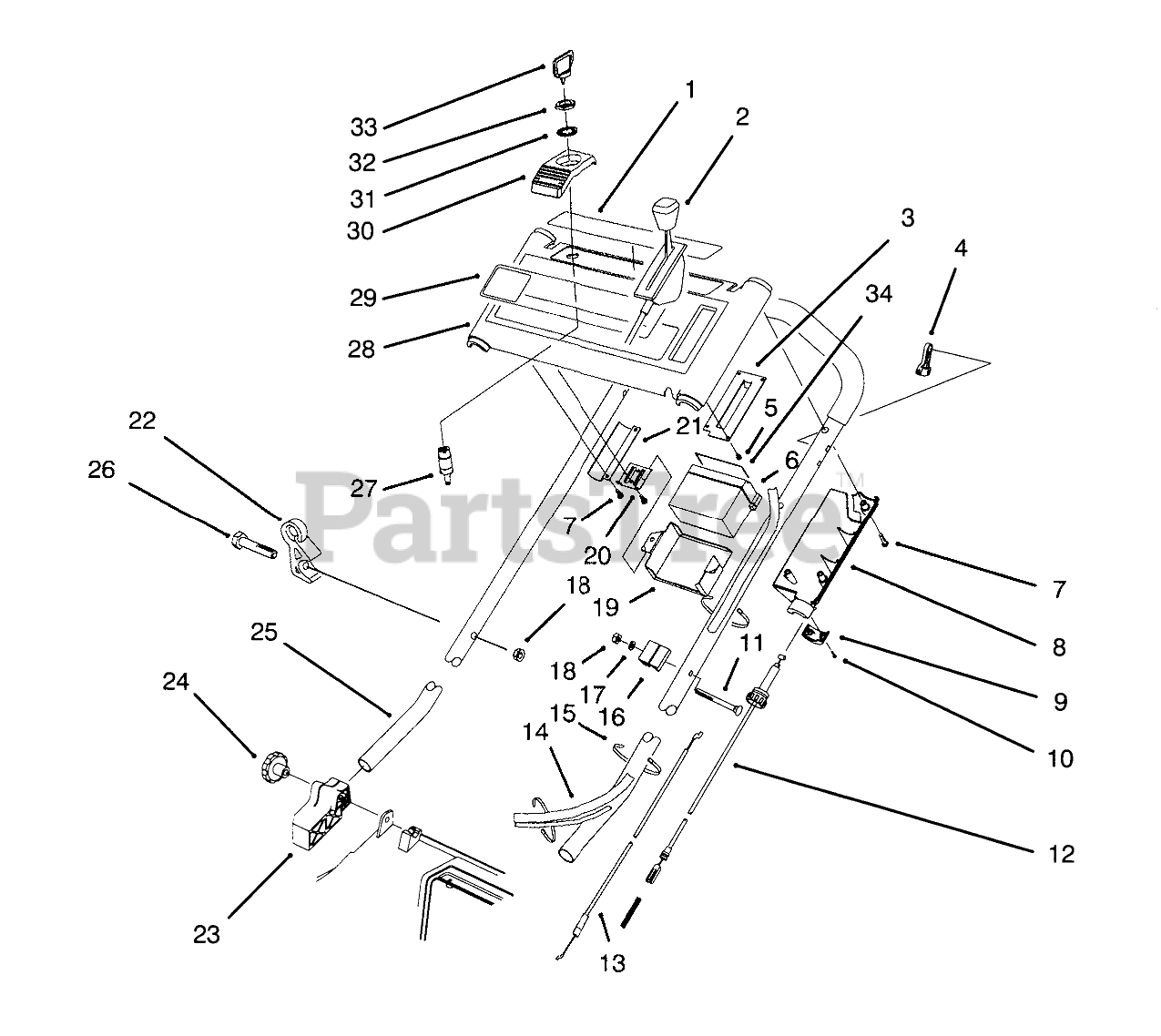

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 93-6651

DECAL - INSTRUCTION

$

$

Not available

2

Toro 93-1115

CONTROL - THROTTLE

$

$

Not available

3

Toro 71-8040

THROTTLE PLATE

$

$

Not available

4

Toro 46-5520

LEVER-TRACTION

$

$

Not available

5

Toro 32144-98

#6-19X.25 PLASK FORM SC

$

$

Not available

6

Toro 55-7520

BATTERY ASSEMBLY

$200.99

$

Usually ships in 3-6 days

0

7

Toro 32144-97

SCREW-PPH, PLASTITE

$0.99

$

In Stock, Qty 10

0

8

Toro 93-0339

COVER-THROTTLE, LEVER

$

$

Not available

9

Toro 71-7630

LOWER THROTTLE CAP

$14.99

$

Usually ships in 3-6 days

0

10

Toro 32144-99

#4-14X.62 PLASTITE SCW

$

$

Not available

11

Toro 46-6432

SCREW-HANDLE

$14.99

$

Usually ships in 3-6 days

0

12

Toro 93-1119

CABLE - TRACTION

$

$

Not available

13

Toro 93-1116

CABLE - BRAKE

$68.99

$

Usually ships in 3-6 days

0

14

Toro 80-4791

Harness-Wire
(Superseded to 80-4794)

$

$

Not available

15

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

16

Toro 46-6980

SUPPORT-CABLE

$15.99

$

In Stock, only 1 left!

0

17

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 10

0

19

Toro 55-8180

Retainer-Battery
(Superseded to 55-8180-03)

$41.99

$

Usually ships in 3-6 days

0

20

Toro 71-8280

BATTERY BRACKET

$12.99

$

Usually ships in 3-6 days

0

21

Toro 71-8130

Bracket-Panel
(Superseded to 71-8130-03)

$

$

Not available

22

Toro 93-3772

GUIDE - ROPE

$

$

Not available

23

Toro 71-8100

MOUNT-HANDLE, RH

$

$

Not available

Toro 71-8090

MOUNT-HANDLE, LH

Note: Not illustrated

$

$

Not available

24

Toro 19-4050

KNOB

$17.99

$

In Stock, only 2 left!

0

25

Toro 71-9023

HANDLE (DIPPED)

$217.99

$

Usually ships in 3-6 days

0

26

Toro 321-52

.250-20X1.625 HH SCREW

$

$

Not available

27

Toro 46-5780

Switch-Starter (Incl. Ref. #31 & 32)

$29.99

$

In Stock, only 1 left!

0

28

Toro 16-8299

Panel-Control (Incl. Ref. #1 & 29)

$

$

Not available

29

Toro 71-9864

DECAL - PANEL KEY

$

$

Not available

30

Toro 71-8200

IGNITION SWITCH BRACKET

$11.99

$

Usually ships in 3-6 days

0

31

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 2 left!

0

32

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

33

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 12

0

34

Toro 93-6668

DECAL-BATTERY

$20.99

$

Usually ships in 3-6 days

0
