20928 BC - Toro 48cm Rear Bagging Walk-Behind Mower (SN: 049000001 - 049999999) (1994) ENGINE ASSEMBLY Parts Diagram

48cm Rear Bagging Walk-Behind Mower

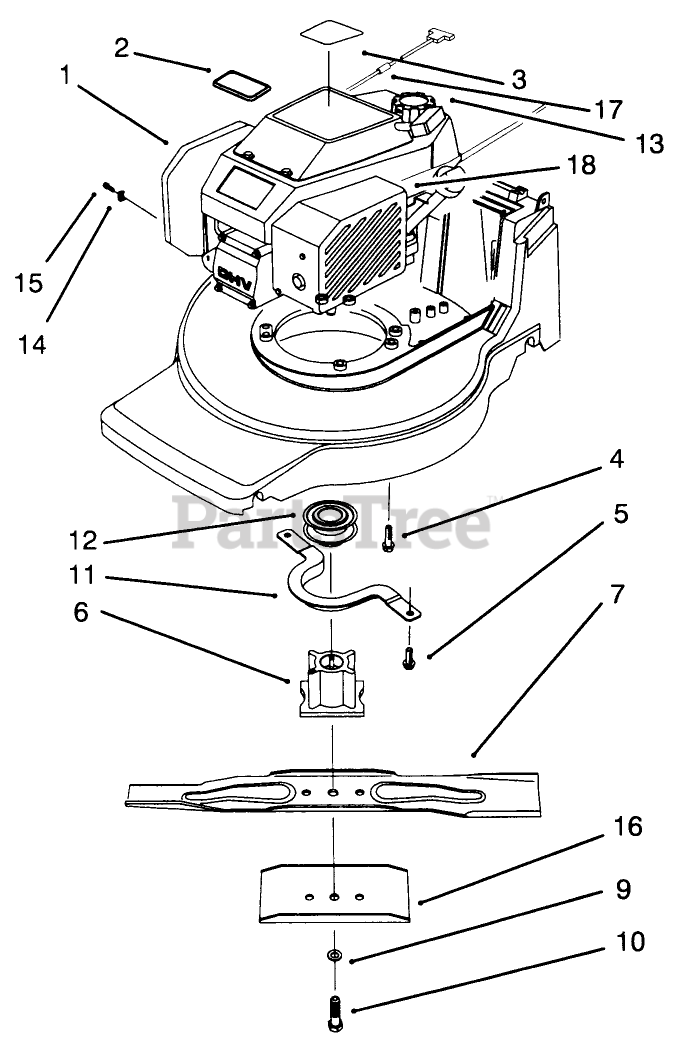

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro 77-8953

Engine
(Superseded to 77-9020)

$

$

Not available

2

Toro 92-2289

PLATE-LOGO
(Superseded to 98-3206)

$2.49

$

In Stock, only 2 left!

0

3

Toro 92-7857

DECAL - ENGINE
(Superseded to 93-4355)

$

$

Not available

4

Toro 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

5

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

6

Toro 71-7940

BLADE RETAINER - 25 MM

$

$

Not available

7

Toro 92-9813

Blade
(Superseded to 92-9813-03)

$81.99

$

Usually ships in 3-6 days

0

9

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

10

Toro 26-0672

BOLT-BLADE

$6.99

$

Usually ships in 3-6 days

0

11

Toro 71-7960

Guide-Belt
(Superseded to 71-7960-03)

$

$

Not available

12

Toro 62-7550

PULLEY-DRIVE, ZONE START

$

$

Not available

13

Toro 55-3570

GAS CAP ASM

$14.99

$

In Stock, Qty 11

0

14

Toro 2210-249

CLAMP-CASING

$3.49

$

Usually ships in 3-6 days

0

15

Toro 86-7990

CLAMP SCREW F/W ENGINE

$3.49

$

Usually ships in 3-6 days

0

16

Toro 92-9812

Stiffener Blade
(Superseded to 92-9812-03)

$24.99

$

Usually ships in 3-6 days

0

17

Toro 2210-316

STOP-ROPE

$7.99

$

Usually ships in 3-6 days

0

18

Toro 77-7120

BRAKE COVER-P/W ENGINE
(Superseded to 77-9550)

$

$

Not available
