20926 B - Toro 48cm Rear Bagging Walk-Behind Mower (SN: 010000001 - 019999999) (1991) S.P. HANDLE ASSEMBLY Parts Diagram

48cm Rear Bagging Walk-Behind Mower

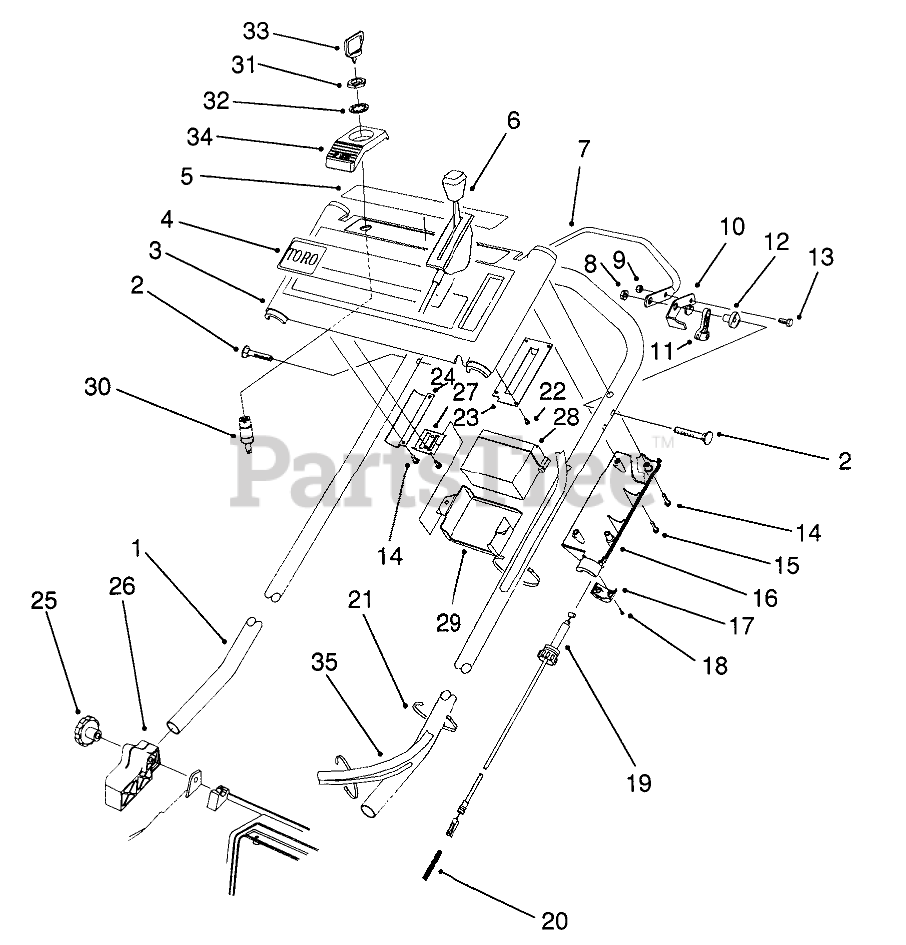

S.P. HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 71-8030

Handle

$

$

Not available

2

Toro 17-9426

SCREW-HANDLE

$3.99

$

In Stock, Qty 7

0

3

Toro 14-0509

Panel-Control (Incl Ref. #4, & 5)

$

$

Not available

4

Toro 71-8330

DECAL - TORO

$

$

Not available

5

Toro 71-8570

DECAL - DANGER PANEL

$

$

Not available

6

Toro 66-0232

Control-Throttle Bend Type #1 Sheath Lg. 42.50 Wire Lg. 2 1/2
(Superseded to 66-0236)

$131.99

$

Usually ships in 3-6 days

0

7

Toro 46-9900

CONTROL BAR

$

$

Not available

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

10

Toro 46-8800

CONTROL LEVER

$

$

Not available

11

Toro 46-5520

LEVER-TRACTION

$

$

Not available

12

Toro 66-0330

SPACER-SUPPORT

$7.49

$

Usually ships in 3-6 days

0

13

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Toro 32144-97

SCREW-PPH, PLASTITE

$0.99

$

In Stock, Qty 10

0

15

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

16

Toro 71-7680

Cover-Throttle Lower
(Superseded to 93-0339)

$

$

Not available

17

Toro 71-7630

LOWER THROTTLE CAP

$14.99

$

Usually ships in 3-6 days

0

18

Toro 32144-99

#4-14X.62 PLASTITE SCW

$

$

Not available

19

Toro 71-8110

TRACTION CABLE

$65.99

$

Usually ships in 3-6 days

0

20

Toro 71-8310

SPRING-COMPRESSION

$4.99

$

Usually ships in 3-6 days

0

21

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

22

Toro 32144-98

#6-19X.25 PLASK FORM SC

$

$

Not available

23

Toro 71-8040

THROTTLE PLATE

$

$

Not available

24

Toro 71-8130

Bracket-Panel
(Superseded to 71-8130-03)

$

$

Not available

25

$17.99

$

In Stock, only 2 left!

0

26

Toro 71-8100

MOUNT-HANDLE, RH

$

$

Not available

Toro 71-8090

MOUNT-HANDLE, LH

$

$

Not available

27

Toro 71-8280

BATTERY BRACKET

$12.99

$

Usually ships in 3-6 days

0

28

Toro 63-8570

Battery
(Superseded to 99-5262)

$

$

Not available

29

Toro 63-8480

BATTERY RETAINER

$

$

Not available

30

Toro 46-5780

Switch-Starter (Incl. Ref. #31, & 32)

$29.99

$

In Stock, only 1 left!

0

31

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

32

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 2 left!

0

33

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 12

0

34

Toro 71-8200

IGNITION SWITCH BRACKET

$11.99

$

Usually ships in 3-6 days

0

35

Toro 49-8312

WIRE HARNESS

$115.99

$

Usually ships in 3-6 days

0
