20923 B - Toro 48cm Rear Bagging Walk-Behind Mower (SN: 069000001 - 069999999) (1996) ENGINE GTS 150 Parts Diagram

48cm Rear Bagging Walk-Behind Mower

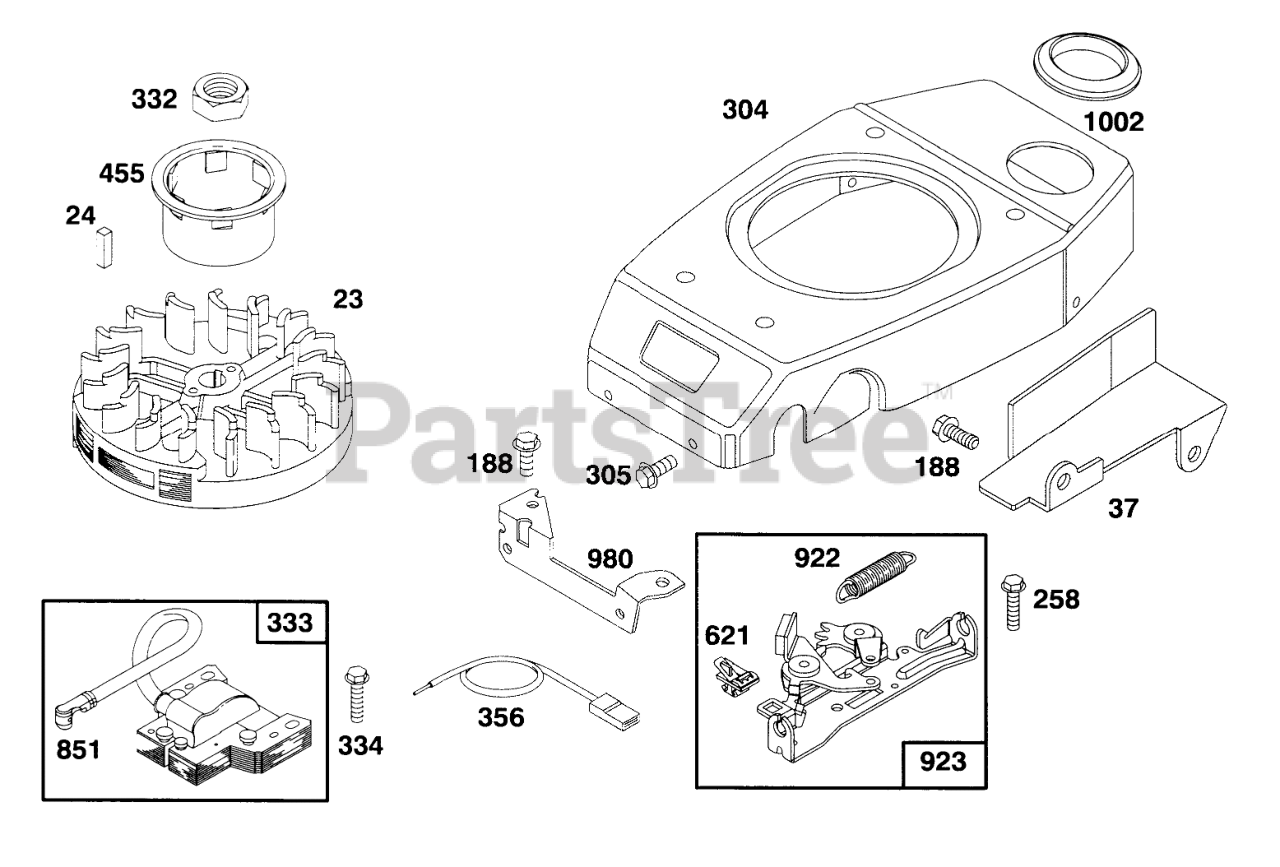

ENGINE GTS 150 Parts Diagram

  • Title
23

Toro 77-8330

FLYWHEEL - MAGNETO

$

$

Not available

24

Toro 77-8340

KEY - FLYWHEEL

$6.99

$

Usually ships in 3-6 days

0

37

Toro 77-7190

GUARD - FLYWHEEL

$22.99

$

Usually ships in 3-6 days

0

188

Toro 77-9360

Screw-Cap
(Superseded to 94-1652)

$

$

Not available

258

Toro 77-8870

SCREW - SEM

$

$

Not available

304

Toro 77-8260

HOUSING - BLOWER

$

$

Not available

305

Toro 77-8310

SCREW - HEX HEAD

$

$

Not available

332

Toro 77-8360

NUT - HEXAGON

$

$

Not available

333

Toro 77-8420

ARMATURE - MAGNETO
(Superseded to 99-1005)

$57.99

$

In Stock, Qty 20+

0

334

Toro 77-7420

SCREW - SEM

$

$

Not available

356

Toro 77-8400

WIRE - GROUND

$

$

Not available

455

Toro 77-8350

CUP - STARTER

$

$

Not available

621

Toro 77-8010

STOP SWITCH

$

$

Not available

851

Toro 77-9450

TERMINAL-PLUG, SPARK

$

$

Not available

922

Toro 77-8860

Spring-Brake
(Superseded to 94-1663)

$

$

Not available

923

Toro 77-9460

BRAKE ASSEMBLY

$

$

Not available

980

Toro 77-7140

BRACKET-BLOWER HSG

$

$

Not available

1002

Toro 77-7180

GROMMET

$

$

Not available
