20922 BC - Toro 48cm Rear Bagging Walk-Behind Mower (SN: 059000001 - 059999999) (1995) S.P. HANDLE ASSEMBLY Parts Diagram

48cm Rear Bagging Walk-Behind Mower

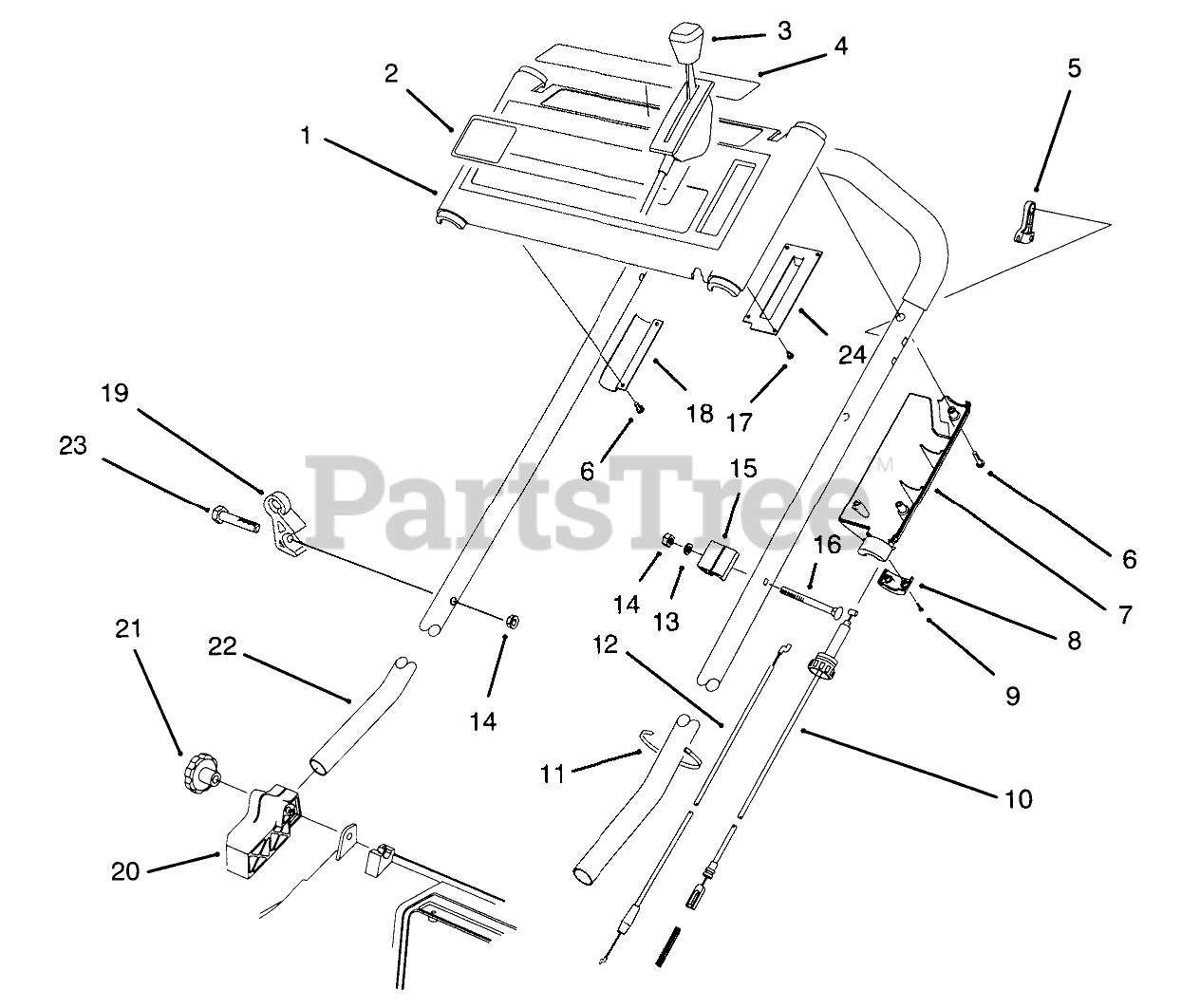

S.P. HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 16-8249

Panel-Control(Incl Ref. #2,4)

$

$

Not available

2

Toro 71-9863

DECAL - PANEL OHV

$

$

Not available

3

Toro 93-1115

CONTROL - THROTTLE

$

$

Not available

4

Toro 93-6650

DECAL - INSTRUCTION

$

$

Not available

5

Toro 46-5520

LEVER-TRACTION

$

$

Not available

6

Toro 32144-97

SCREW-PPH, PLASTITE

$0.99

$

In Stock, only 4 left!

0

7

Toro 93-0339

COVER-THROTTLE, LEVER

$

$

Not available

8

Toro 71-7630

LOWER THROTTLE CAP

$14.99

$

Usually ships in 3-6 days

0

9

Toro 32144-99

#4-14X.62 PLASTITE SCW

$

$

Not available

10

Toro 93-1119

CABLE - TRACTION

$

$

Not available

11

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 7

0

12

Toro 93-1116

CABLE - BRAKE

$68.99

$

Usually ships in 3-6 days

0

13

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

15

Toro 46-6980

SUPPORT-CABLE

$15.99

$

In Stock, only 2 left!

0

16

Toro 46-6432

SCREW-HANDLE

$14.99

$

Usually ships in 3-6 days

0

17

Toro 32144-98

#6-19X.25 PLASK FORM SC

$

$

Not available

18

Toro 71-8130

Bracket-Panel
(Superseded to 71-8130-03)

$

$

Not available

19

Toro 93-3772

GUIDE - ROPE

$

$

Not available

20

Toro 71-8100

MOUNT-HANDLE, RH

$

$

Not available

Toro 71-8090

MOUNT-HANDLE, LH

Note: Not illustrated

$

$

Not available

21

Toro 19-4050

KNOB

$17.99

$

In Stock, only 3 left!

0

22

Toro 71-9023

HANDLE (DIPPED)

$217.99

$

Usually ships in 3-6 days

0

23

Toro 321-52

.250-20X1.625 HH SCREW

$

$

Not available

24

Toro 71-8040

THROTTLE PLATE

$

$

Not available
