20920 B - Toro 48cm Rear Bagging Walk-Behind Mower (SN: 000000001 - 000999999) (1990) ENGINE ASSEMBLY Parts Diagram

48cm Rear Bagging Walk-Behind Mower

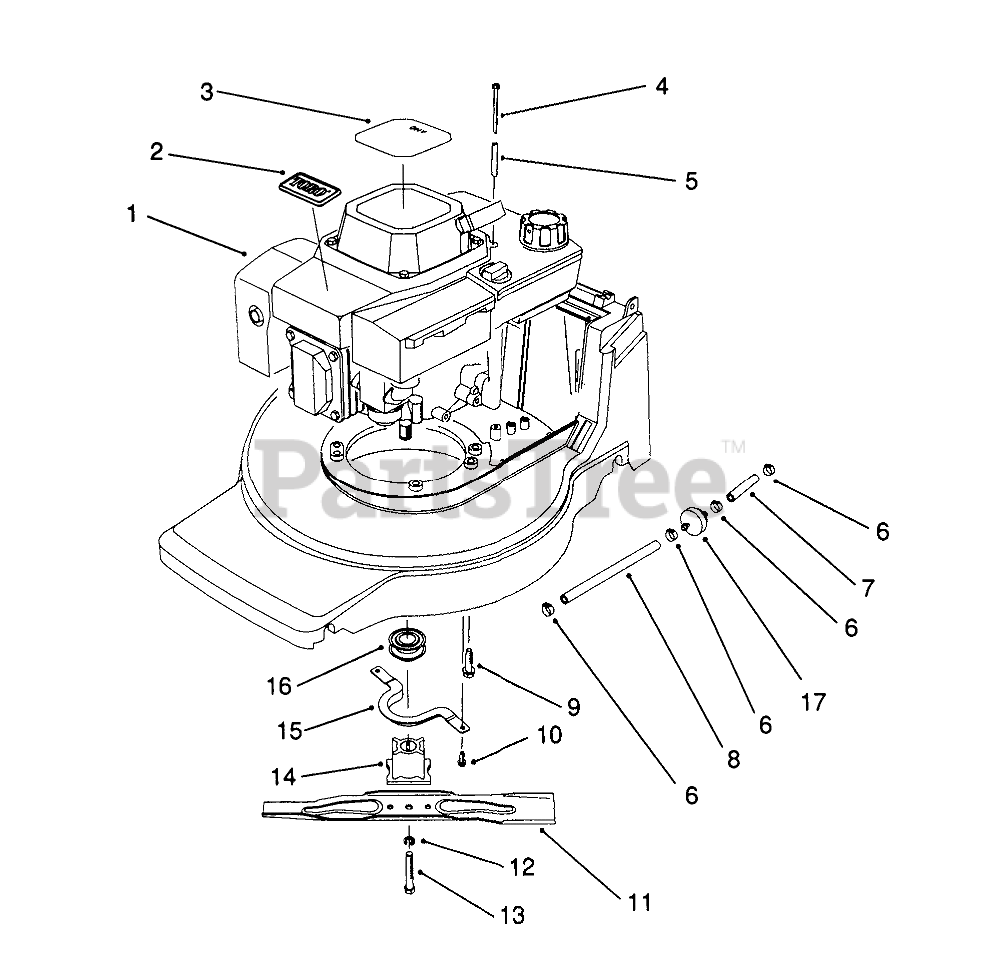

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro 77-2810

Engine-OHV
(Superseded to 72-4144)

$

$

Not available

2

Toro 46-8290

TORO LOGO PLT
(Superseded to 98-3206)

$2.49

$

In Stock, only 2 left!

0

3

Toro 57-3120

DECAL-HV INT'L

$

$

Not available

4

Toro 56-6610

THRD FORMING SCREW

$5.49

$

Usually ships in 3-6 days

0

5

Toro 57-3830

TUBULAR SPACER

$5.99

$

Usually ships in 3-6 days

0

6

Toro 2412-95

CLAMP-FUEL LINE

$1.99

$

In Stock, Qty 8

0

7

Toro 51-3211

LINE-GAS

$7.49

$

In Stock, only 3 left!

0

8

Toro 51-3214

HOSE-FUEL

$5.49

$

In Stock, only 2 left!

0

9

Toro 11-0590

SCREW-HWHTF
(Superseded to 32144-102)

$3.49

$

Usually ships in 3-6 days

0

10

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

11

Toro 71-8210

Blade-48cm
(Superseded to 71-8210-03)

$90.99

$

Usually ships in 3-6 days

0

12

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

13

Toro 26-0672

BOLT-BLADE

$6.99

$

Usually ships in 3-6 days

0

14

Toro 71-7940

BLADE RETAINER - 25 MM

$

$

Not available

15

Toro 71-7960

Guide-Belt
(Superseded to 71-7960-03)

$

$

Not available

16

Toro 62-7550

PULLEY-DRIVE, ZONE START

$

$

Not available

17

Toro 56-6360

FILTER-FUEL

$6.49

$

In Stock, Qty 20+

0

Toro 75-9850

OIL DRAIN TUBE

$

$

Not available
