20916 B - Toro 48cm Rear Bagging Walk-Behind Mower (SN: 020000001 - 029999999) (1992) ENGINE ASSEMBLY (MODEL NO. 20916B) Parts Diagram

48cm Rear Bagging Walk-Behind Mower

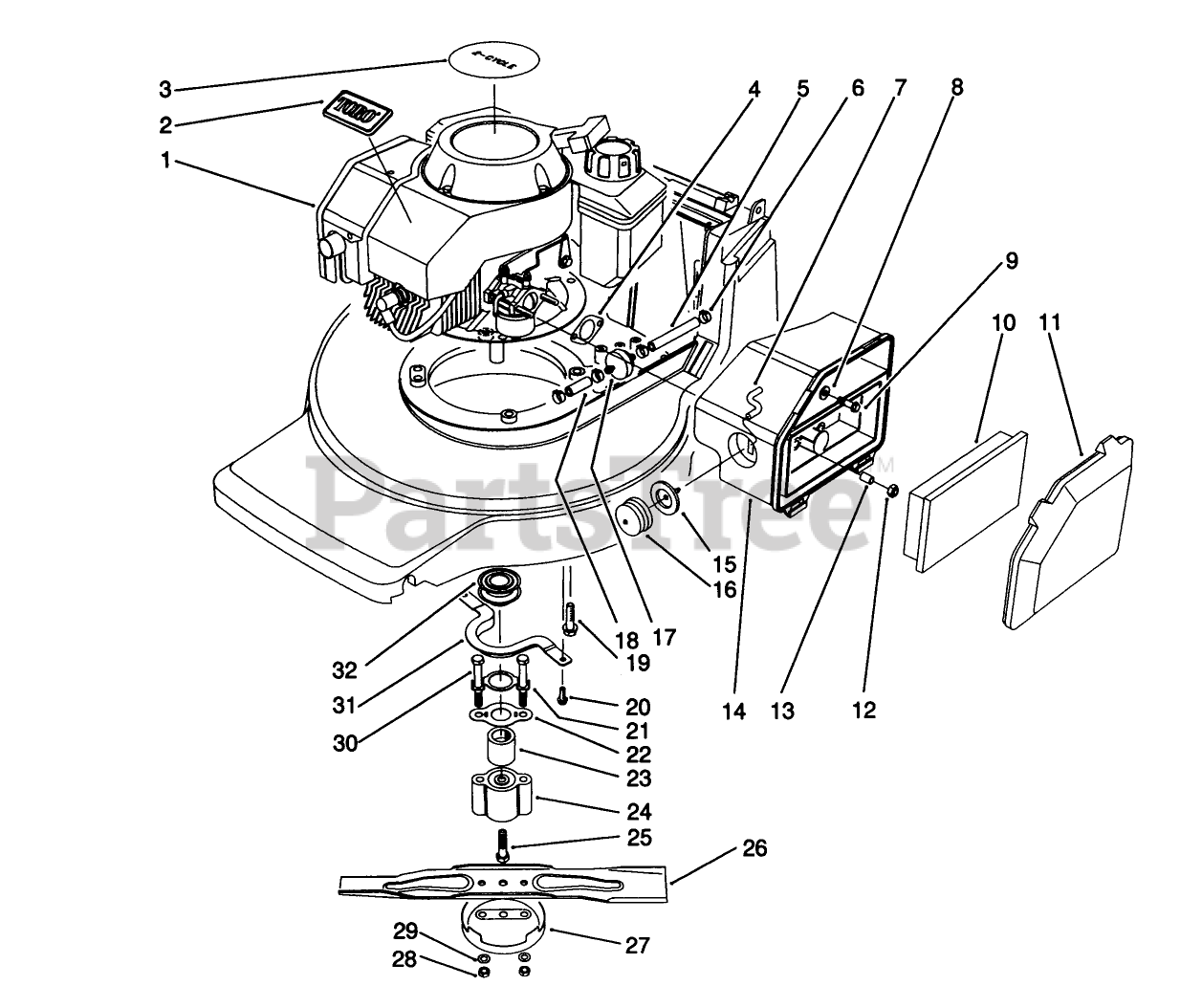

ENGINE ASSEMBLY (MODEL NO. 20916B) Parts Diagram

  • Title
1

Toro 77-2800

ENGINE 121CC INT'L 2CYC
(Superseded to 12-8099)

$

$

Not available

2

Toro 46-8290

TORO LOGO PLT
(Superseded to 98-3206)

$2.49

$

In Stock, only 2 left!

0

3

Toro 57-3110

DECAL- 2 CYC RECOIL

$

$

Not available

4

Toro 81-0090

GASKET-AIR CLEANER

$7.99

$

In Stock, only 3 left!

0

5

Toro 51-3215

HOSE-FUEL

$3.99

$

Usually ships in 3-6 days

0

6

Toro 2412-95

CLAMP-FUEL LINE

$1.99

$

In Stock, Qty 8

0

7

Toro 44-3172

HOSE-PRIMER

$6.49

$

In Stock, Qty 11

0

8

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

9

Toro 51-2690

SCREW-HH

$2.49

$

In Stock, only 4 left!

0

10

Toro 63-9380

ELEMENT-AIR CLEANER

$12.99

$

In Stock, Qty 8

0

11

Toro 63-9340

COVER-AIR CLEANER

$

$

Not available

12

$6.99

$

In Stock, only 3 left!

0

13

Toro 62-3980

SPACER

$2.99

$

Usually ships in 3-6 days

0

14

Toro 63-9330

BODY-AIR CLEANER

$

$

Not available

15

Toro 44-2750

BODY-PRIMER

$8.99

$

In Stock, Qty 20+

0

16

Toro 66-7460

BULB-PRIMER

$6.49

$

In Stock, Qty 20+

0

17

Toro 56-6360

FILTER-FUEL

$6.49

$

In Stock, Qty 20+

0

18

Toro 51-3216

HOSE-FUEL

$5.49

$

In Stock, only 4 left!

0

19

Toro 66-9301

Bolt-Engine
(Superseded to 3234-24)

$3.99

$

In Stock, Qty 18

0

20

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

21

Toro 71-9220

BLADE RETAINER BRKT

$6.49

$

Usually ships in 3-6 days

0

22

Toro 71-8840

SPRING FRICTION

$

$

Not available

23

$

$

Not available

24

Toro 71-8790

RETAINER

$

$

Not available

25

Toro 71-8950

SCREW - CRANKSHAFT

$9.99

$

Usually ships in 3-6 days

0

26

Toro 71-8210

Blade-48cm
(Superseded to 71-8210-03)

$90.99

$

Usually ships in 3-6 days

0

27

Toro 42-0910

Anti Scalp Cup
(Superseded to 80-2770)

$17.99

$

Usually ships in 3-6 days

0

28

Toro 52-3620

Nut
(Superseded to 32153-11)

$4.49

$

In Stock, Qty 15

0

29

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

30

Toro 71-8940

SCREW - BLADE

$7.99

$

Usually ships in 3-6 days

0

31

Toro 71-7960

Guide-Belt
(Superseded to 71-7960-03)

$

$

Not available

32

Toro 62-7550

PULLEY-DRIVE, ZONE START

$

$

Not available
