20914 - Toro 48cm Rear Bagging Walk-Behind Mower (SN: 079000001 - 079999999) (1997) GEAR CASE ASSEMBLY #71-9600 Parts Diagram

48cm Rear Bagging Walk-Behind Mower

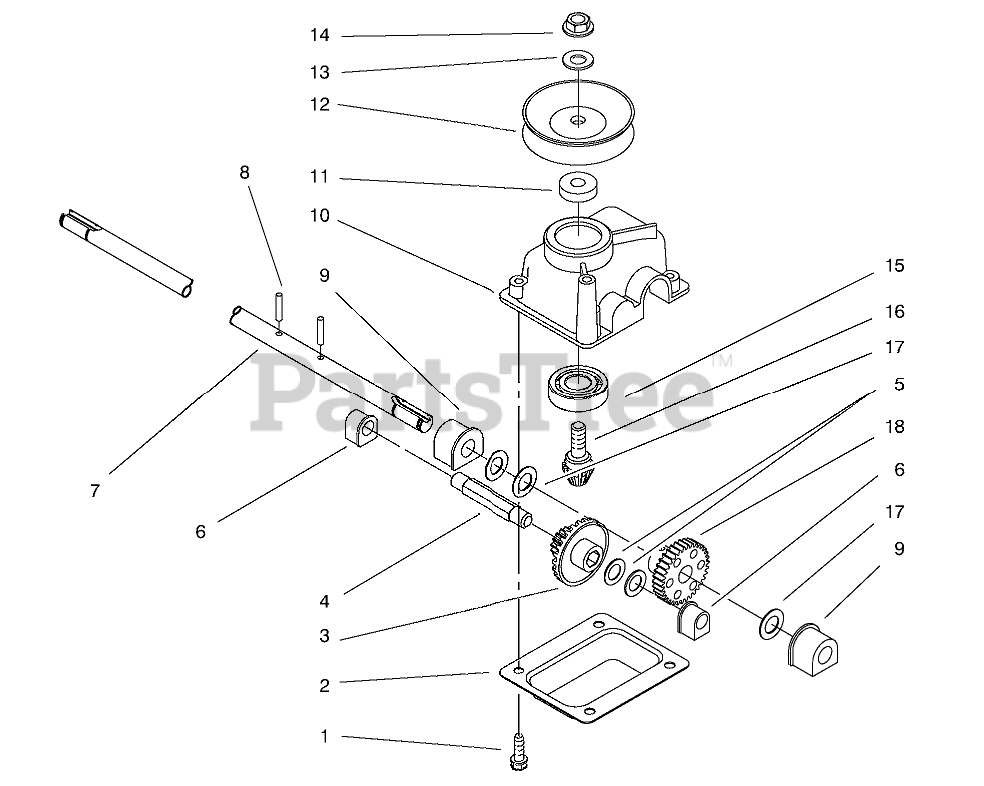

GEAR CASE ASSEMBLY #71-9600 Parts Diagram

  • Title

1

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

2

Toro 614668

Cover-Gear Case
(Superseded to 614668-03)

$9.49

$

Usually ships in 3-6 days

0

3

Toro 55-3760

Gear-Bevel
(Superseded to 104-7668)

$34.99

$

In Stock, Qty 15

0

4

Toro 614696

SHAFT-INTERMEDIATE

$108.99

$

Usually ships in 3-6 days

0

5

Toro 36-4791

WASHER-THRUST

$2.49

$

In Stock, Qty 20+

0

6

Toro 60-8750

BUSHING

$6.99

$

In Stock, Qty 10

0

7

Toro 71-9620

OUTPUT SHAFT

$

$

Not available

8

Toro 32121-114

SPIROL PIN H D

$2.49

$

Usually ships in 3-6 days

0

9

Toro 60-8850

BUSHING

$8.49

$

In Stock, Qty 20+

0

10

Toro 614578

GEARCASE

$

$

Not available

11

Toro 62-6660

SPACER

$0.99

$

In Stock, Qty 12

0

12

Toro 71-9610

PULLEY-DRIVEN HALF

$12.99

$

Usually ships in 3-6 days

0

13

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

15

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 20+

0

16

Toro 60-8890

Gear-Pinion
(Superseded to 104-7667)

$18.99

$

In Stock, Qty 10

0

17

Toro 36-4780

WASHER-PLAIN

$7.99

$

In Stock, Qty 20+

0

18

Toro 614596

GEAR

$54.99

$

In Stock, Qty 5

0

Toro 71-9600

GEAR CASE ASSY

Note: Not illustrated

$

$

Not available
