20914 - Toro 48cm Rear Bagging Walk-Behind Mower (SN: 079000001 - 079999999) (1997) ENGINE BRIGGS & STRATTON MODEL 12F802-0667-01 Parts Diagram

48cm Rear Bagging Walk-Behind Mower

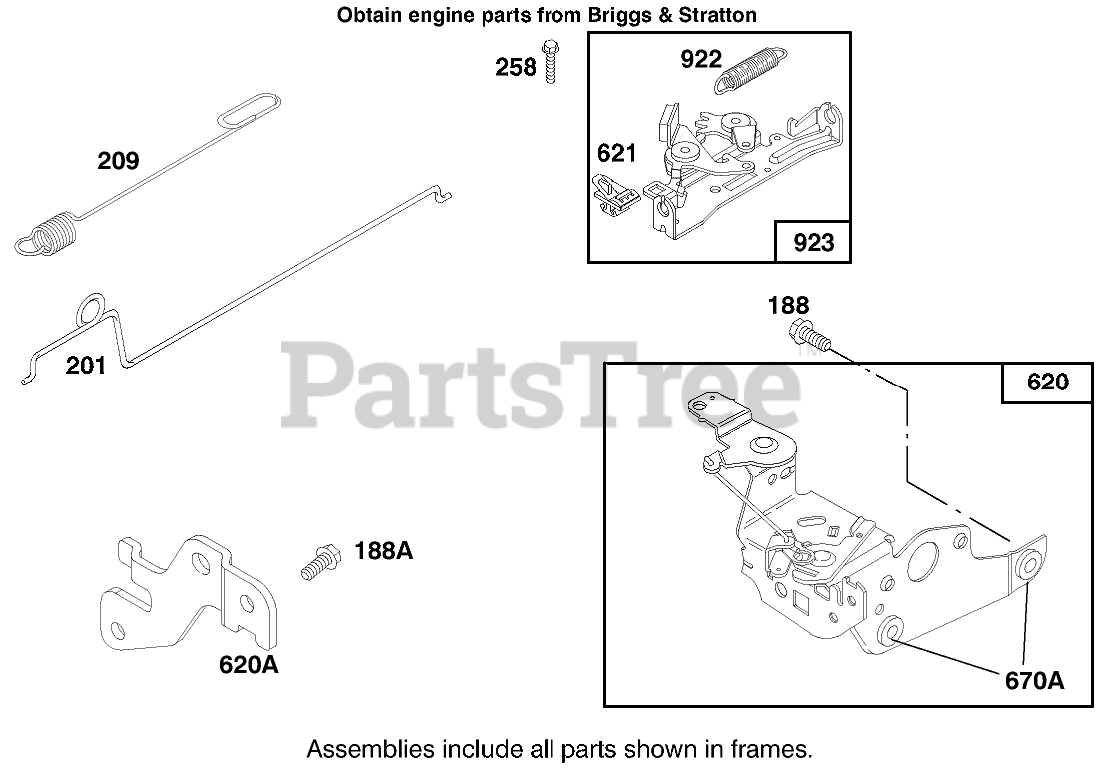

ENGINE BRIGGS & STRATTON MODEL 12F802-0667-01 Parts Diagram

  • Title

K12

Briggs & Stratton 272198

Gasket
(Superseded to 692232)

$5.99

$

In Stock, Qty 20+

0

K3

Briggs & Stratton 299819

Seal-Oil
(Superseded to 299819S)

$5.49

$

In Stock, Qty 16

0

188

Briggs & Stratton 94644

Screw-Hex.
(Superseded to 690877)

$3.99

$

In Stock, only 3 left!

0

188A

Briggs & Stratton 94602

Screw-Hex.
(Superseded to 690664)

$5.49

$

In Stock, only 1 left!

0

188

Briggs & Stratton 398540

Screw-Shoulder
(Superseded to 692311)

$7.49

$

In Stock, only 1 left!

0

201

Briggs & Stratton 262579

Link-Govemor
(Superseded to 691829)

$8.49

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 263046

Spring-Governor
(Superseded to 691292)

$8.49

$

Usually ships in 2-12 days

0

258

Briggs & Stratton 94512

Screw-Sem
(Superseded to 691648)

$4.99

$

Usually ships in 2-12 days

0

620

Briggs & Stratton 497203

Bracket-Carburetor
(Superseded to 790143)

$44.99

$

Usually ships in 2-12 days

0

620A

Briggs & Stratton 225152

"U" Bracket
(Superseded to 691223)

$14.99

$

In Stock, only 1 left!

0

621

Briggs & Stratton 396847

Switch
(Superseded to 692310)

$5.99

$

In Stock, Qty 20+

0

670A

Briggs & Stratton 493823

Spacer

$6.49

$

In Stock, only 1 left!

0

922

Briggs & Stratton 262640

Brake Spring
(Superseded to 691831)

$10.99

$

In Stock, only 2 left!

0

923

Briggs & Stratton 493442

Brake
(Superseded to 796387)

$

$

Not available
